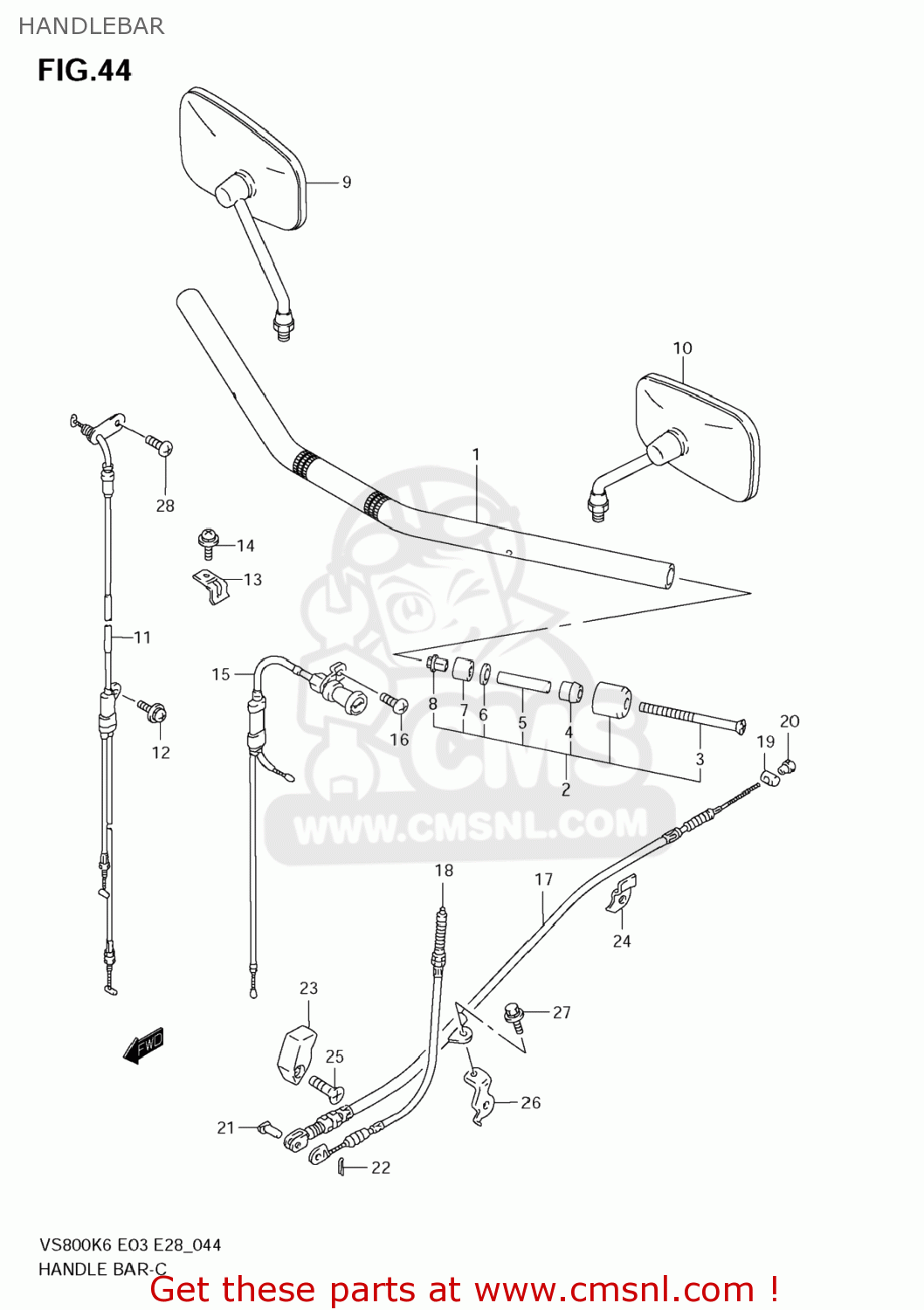

HANDLEBAR

ref

part #

description

quantity

1

5611139A00
ref: 1

HANDLEBAR

€ 331.50

2

5620048861
ref: 2

BALANCER SET,HANDLEBAR

€ 48.50

3

0912706019
ref: 3

SCREW(6X110)

€ 4.50

4

5627226D01
ref: 4

EXPANDER,HANDLE BALANCER NO.2

€ 5.00

5

5627617D00
ref: 5

SPACER,EXPANDER

€ 2.50

6

0916006131
ref: 6

WASHER(6.5X16X4)

€ 2.50

7

5627210G10
ref: 7

EXPANDER,HANDLE BALANCER

€ 3.00

8

5627310G10
ref: 8

NUT,HANDLE BALANCER

€ 6.50

9-1

5650045C40
ref: 9-1
56500-45C41

MIRROR ASSY, REAR VIEW RH

€ 28.50

9-2

5650045C41
ref: 9-2

MIRROR ASSY,RR VIEW,R

€ 28.50

10-1

5660045C40
ref: 10-1

MIRROR ASSY,RH

€ 103.50

10-2

5660045C41
ref: 10-2

MIRROR ASSY,RR VIEW,L

€ 103.50

11

5830039A00
ref: 11

CABLE ASSY,THROTTLE

€ 0.00

12

021127512B
ref: 12

SCREW

€ 2.00

13

5862138A00
ref: 13

CLAMP,THROTTLE CABLE

€ 6.00

14

021127512B
ref: 14

SCREW

€ 2.00

15

5840038A14
ref: 15

CABLE ASSY,STARTER

€ 65.50

16

021420610B
ref: 16

SCREW

€ 2.00

17

5851038A01
ref: 17

CABLE,RR BRAKE

€ 123.50

18

5883038A00
ref: 18

CABLE,STOP LAMP SWITCH

€ 33.50

19

0920913018
ref: 19

PIN(13X18)

€ 3.50

20

0915006010
ref: 20

NUT

€ 3.50

21

0920005001
ref: 21

PIN(L:17.5)

€ 1.50

22

041112015A
ref: 22

PIN

€ 1.50

23

5863138A00
ref: 23

GUIDE,RR BRAKE CABLE

€ 6.00

24

5872138A00
ref: 24

CLAMP,RR BRAKE CABLE

€ 6.50

25

021220620B
ref: 25

SCREW

€ 2.00

26

4327538A00
ref: 26

BRACKET,RR BRAKE CABLE

€ 10.00

27

015800616B
ref: 27

BOLT

€ 3.00

28

0913905033
ref: 28

SCREW(5X10)

€ 2.00

all assemblies
