MUFFLER

VS800 BOULEVARD S50 2009 (K9) CALIFORNIA (E33)

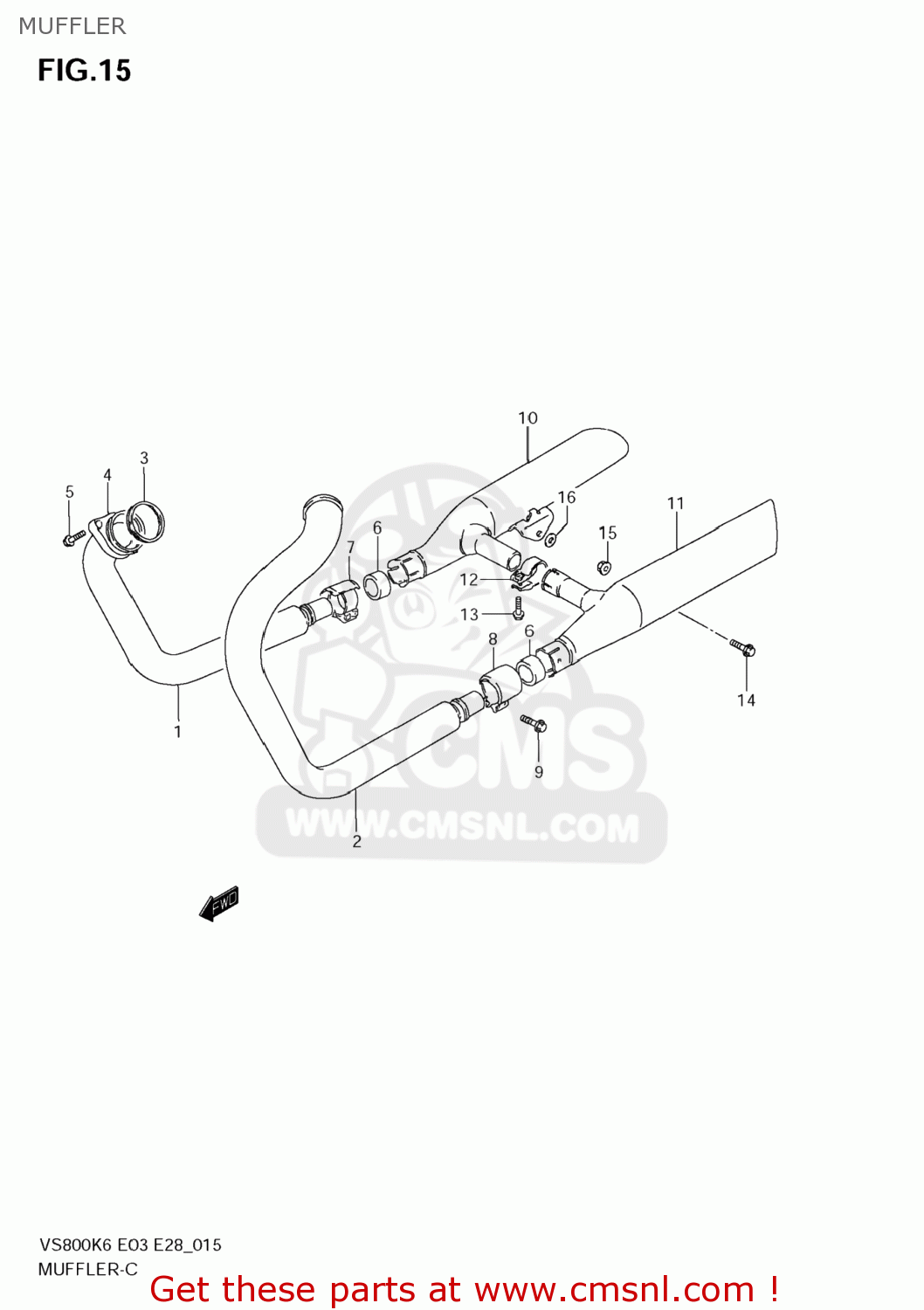

Muffler diagram VS800 BOULEVARD S50 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1415038A01
ref: 1

PIPE,EXHAUST,R

€ 193.50

1416038A02
ref: 2

PIPE,EXHAUST,L

€ 202.00

1418145C00
ref: 3

GASKET,EXHAUST PIPE (NAS)

€ 6.50

1418238A02
ref: 4

CLAMP,EXHAUST PIPE

€ 21.00

0910408026
ref: 5

BOLT(8X35)

€ 4.00

1477130E00
ref: 6

CONNECTOR,EXHAUST PIPE

€ 13.50

1445938A00
ref: 7

CLAMP,MUFFLER CONNECTOR,R

€ 10.00

1446938A00
ref: 8

CLAMP,MUFFLER CONNECTOR,L

€ 10.00

015470630B
ref: 9

BOLT

€ 3.00

1431038A90H01
ref: 10

BODY,MUFFLER,R

€ 322.50

1434038A90H01
ref: 11

BODY,MUFFLER,L

€ 319.50

1477238B00
ref: 12

CLAMP,EXHAUST COUPLER

€ 6.00

015500625B
ref: 13

BOLT

€ 2.50

0155008307
ref: 14

BOLT

€ 3.50

083193108B
ref: 15

NUT

€ 2.50

0916008122
ref: 16

WASHER(8.5X18X3.20)

€ 2.00
