Buy Suzuki VS Parts Online


CANISTER (MODEL K1/K2/K3/K4 E33)

VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)

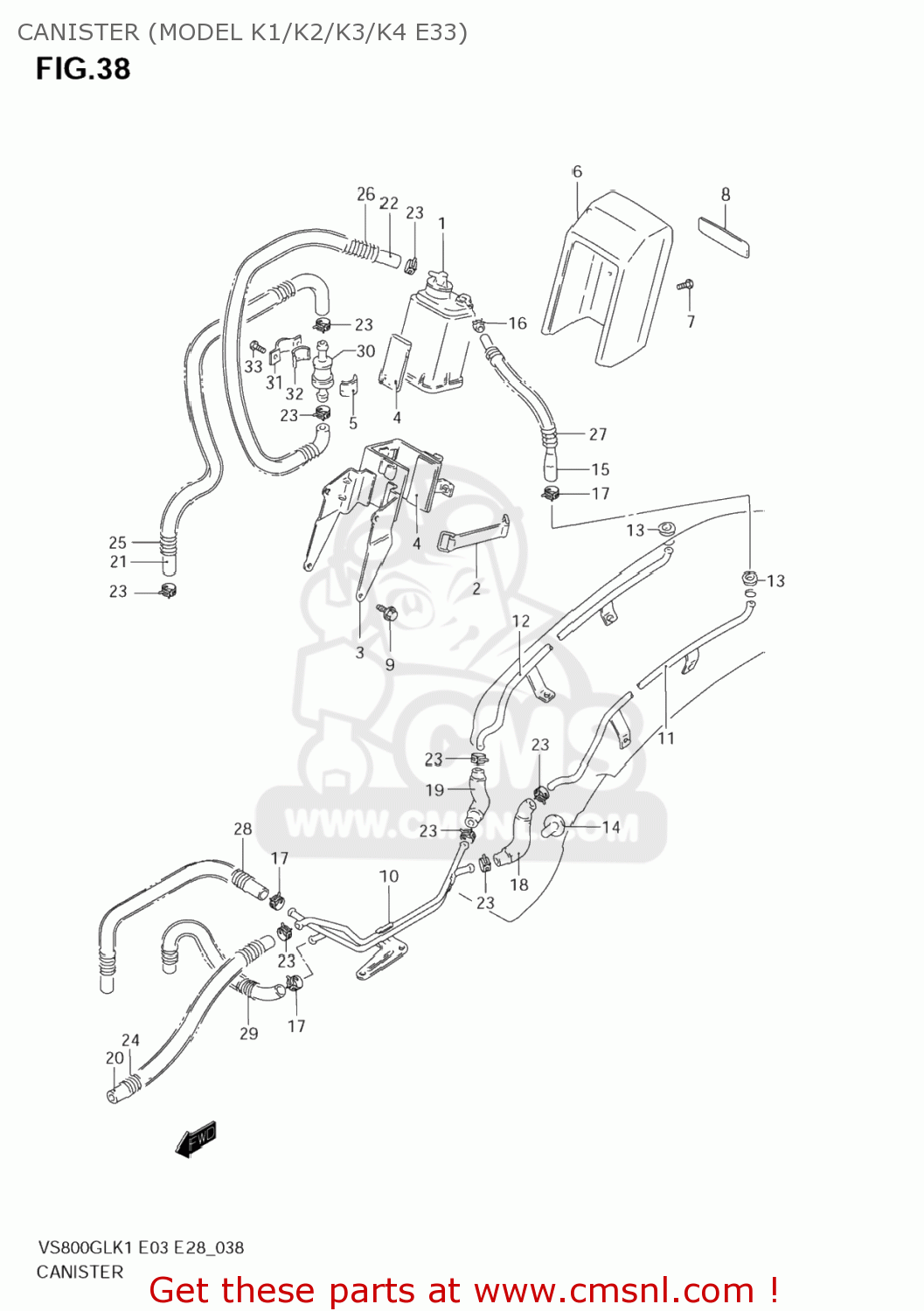

Canister (model k1/k2/k3/k4 e33) diagram VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)

CANISTER (MODEL K1/K2/K3/K4 E33) VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)
CANISTER (MODEL K1/K2/K3/K4 E33) VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)
CANISTER (MODEL K1/K2/K3/K4 E33) VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
1721038A00
ref: 1
CANISTER ASSY,CHARCOAL
€ 0.00
2
0946200034
ref: 2
BAND
0946200034
€ 4.50
3
4488038A12
ref: 3
PLATE,CANISTER FITING
€ 31.00
4
4488538A00
ref: 4
CUSHION
4488538A00
€ 3.00
5
4489424A00
ref: 5
CUSHION
4489424A00
€ 1.50
6
4499138A10
ref: 6
COVER,CANISTER
€ 120.50
7
0212205123
ref: 7
02122-0512A
SCREW
€ 2.00
8
6826138A30
ref: 8
EMBLEM,TOOL HOLDER RR
6826138A30
€ 31.00
9
0154706167
ref: 9
BOLT
0154706167
€ 2.00
10
4494038A00
ref: 10
PIPE,CSTR JOINT FR
€ 67.50
11
4495038A10
ref: 11
(CA) PIPE,CANISTER JOINT REAR
€ 46.50
12
4496038A10
ref: 12
(CA) PIPE,CANISTER JOINT REAR
€ 46.50
13
0930805020
ref: 13
GROMMET
€ 2.50
14
0930805004
ref: 14
GROMMET
€ 2.00
15
4491143500
ref: 15
HOSE,PURGE NO.1
€ 3.00
16
0940106405
ref: 16
CLIP
0940106405
€ 2.00
17
0940108411
ref: 17
CLIP
0940108411
€ 3.00
18
4434038A00
ref: 18
(CA) HOSE NO.6
€ 0.00
19
4433038A00
ref: 19
(CA) HOSE NO.2
€ 0.00
20
0935554116600
ref: 20
HOSE(5.4X11.4X600)
0935554116600
€ 12.00
21
0934305414
ref: 21
HOSE
€ 3.50
22
0934305414
ref: 22
HOSE
€ 3.50
23
0940111413
ref: 23
CLIP
0940111413
€ 2.50
24
0944013043
ref: 24
SPRING
0944013043
€ 14.50
25
0944013044
ref: 25
(CA) SPRING
€ 7.00
26
0944013043
ref: 26
SPRING
0944013043
€ 14.50
27
0944010031
ref: 27
SPRING
€ 0.00
28
0944010022
ref: 28
SPRING
€ 4.50
29
0944010019
ref: 29
SPRING
0944010019
€ 4.00
30
4424038A00
ref: 30
VALVE,FUEL TANK BREATHER
4424038A00
€ 35.00
31
4489224A00
ref: 31
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
32
4489424A00
ref: 32
CUSHION
4489424A00
€ 1.50
33
0214204103
ref: 33
02142-0410A
SCREW
0214204103
€ 1.50
