STARTING MOTOR

VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)

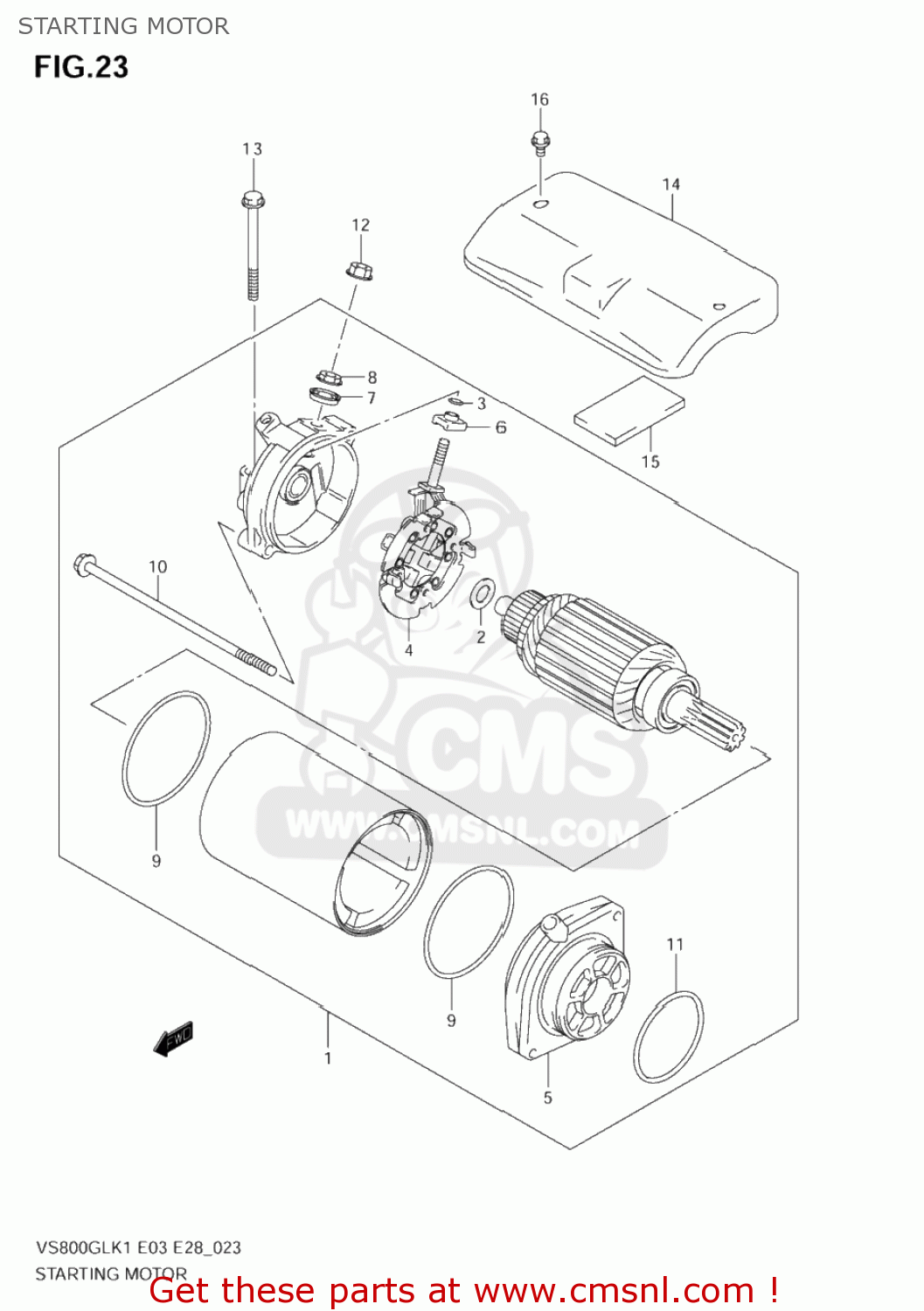

Starting motor diagram VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

3110045C01
ref: 1

MOTOR ASSY,STARTING

€ 472.00

3117043400
ref: 2

SHIM SET,STARTING MOTOR

€ 3.50

3114338300
ref: 3

O RING

€ 3.50

3113245C00
ref: 4

HOLDER SET,BRUSH

€ 46.00

3115038A00
ref: 5

BRACKET SET

€ 79.50

3117238300
ref: 6

BUSHING

€ 4.00

3117388C00
ref: 7

BUSHING

€ 6.00

0831000067
ref: 8

NUT

€ 2.50

3126444110
ref: 9

O RING

€ 8.00

3128124B10
ref: 10

BOLT

€ 5.00

3115638A00
ref: 11

O RING

€ 8.00

0836135068
ref: 12
08361-3506A

NUT

€ 2.00

0154706603
ref: 13
01547-0660B

BOLT

€ 3.50

3121038A01
ref: 14

COVER,STARTER MOTOR

€ 22.00

3121238A10
ref: 15

DAMPER,MOTOR COVER

€ 4.50

0154705087
ref: 16

BOLT

€ 2.00
