SECONDARY DRIVE GEAR

VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)

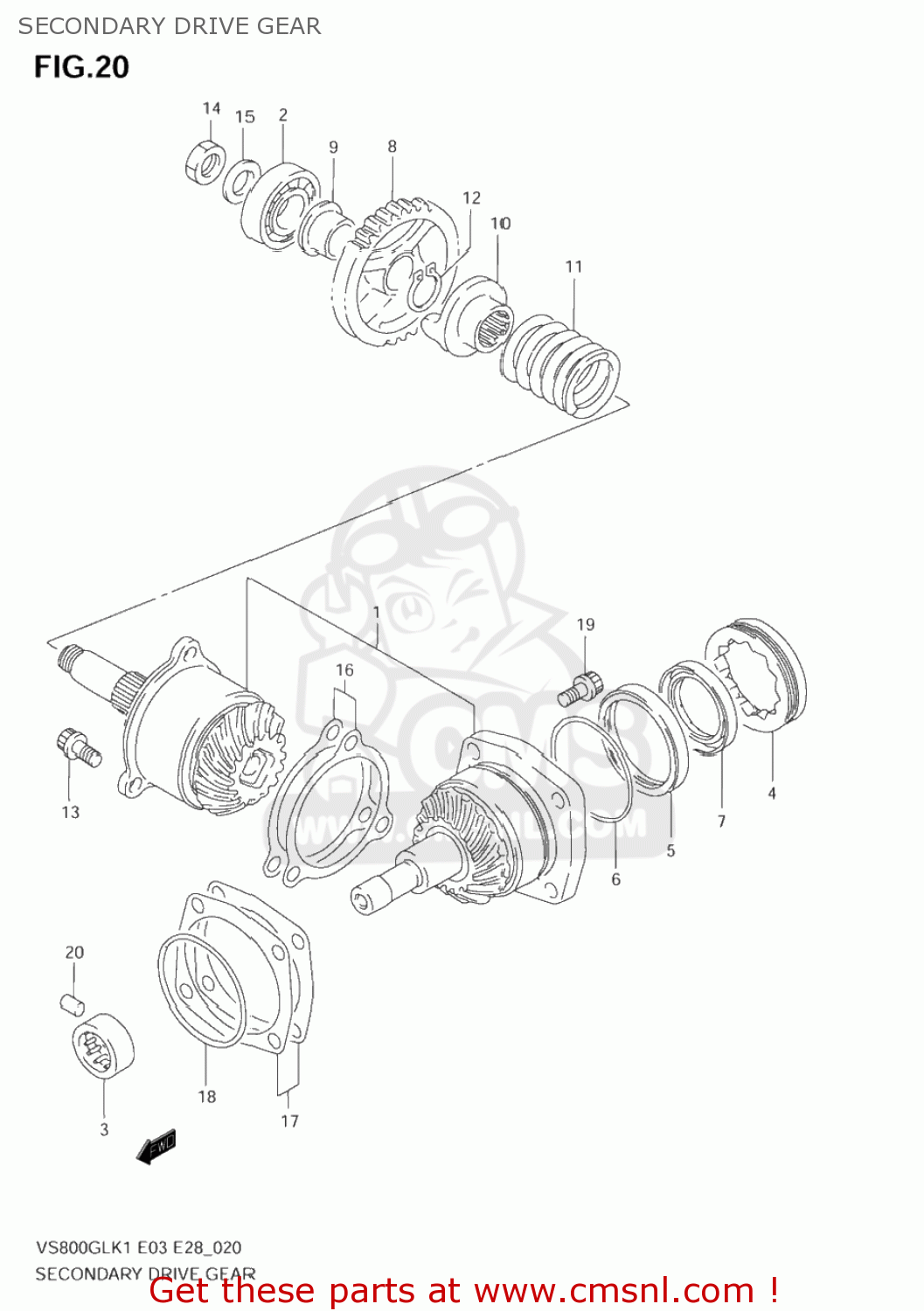

Secondary drive gear diagram VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)

SECONDARY DRIVE GEAR VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)

SECONDARY DRIVE GEAR VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

2490038822
ref: 1

GEAR & HOUSING SET,SECONDARY

€ 1,238.50

2

0926220073
ref: 2

BEARING(20X52X15)

€ 19.00

3

0926320038
ref: 3

BEARING(20X34X16)

€ 30.50

4

2494238A50
ref: 4

STOPPER,SEC DRIVEN BEARING

€ 34.50

5

2494338A50
ref: 5

HOUSING,OIL SEAL

€ 54.50

6

0928060003
ref: 6

O RING(D:1.2,ID:59.6)

€ 2.00

7

0928338016
ref: 7

SEAL,OIL(38X54X8.5)

€ 12.00

8

2463138A00
ref: 8

GEAR,REDUCTION DRIVEN(NT:30)

€ 95.50

9

2463238A00
ref: 9

BUSH,REDUCTION DRIVEN GEAR

€ 13.00

10

2492238A00
ref: 10

DOG,OUTPUT CAM

€ 42.00

11

0944044002
ref: 11

SPRING

€ 15.50

12

0833131216
ref: 12
08331-3121A

CIRCLIP

€ 2.00

13

0713008253
ref: 13
07130-0825B

BOLT

€ 3.50

14

0914016001
ref: 14

NUT

€ 4.50

15

0916016029
ref: 15

WASHER(16X29X4)

€ 6.00

16

2493538810
ref: 16

SHIM SET,SEC DRIVE GEAR

€ 17.00

17

2494505810
ref: 17

SHIM SET,SEC DRIVEN HOUSING

€ 20.00

18

0928067004
ref: 18

O RING(D:2.1,ID:66.2)

€ 2.50

19

0713008253
ref: 19
07130-0825B

BOLT

€ 3.50

20

0422107129
ref: 20

PIN

€ 1.50
