CANISTER (MODEL K5 E33)

VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)

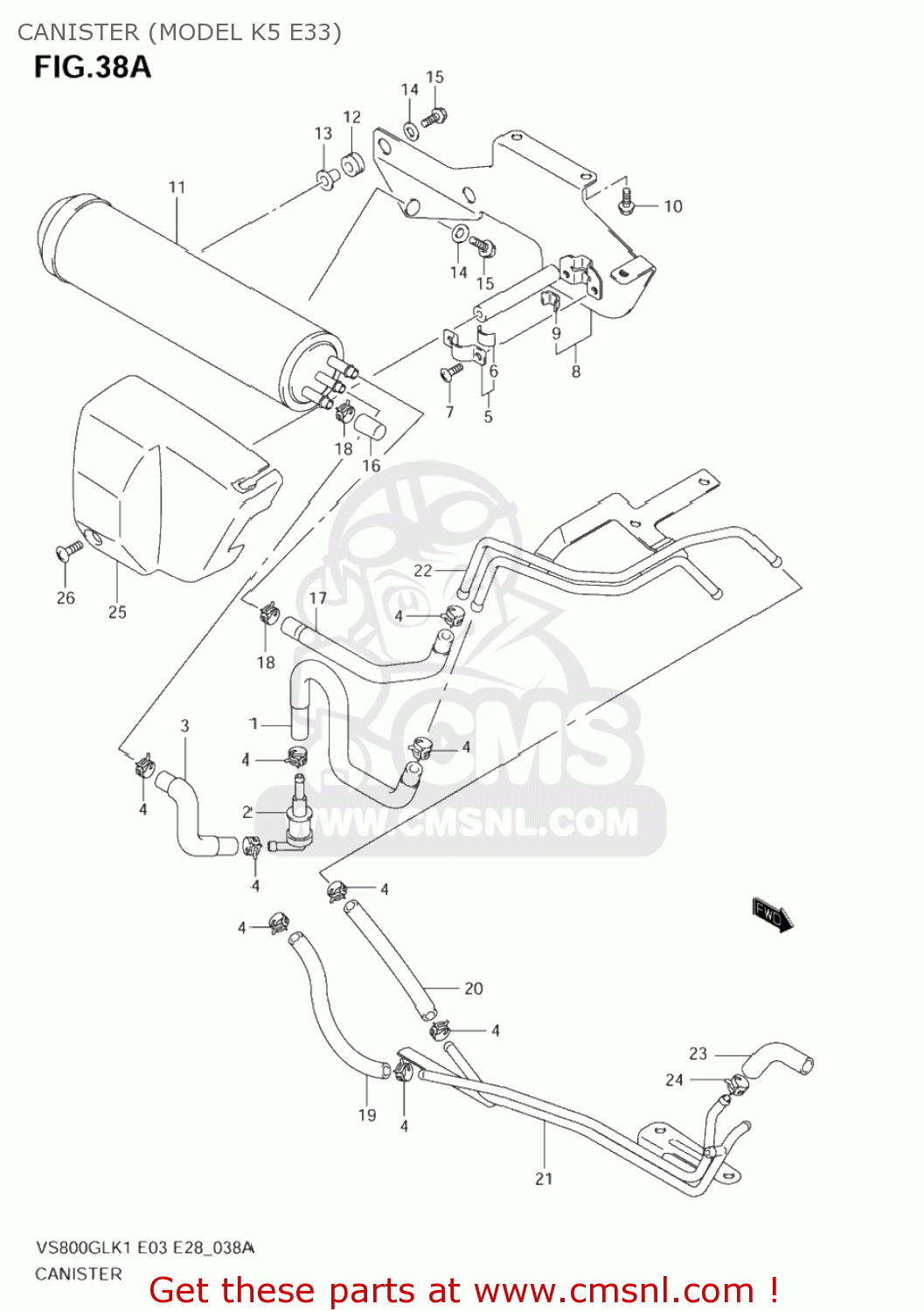

Canister (model k5 e33) diagram VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)

CANISTER (MODEL K5 E33) VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)

CANISTER (MODEL K5 E33) VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

4443438A20
ref: 1

HOSE,TANK & BREATHER VALVE

€ 0.00

2

4424017C00
ref: 2

VALVE,FUEL TANK BREATHER

€ 40.00

3

4443538A20
ref: 3

HOSE,CSTR & BREATHER VALVE

€ 0.00

4

0940111413
ref: 4

CLIP

€ 2.50

5

4489224A00
ref: 5

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

6

4489424A00
ref: 6

CUSHION

€ 1.50

7

0214204083
ref: 7
02142-0408B

SCREW

€ 1.50

8

4488038A20
ref: 8

BRACKET,CANISTER

€ 0.00

9

4489424A00
ref: 9

CUSHION

€ 1.50

10

0155006163
ref: 10
01550-0616A

BOLT

€ 2.50

11

1720038A10
ref: 11

CANISTER SET

€ 0.00

12

0932008001
ref: 12

CUSHION

€ 3.50

13

0916906070
ref: 13

WASHER

€ 3.50

14

0916006037
ref: 14

WASHER(6.5X16X3.2)

€ 2.50

15

0155006203
ref: 15
01550-0620A

BOLT

€ 2.50

16

0925107003
ref: 16

CAP,OD:11.5

€ 2.00

17

4443638A20
ref: 17

HOSE,CSTR PURGE

€ 0.00

18

0940112404
ref: 18

CLIP

€ 2.50

19

4443238A20
ref: 19

HOSE,EVAP SYSTEM SURGE

€ 0.00

20

4443338A20
ref: 20

HOSE,EVAP SYSTEM PURGE

€ 0.00

21

4494038A00
ref: 21

PIPE,CSTR JOINT FR

€ 67.50

22

4495038A20
ref: 22

PIPE,CSTR JOINT RR

€ 0.00

23

0935554116600
ref: 23

HOSE(5.4X11.4X600)

€ 12.00

24

0940108411
ref: 24

CLIP

€ 3.00

25

4499138A20
ref: 25

COVER,BREATHER VALVE

€ 0.00

26

0913905064
ref: 26

SCREW(5X13)

€ 2.50
