HEADLAMP

VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)

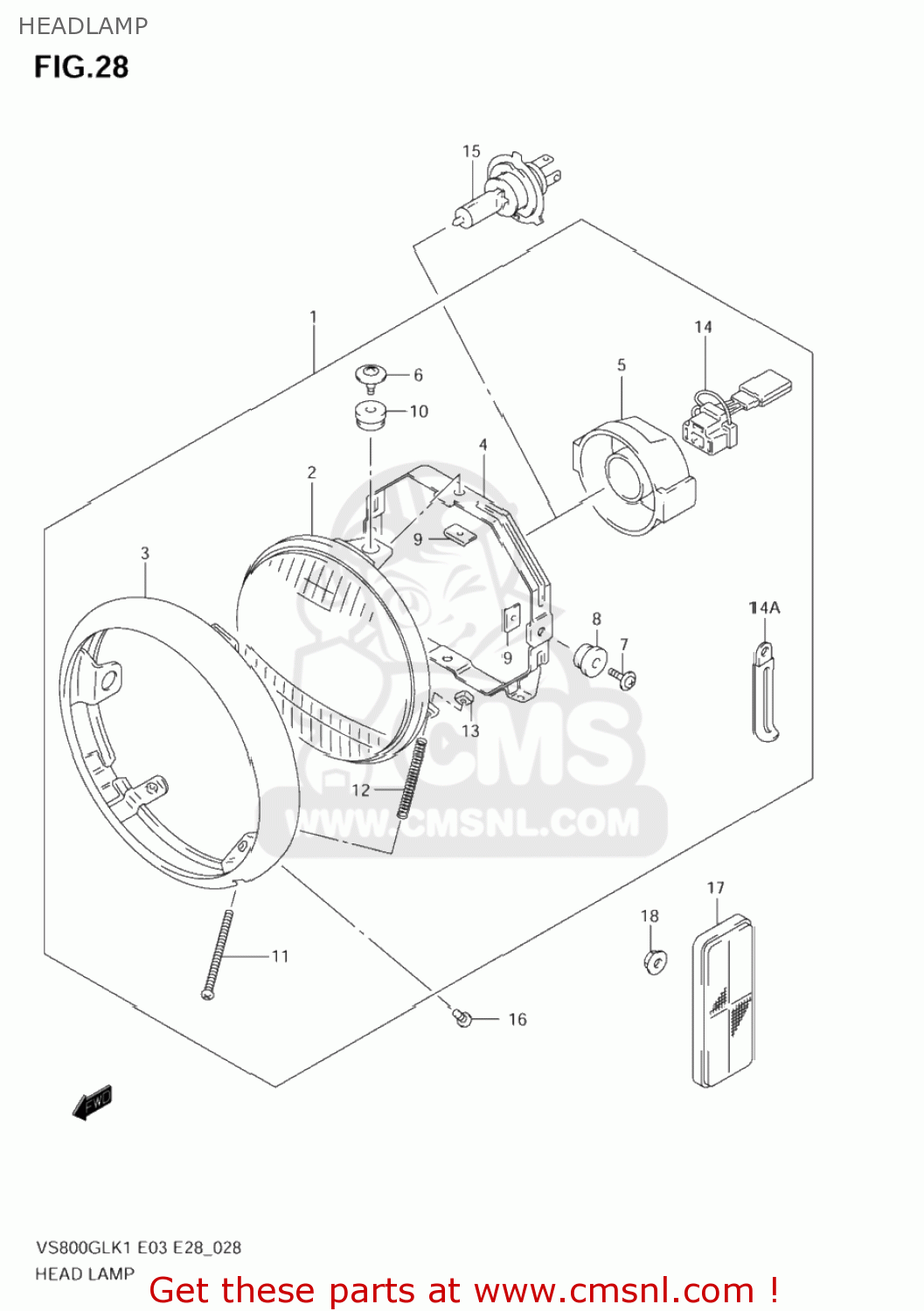

Headlamp diagram VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)

HEADLAMP VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)
HEADLAMP VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)
HEADLAMP VS800GL BOULEVARD S50 2005 (K5) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1-1
3510038A60999
ref: 1-1
35100-38A61-999
HEADLAMP ASSEMBLY
€ 236.00
1-2
3510038A61999
ref: 1-2
HEADLAMP ASSY
€ 236.00
2
3512138A60
ref: 2
UNIT,LAMP
€ 114.00
3
3511138A60
ref: 3
RIM
€ 24.00
4
3513038A00
ref: 4
RING,MOUNTING
3513038A00
€ 15.00
5
3517313E10
ref: 5
COVER
€ 12.50
6
3513638A60
ref: 6
SCREW
€ 3.50
7
3513638A00
ref: 7
SCREW,MOUNTING
3513638A00
€ 2.50
8
3513945230
ref: 8
CUSHION
3513945230
€ 1.50
9
3515538A60
ref: 9
NUT
€ 3.50
10
3513938A60
ref: 10
CUSHION
€ 2.50
11
3515138A00
ref: 11
SCREW,ADJUSTING(4X50)
3515138A00
€ 2.50
12
3515431300
ref: 12
SPRING
3515431300
€ 2.00
13
3515245600
ref: 13
NUT,HEADLAMP ADJUST
3515245600
€ 3.00
14
3685338A00
ref: 14
SOCKET
3685338A00
€ 10.00
14A
0940406432
ref: 14A
CLAMP(L:65)
0940406432
€ 2.50
15
0947112060
ref: 15
BULB(12V60/55W,H4)
0947112060
€ 8.00
16
0214205127
ref: 16
SCREW
0214205127
€ 1.50
17
3595043431
ref: 17
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
18
0831000053
ref: 18
08310-0005A
NUT
€ 2.50
