CLUTCH CYLINDER

VS800GL INTRUDER 1994 (R) USA (E03)

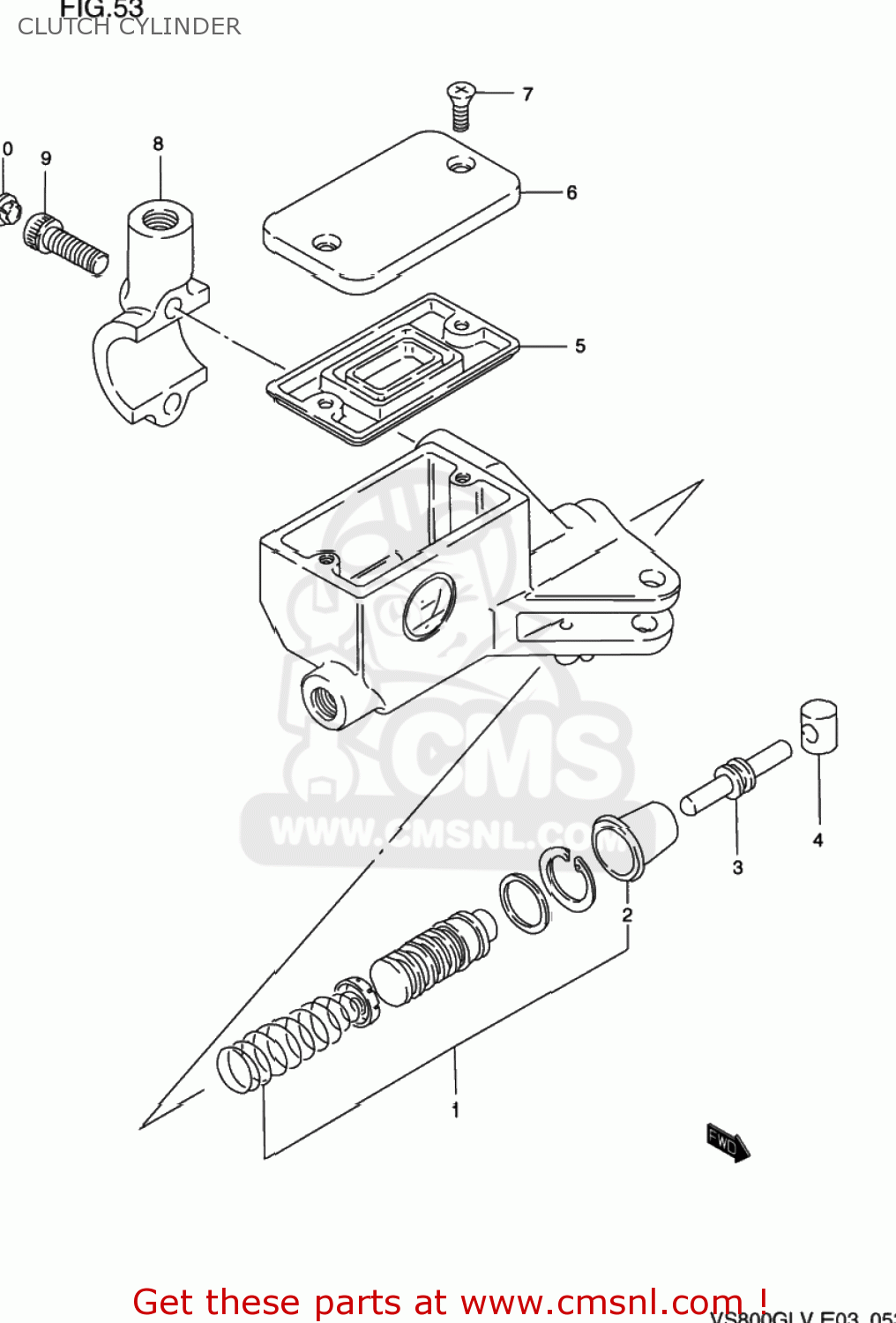

Clutch cylinder diagram VS800GL INTRUDER 1994 (R) USA (E03)

CLUTCH CYLINDER VS800GL INTRUDER 1994 (R) USA (E03)

CLUTCH CYLINDER VS800GL INTRUDER 1994 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity



5980039A20
ref:

CYLINDER ASSEMBLY,CLUTCH MASTER

€ 421.00

1

5980008810
ref: 1

PISTON & CUP SET

€ 36.50

2

5966644300
ref: 2

BOOT

€ 6.00

3

5987138A00
ref: 3

PUSH ROD

€ 6.50

4

5989208A00
ref: 4

BUSH

€ 5.50

5

5966749460
ref: 5

5966749460

6

5966924B00
ref: 6

CAP

€ 59.00

7

0212204127
ref: 7

SCREW

€ 2.00

8

5967138A00
ref: 8

HOLDER

€ 37.50

9

0713006207
ref: 9

BOLT

€ 3.50

10

0925005008
ref: 10

CAP(OD:10)

€ 5.00
