prices are in EUR
ref
part #
description
quantity

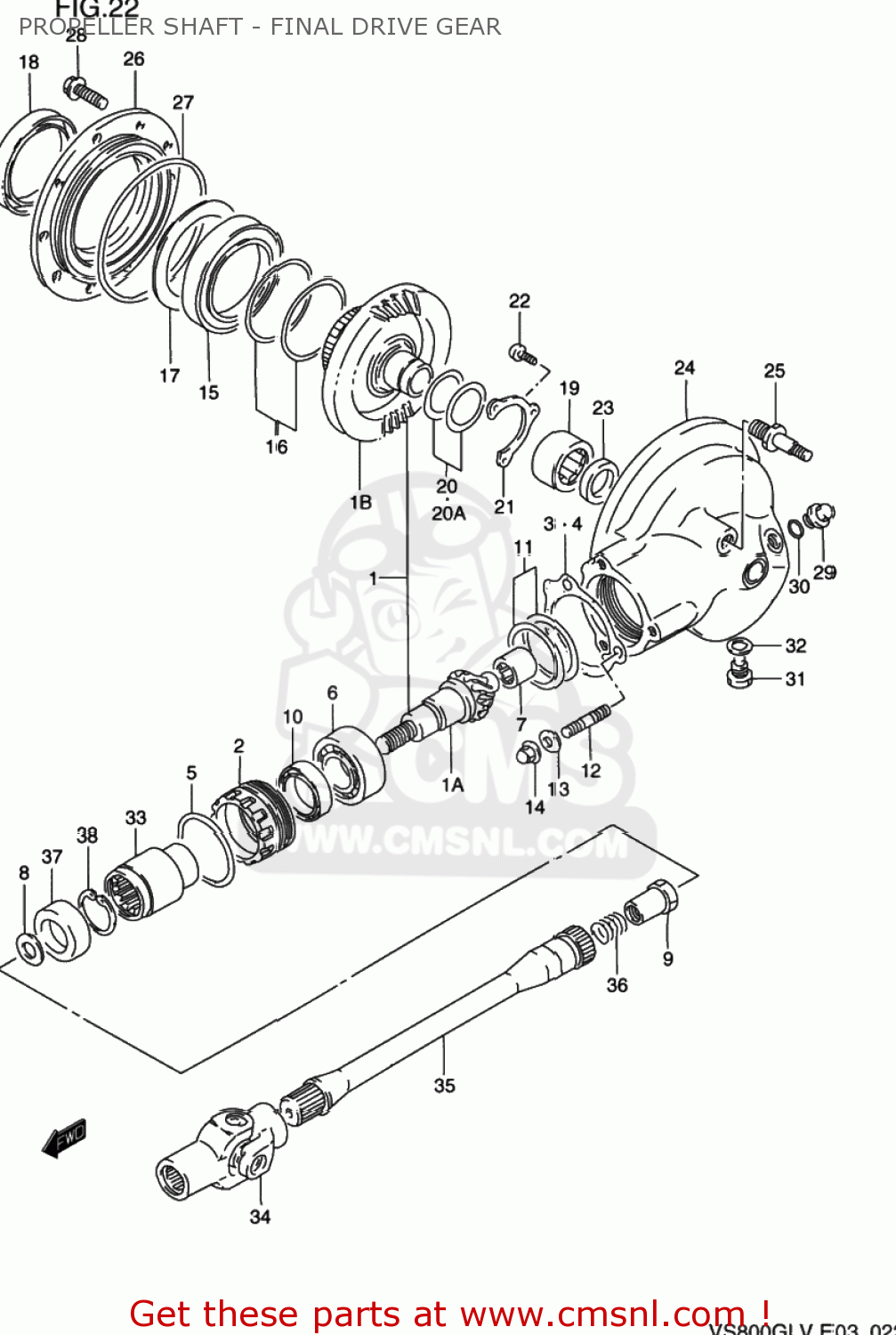

GEAR & CASE SET,FINAL BEVEL
1
GEAR & CASE SET,FINAL BEVEL
1
GEAR & CASE SET,FINAL BEVEL
1A
GEAR,FINAL DRIVE BEVEL(NT:11)
1B
GEAR,FINAL DRIVEN BEVEL(NT:34)
2
STOPPER,FINAL DRIVE BEARING
3
PLATE,BEARING STOPPER
4
PLATE,BEARING STOPPER
5
O RING(D:1.9,ID:61.6)
7
BEARING(17X32X16)
8
WASHER(16X29X4)
9
NUT
10
SEAL,OIL(38X54X6)
11
SHIM SET,FINAL DRIVE GEAR
12
BOLT,STUD
13
WASHER
14
NUT
15
BEARING(70X110X13)
16
SHIM SET,DRIVEN GEAR BEARING
17
PLATE,FINAL DRIVEN BRG OIL
18
SEAL,OIL(70X96X16)
19
BEARING(32X46X17.7)
20
SHIM SET,FINAL DRIVEN GEAR
20A
SHIM SET,FINAL DRIVE GEAR
21
RETAINER,FINAL DRIVEN GEAR BRG
22-1
SCREW 6X12
22-2
SCREW
23
SEAL,OIL(30X42X7)
24
CASE,FINAL
25
BOLT,STUD
26
CASE,FINAL GEAR BEARING
27
O RING(D:3.5,ID:131.6)
28-1
BOLT
28-2
BOLT
29
PLUG
30
O RING(D:2.4,ID:17.8)
31-2
PLUG
32-1
GASKET(14X19.2X2) (NAS)
32-2
GASKET(13.8X18.8X4.8) (NAS)
33
COUPLING,FINAL DRIVE GEAR
34
YOKE COMP,UNIVERSAL JOINT
35
SHAFT,PROPELLER
36
SPRING
37
SEAL,OIL(28.4X48X15)
38
CIRCLIP
