GEAR SHIFTING
VS800GL INTRUDER 1994 (R) USA (E03)

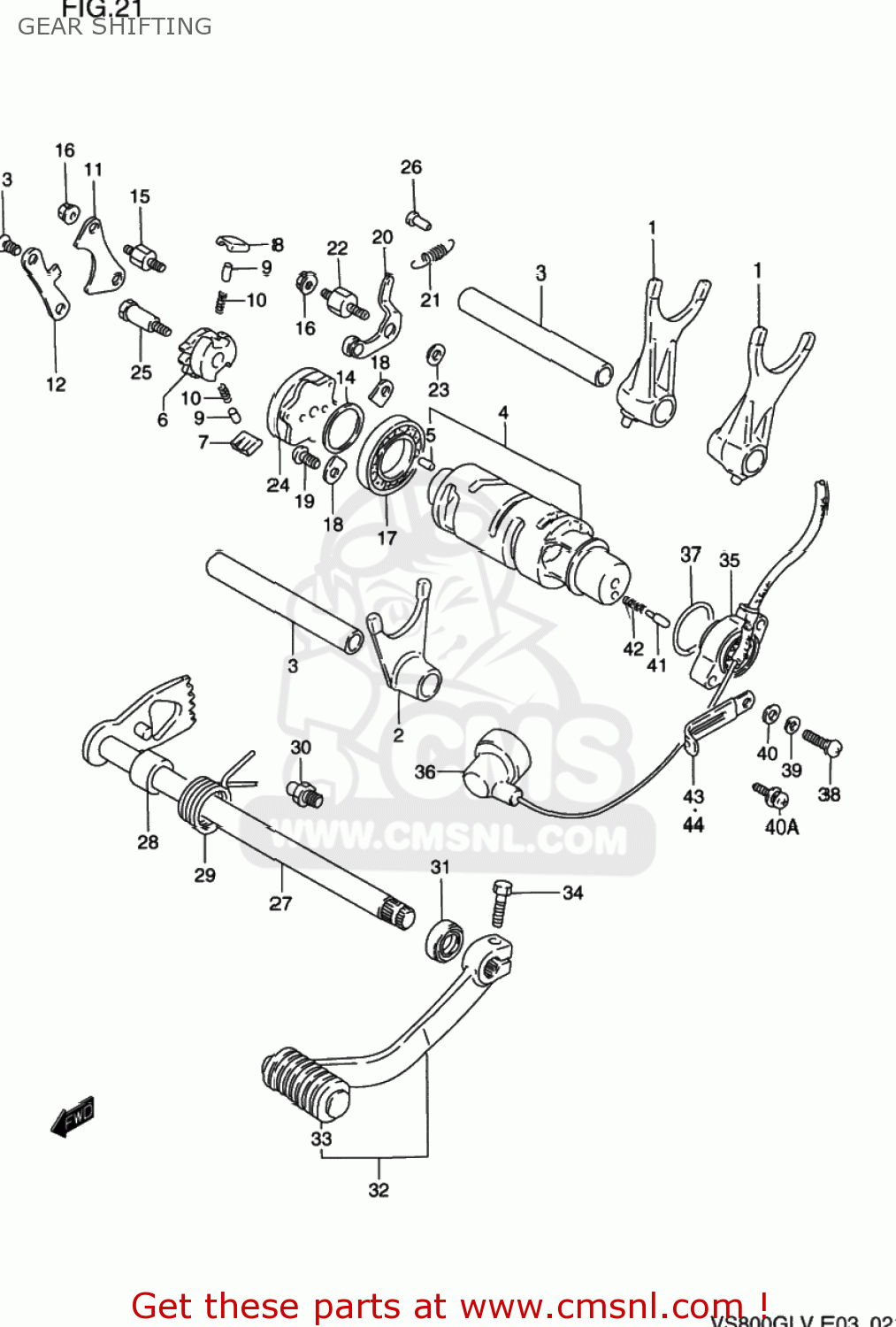

Gear shifting diagram VS800GL INTRUDER 1994 (R) USA (E03)
GEAR SHIFTING VS800GL INTRUDER 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521138A02
ref: 1
FORK,GEAR SHIFT NO.1
€ 94.00
2
2522138A01
ref: 2
FORK,GEAR SHIFT NO.2
€ 79.00
3
2541138A00
ref: 3
SHAFT,GEAR SHIFT FORK(L:115)
€ 17.00
4
2531038A03
ref: 4
CAM,GEAR SHIFT
€ 146.00
5
0422104089
ref: 5
PIN
€ 1.50
6-1
2532231301
ref: 6-1
25322-31310
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
6-2
2532231302
ref: 6-2
25322-31310
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
€ 1.50
10
0944004003
ref: 10
SPRING
€ 1.50
11
2533138A00
ref: 11
LIFTER,GEAR SHIFT POLE
€ 4.50
12
2534138A00
ref: 12
GUIDE,GEAR SHIFT CAM
€ 6.00
13-1
0212206128
ref: 13-1
02122-06127
SCREW
€ 3.00
13-2
0212206123
ref: 13-2
02122-0612A
SCREW
€ 3.00
14
0916025059
ref: 14
WASHER(25X32X3)
€ 5.00
15
2533238A00
ref: 15
BOSS,SHIFT PAWL LIFTER
€ 3.50
16-1
0915906017
ref: 16-1
08319-31067
NUT
€ 2.50
16-2
0831610063
ref: 16-2
08316-1006B
NUT
€ 2.50
17-1
0926225002
ref: 17-1
09262-25006
BEARING
€ 24.00
17-2
0926225006
ref: 17-2
BEARING(25X47X8)
€ 24.00
18-1
2474120A10
ref: 18-1
24741-21A00
RETAINER,SHIFT CAM,R BEARING
€ 2.00
18-2
2474121A00
ref: 18-2
RETAINER
€ 2.00
19-1
0211206128
ref: 19-1
02112-06127
SCREW 6X12
€ 2.00
19-2
0211206123
ref: 19-2
02112-0612A
SCREW
€ 1.50
20
2535038A00
ref: 20
STOPPER,GEAR SHIFT CAM
€ 9.00
21
0944309027
ref: 21
SPRING
€ 2.50
22
2535538A00
ref: 22
SUPPORT,CAM STOPPER ARM
€ 5.50
23
0821106141
ref: 23
WASHER
€ 2.50
24
2538038A02
ref: 24
PLATE,GEAR SHIFT CAM
€ 15.00
25
2531238A00
ref: 25
PIN,SHIFT CAM DRIVEN GEAR
€ 4.00
26
0922304001
ref: 26
RIVET
€ 1.50
27
2551038A00
ref: 27
SHAFT,GEAR SHIFT
€ 66.50
28
0918012068
ref: 28
SPACER(12X20X15.3)
€ 3.00
29-1
0944426012
ref: 29-1
09444-26013
SPRING
€ 3.50
29-2
0944426013
ref: 29-2
SPRING
€ 3.50
30
2567101000
ref: 30
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
31
0928512002
ref: 31
09285-12006
OIL SEAL
€ 7.00
32
2560038A00
ref: 32
LEVER ASSY,GEAR SHIFT
€ 58.50
33
2565220C00
ref: 33
RUBBER,GEAR SHIFT PEDAL
€ 8.00
34-1
0110706207
ref: 34-1
01500-06207
BOLT
€ 2.00
34-2
0150006203
ref: 34-2
01500-0620A
BOLT
€ 2.00
35
3772038A40
ref: 35
BASE,NEUTRAL SWH TERMINAL
€ 66.00
36
3661843410
ref: 36
CAP,OIL PRESSURE SWITCH
€ 2.50
37-1
0928026005
ref: 37-1
O RING(D:2.4,ID:26.2)
€ 2.50
37-2
0928026007
ref: 37-2
O RING(D:2.4,ID:25.7)
€ 6.50
38
0211205207
ref: 38
SCREW
€ 3.00
39
0832101057
ref: 39
08321-0105A
WASHER,LOCK
€ 2.00
40
0832201057
ref: 40
WASHER
€ 2.50
40A
0211275203
ref: 40A
02112-7520A
SCREW
€ 3.00
41
0920905011
ref: 41
PIN(5X15.5)
€ 2.00
42
0944004010
ref: 42
SPRING
€ 1.50
43-1
0940405401
ref: 43-1
09404-06429
CLAMP
€ 2.50
43-2
0940406429
ref: 43-2
CLAMP(L:45)
€ 2.50
44-1
0940406204
ref: 44-1
CLAMP
€ 2.00
44-2
0940406207
ref: 44-2
09404-06432
CLAMP(L:65)
€ 2.00
