RADIATOR
VS800GL INTRUDER 1994 (R) USA (E03)

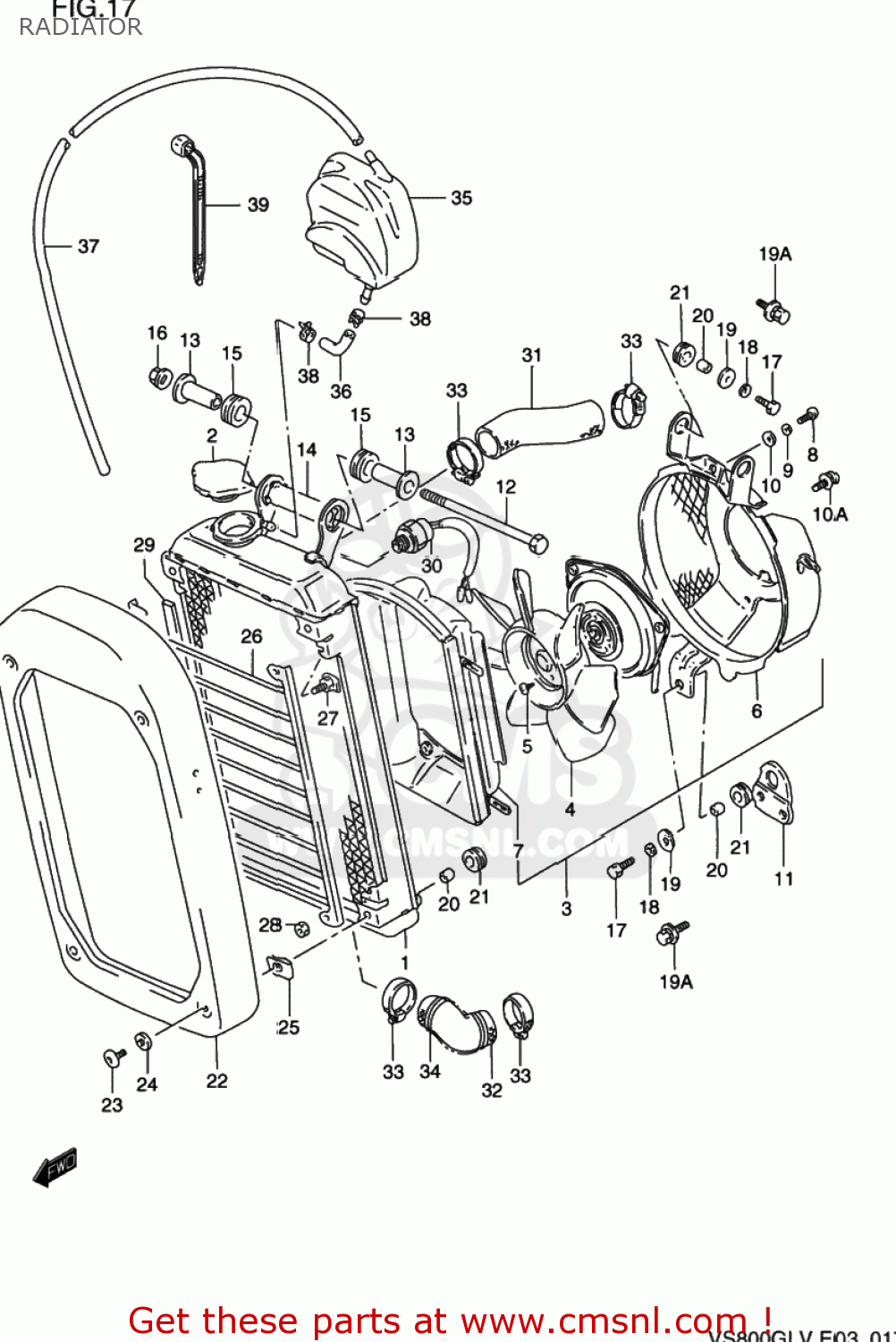

Radiator diagram VS800GL INTRUDER 1994 (R) USA (E03)
RADIATOR VS800GL INTRUDER 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1771039A00
ref: 1
RADIATOR ASSY,WATER
€ 1,106.50
2-1
1773020930
ref: 2-1
17730-08J00
CAP,RADIATOR 1.1
€ 40.00
2-2
1773012C01
ref: 2-2
17730-08J00
CAP,RADIATOR
€ 40.00
3
1780038A03
ref: 3
FAN ASSY,RADIATOR
€ 496.00
4
1782038A00
ref: 4
FAN
€ 51.00
5-1
1780105A00
ref: 5-1
02112-0406B
BOLT
€ 2.00
5-2
0211204063
ref: 5-2
02112-0406B
SCREW 4X6
€ 2.00
6
1777039A00
ref: 6
SHROUD,FAN
€ 78.50
7
1715038A00
ref: 7
DUCT,FAN
€ 82.50
8
0211205106
ref: 8
02112-0510A
SCREW 5X10
€ 2.00
9
0832121056
ref: 9
08321-0105A
LOCK WASHER
€ 3.00
10
0832221056
ref: 10
08322-0105A
WASHER
€ 2.50
10A
0211275103
ref: 10A
02112-7510A
SCREW
€ 1.50
11
1780838A00
ref: 11
BRACKET,RADIATOR FAN
€ 4.00
12-1
0910010198
ref: 12-1
BOLT 10X135
€ 4.00
12-2
0910010277
ref: 12-2
BOLT(10X135)
€ 3.00
13
1778238A01
ref: 13
SPACER,RADIATOR CUSHION NO.2
€ 12.50
14
1778338A00
ref: 14
SPACER,RDTR CUSH NO.2 OUTER
€ 2.00
15
0932015008
ref: 15
CUSHION
€ 3.50
16
0831931105
ref: 16
08319-3110A
NUT 10MM
€ 3.00
17
0110706165
ref: 17
01500-0616A
BOLT 6X16
€ 2.00
18
0832121064
ref: 18
08321-0106A
WASHER,LOCK
€ 2.00
19
0916006039
ref: 19
09160-06109
WASHER (6.5X18X1.6)
€ 2.00
19A
0911806067
ref: 19A
09118-06017
BOLT
€ 1.50
20-1
0918006154
ref: 20-1
09180-06261
SPACER (6X9X8)
€ 2.00
20-2
0918006261
ref: 20-2
SPACER(6.5X9X8)
€ 2.00
21
0932008037
ref: 21
CUSHION
€ 4.00
22-1
1776139A0003F
ref: 22-1
17761-39A01-33J
COVER,RADIATOR
€ 129.50
22-2
1776139A010CG
ref: 22-2
COVER,RADIATOR
€ 129.50
22-3
1776139A0019A
ref: 22-3
17761-39A01-19A
COVER,RADIATOR
€ 78.50
22-4
1776139A0119A
ref: 22-4
COVER,RADIATOR(RED)
€ 78.50
22-5
1776139A0133J
ref: 22-5
COVER,RADIATOR(BLACK)
€ 129.50
22-6
1776139A0120F
ref: 22-6
COVER,RADIATOR(MAROON)
€ 84.00
22-7
1776139A011ZV
ref: 22-7
COVER,RADIATOR(GREEN)
€ 129.50
22-8
1776139A01Y0N
ref: 22-8
COVER,RADIATOR(BLUE)
€ 77.00
22-9
1770039810
ref: 22-9
COVER SET,RADIATOR FOR VS800
€ 107.50
22-9
1770039810
ref: 22-9
COVER SET,RADIATOR FOR VS800
€ 107.50
23
0913906076
ref: 23
SCREW(6X10)
€ 2.50
24
0916006093
ref: 24
09160-06126
WASHER (6.2X14X2)
€ 2.00
25
1776239A00
ref: 25
09148-06015
NUT,RADIATOR COVER
€ 3.50
26
1779039A00
ref: 26
BUMPER,RADIATOR
€ 35.00
27
0911905014
ref: 27
BOLT
€ 2.50
28-1
0831022055
ref: 28-1
09140-05006
NUT 5MM
€ 2.00
28-2
0831000053
ref: 28-2
08310-0005A
NUT
€ 2.50
29
1779538A00
ref: 29
CUSHION,RADIATOR BUMPER
€ 3.00
30
1768024A02
ref: 30
SWITCH,RADIATOR FAN
€ 106.50
31
1785139A00
ref: 31
HOSE,RADIATOR INLET
€ 17.50
32-1
1785239A00
ref: 32-1
17858-38820
HOSE,RADIATOR
€ 16.50
32-2
1785238A00
ref: 32-2
17858-38820
HOSE,RADIATOR
€ 16.50
32-3
1785838A01
ref: 32-3
17858-38820
HOSE,WATER
€ 16.50
32-4
1785838820
ref: 32-4
HOSE,WATER PUMP OUTLET
€ 16.50
33-1
0940230502
ref: 33-1
09402-32511
CLAMP
€ 11.50
33-2
0940232511
ref: 33-2
CLAMP
€ 11.50
34
0944035005
ref: 34
SPRING
€ 4.00
35
1791138A00
ref: 35
TANK,RESERVOIR
€ 23.00
36
1798138A01
ref: 36
HOSE,RESERVE TANK INLET
€ 7.00
37-1
1798238A03
ref: 37-1
17982-38810
HOSE,RESERVOIR TANK OVERFLOW
€ 16.00
37-2
1798238810
ref: 37-2
HOSE,RESERVOIR TANK OUTLET
€ 16.00
38-1
0940108407
ref: 38-1
09401-08411
CLIP
€ 3.00
38-2
0940108411
ref: 38-2
CLIP
€ 3.00
39
0940714403
ref: 39
CLAMP(L:125)
€ 2.50
