SPEEDOMETER (MODEL T/V)

VS800GL INTRUDER 1994 (R) USA (E03)

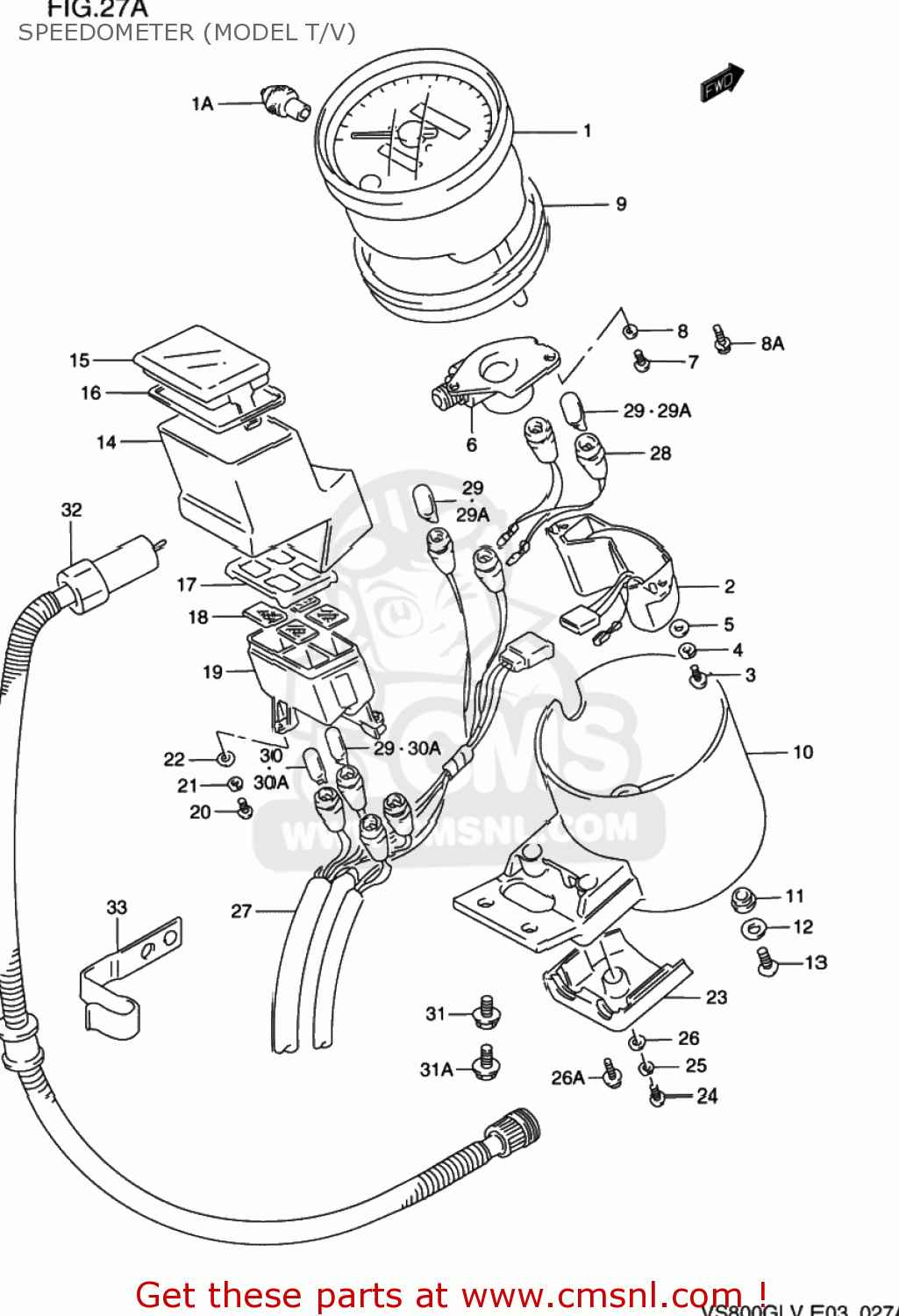

Speedometer (model t/v) diagram VS800GL INTRUDER 1994 (R) USA (E03)

SPEEDOMETER (MODEL T/V) VS800GL INTRUDER 1994 (R) USA (E03)
SPEEDOMETER (MODEL T/V) VS800GL INTRUDER 1994 (R) USA (E03)
SPEEDOMETER (MODEL T/V) VS800GL INTRUDER 1994 (R) USA (E03)
prices are in EUR
ref
part #
description
quantity
1A
3412439A10
ref: 1A
KNOB,TRIP
3412439A10
€ 14.50
1-1
3411039AD0
ref: 1-1
34110-39AM1
SPEEDOMETER (MILE/KILO)
€ 339.50
1-2
3411039AM0
ref: 1-2
34110-39AM1
SPEEDOMETER (MILE/KILO)
€ 339.50
2
3449039A10
ref: 2
UNIT,WATER TEMP
€ 222.00
3
0211203083
ref: 3
02112-0308A
SCREW
0211203083
€ 1.50
4
0832121033
ref: 4
08321-2103B
WASHER,LOCK
0832121033
€ 1.50
5
0832201033
ref: 5
08322-0103B
WASHER
0832201033
€ 1.50
6-1
3413133450
ref: 6-1
34131-19B00
GEAR BOX,SPEEDOMETER
3413133450
€ 134.00
6-2
3413119B00
ref: 6-2
BOX,GEAR
3413119B00
€ 134.00
7
0211204107
ref: 7
SCREW
0211204107
€ 2.00
8
0832101043
ref: 8
08321-0104A
WASHER,LOCK
0832101043
€ 2.00
8A
0211234103
ref: 8A
02112-3410A
SCREW
0211234103
€ 2.00
9
3428839A00
ref: 9
CUSHION
3428839A00
€ 14.00
10
3419339A20
ref: 10
COVER,METER
3419339A20
€ 182.00
11
3418905A30
ref: 11
CUSHION,METER
3418905A30
€ 4.50
12
3418138A00
ref: 12
WASHER
3418138A00
€ 3.50
13
0211204087
ref: 13
SCREW
0211204087
€ 1.50
14
3638139A20
ref: 14
BOX,PILOT
€ 98.00
15-1
3639338A00
ref: 15-1
LENS,PILOT BOX
3639338A00
€ 15.00
15-2
3639339AJ0
ref: 15-2
LENS,PILOT BOX
3639339AJ0
€ 14.50
16
3639538A00
ref: 16
CUSHION
3639538A00
€ 7.00
17
3638638A00
ref: 17
PLATE,PILOT LENS
3638638A00
€ 6.50
18-1
3630038810
ref: 18-1
LENS SET
€ 10.50
18-2
3630038850
ref: 18-2
LENS SET,PILOT LAMP
3630038850
€ 11.50
19
3638238B30
ref: 19
CASE,PILOT LAMP
€ 19.50
20
0211203083
ref: 20
02112-0308A
SCREW
0211203083
€ 1.50
21
0832121033
ref: 21
08321-2103B
WASHER,LOCK
0832121033
€ 1.50
22
0832201033
ref: 22
08322-0103B
WASHER
0832201033
€ 1.50
23-1
3415239A20
ref: 23-1
34152-39A21
COVER,PILOT BOX
3415239A20
€ 67.50
23-2
3415239A21
ref: 23-2
COVER,PILOT BOX
3415239A21
€ 67.50
24
0211204087
ref: 24
SCREW
0211204087
€ 1.50
25
0832101043
ref: 25
08321-0104A
WASHER,LOCK
0832101043
€ 2.00
26
0832201047
ref: 26
WASHER
0832201047
€ 2.00
26A
0211274083
ref: 26A
02112-7408B
SCREW
0211274083
€ 3.50
27
3417339AC0
ref: 27
SOCKET,METER NO.1
3417339AC0
€ 119.00
28-1
3417439A10
ref: 28-1
SOCKET
€ 19.50
28-2
3417439AJ0
ref: 28-2
SOCKET
€ 20.50
29
0947112103
ref: 29
BULB(12V3W,T6.5)
0947112103
€ 2.50
29A
0947112103
ref: 29A
BULB(12V3W,T6.5)
0947112103
€ 2.50
30
0947112108
ref: 30
BULB(12V1.7W,T6.5)
0947112108
€ 2.00
30A
0947112108
ref: 30A
BULB(12V1.7W,T6.5)
0947112108
€ 2.00
31
0155006163
ref: 31
01550-0616A
BOLT
0155006163
€ 2.50
31A
0216206163
ref: 31A
02162-0616B
SCREW
0216206163
€ 2.50
32
3491039A10
ref: 32
CABLE ASSY,SPEEDOMETER
3491039A10
€ 134.00
33
3493838A02
ref: 33
GUIDE,SPEEDOMETER CABLE
3493838A02
€ 9.50
