FRONT CALIPER (MODEL P/R/S/T/V)

VS800GL INTRUDER 1994 (R) USA (E03)

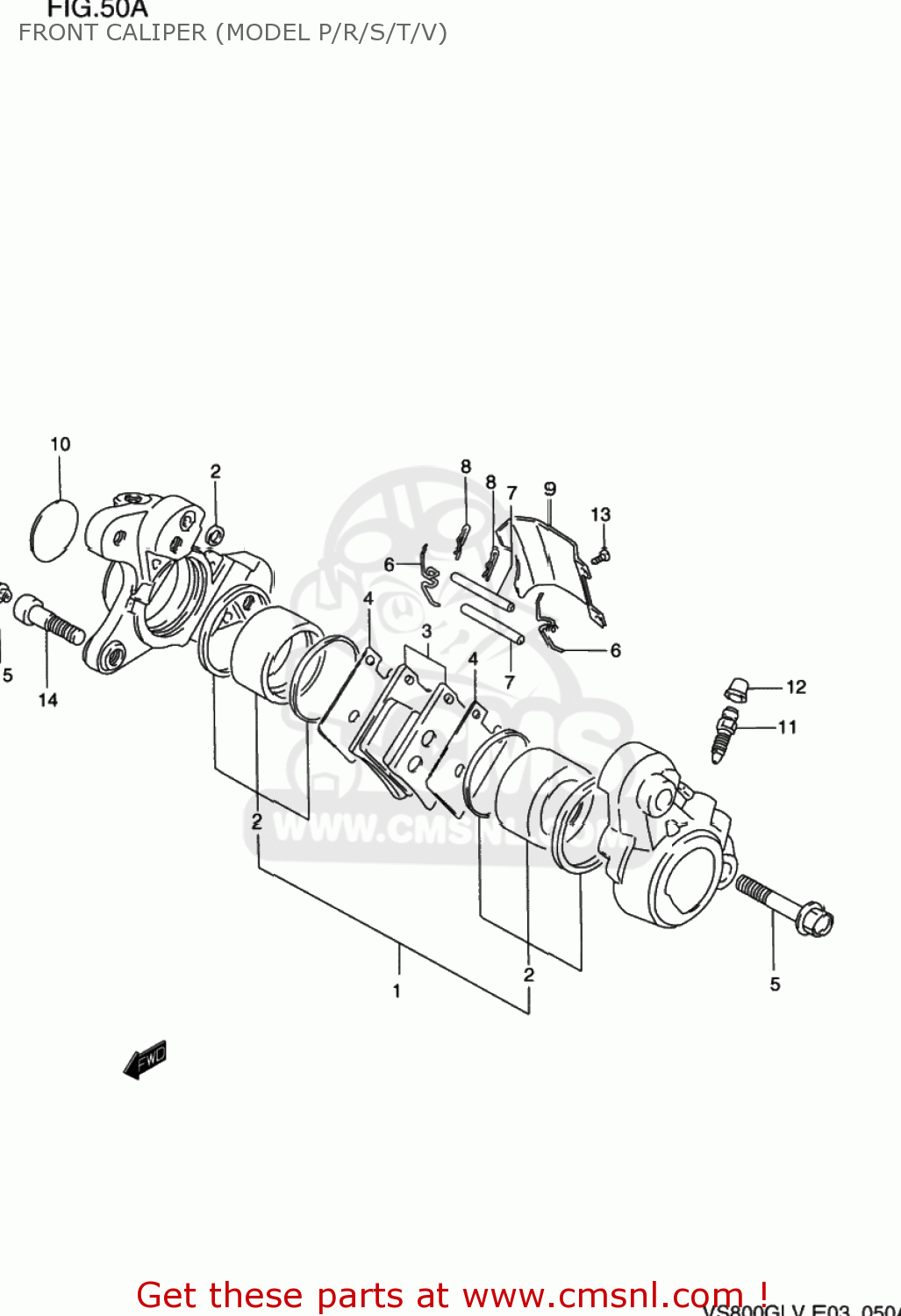

Front caliper (model p/r/s/t/v) diagram VS800GL INTRUDER 1994 (R) USA (E03)

FRONT CALIPER (MODEL P/R/S/T/V) VS800GL INTRUDER 1994 (R) USA (E03)

FRONT CALIPER (MODEL P/R/S/T/V) VS800GL INTRUDER 1994 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity



5910038A02
ref:
59100-38A02-999

CALIPER ASSEMBLY,FRONT,RIGHT

€ 595.50

1

6910038810
ref: 1
69100-38851

PISTON SET

€ 176.00

2

6910038830
ref: 2
69100-38831

SEAL SET,PISTON

€ 38.50

3

5910038820
ref: 3

PAD SET (NAS)

€ 41.50

4

5937133410
ref: 4

SHIM,PAD

€ 15.00

5

5914516700
ref: 5

BOLT,HOUSING

€ 8.00

6

5914316700
ref: 6

SPRING

€ 7.50

7

6914145000
ref: 7

PIN,PAD

€ 6.50

8

6914245000
ref: 8

CLIP,PAD PIN

€ 4.50

9-1

5915138B00
ref: 9-1
59151-38B01

COVER,CALIPER

€ 58.00

9-1

5915138B00
ref: 9-1
59151-38B01

COVER,CALIPER

€ 58.00

9-2

5915138B01
ref: 9-2

COVER,CALIPER HOUSING,DUST

€ 58.00

10

5915224A00
ref: 10

CAP,CALIPER

€ 23.50

11

5912118410
ref: 11

BLEEDER

€ 8.00

12

5515666310
ref: 12

CAP,BLEEDER PLUG

€ 6.00

13-1

5915338B00
ref: 13-1
59153-38B10

SCREW,CALIPER COVER (4X

€ 7.50

13-1

5915338B00
ref: 13-1
59153-38B10

SCREW,CALIPER COVER (4X

€ 7.50

13-2

5915338B10
ref: 13-2

SCREW,CALIPER COVER(4X6)

€ 7.50

14

0910610038
ref: 14

BOLT(10X33)

€ 4.50

15

0925008014
ref: 15

CAP(OD:12)

€ 3.50
