AIR CLEANER

VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)

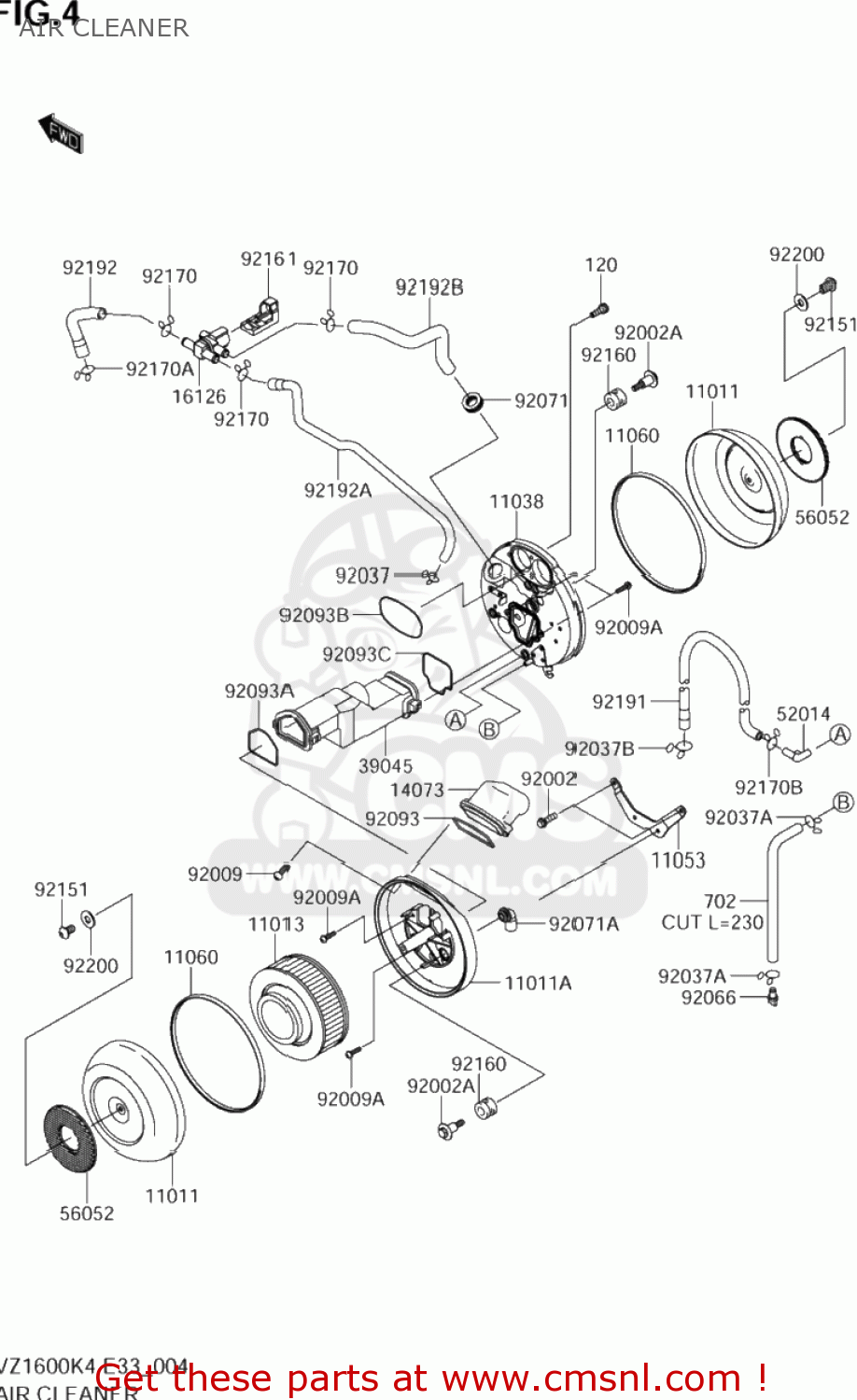

Air cleaner diagram VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)

AIR CLEANER VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)
AIR CLEANER VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)
AIR CLEANER VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
120
KK120S0616
ref: 120
BOLT-SOCKET
€ 1.50
702
KKK702A071
ref: 702
TUBE,7X10X1000
€ 10.50
11011
K110110009
ref: 11011
CASE-AIR FILTER
€ 66.50
11011A
K110111601
ref: 11011A
CASE-AIR FILTER,LH
€ 0.00
11013
K110131248
ref: 11013
ELEMENT-AIR FILTER
K110131248
€ 86.50
11038
K110380005
ref: 11038
CASE-ASSY-AIR FILTER,RH
K110380005
€ 58.00
11053
K110530231
ref: 11053
BRACKET
€ 9.50
11060
K110601968
ref: 11060
GASKET,AIR FILTER CASE (NAS)
K110601968
€ 14.00
14073
K140731739
ref: 14073
DUCT,AIR FILTER
€ 19.50
16126
K161261437
ref: 16126
VALVE,AIR CUT
€ 163.00
39045
K390450003
ref: 39045
DUCT-ASSY,CENTER
€ 96.00
52014
K520141083
ref: 52014
ELBOW
€ 4.00
56052
K560520227
ref: 56052
MARK
K560520227
€ 11.00
92002
K920021570
ref: 92002
BOLT,6X16
€ 4.00
92002A
K920021595
ref: 92002A
BOLT
€ 7.50
92009
K920091264
ref: 92009
SCREW,TAPPING,5X16
€ 3.00
92009A
K920091905
ref: 92009A
SCREW,5X20
€ 1.50
92037
K920371468
ref: 92037
CLAMP
€ 4.50
92037A
KK92037147
ref: 92037A
CLAMP,TUBE
KK92037147
€ 8.00
92037B
K920371593
ref: 92037B
CLAMP
€ 4.00
92066
K920661211
ref: 92066
PLUG,DRAIN
€ 6.00
92071
K920711042
ref: 92071
GROMMET,AIR FILTER
€ 4.50
92071A
K920711114
ref: 92071A
GROMMET,AIR FILTER
€ 0.00
92093
K920931408
ref: 92093
SEAL,AIR FILTER CASE
€ 4.00
92093A
K920931459
ref: 92093A
SEAL,DUCT,LH
€ 4.00
92093B
K920931485
ref: 92093B
SEAL
K920931485
€ 4.00
92093C
K920931491
ref: 92093C
SEAL,DUCT,RH
€ 4.00
92151
K921511438
ref: 92151
BOLT,8X14
K921511438
€ 2.00
92160
K921601594
ref: 92160
DAMPER
€ 3.50
92161
K921610002
ref: 92161
DAMPER
€ 8.50
92170
K921701017
ref: 92170
CLAMP
€ 3.00
92170A
K921701445
ref: 92170A
CLAMP,TUBE
€ 3.50
92170B
K921701695
ref: 92170B
CLAMP
€ 2.00
92191
K921911820
ref: 92191
TUBE,BREATHER
€ 15.00
92192
K921920001
ref: 92192
TUBE,FR HEAD-AIR SWITCH
€ 7.00
92192A
K921920002
ref: 92192A
TUBE,RR HEAD-AIR SWITCH
€ 14.00
92192B
K921920003
ref: 92192B
TUBE,AIR SWITCH-AIR CLEANER
€ 13.00
92200
K922001463
ref: 92200
WASHER,8.5X20X1.6
K922001463
€ 2.00
