FRONT BRAKE(K5)

VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)

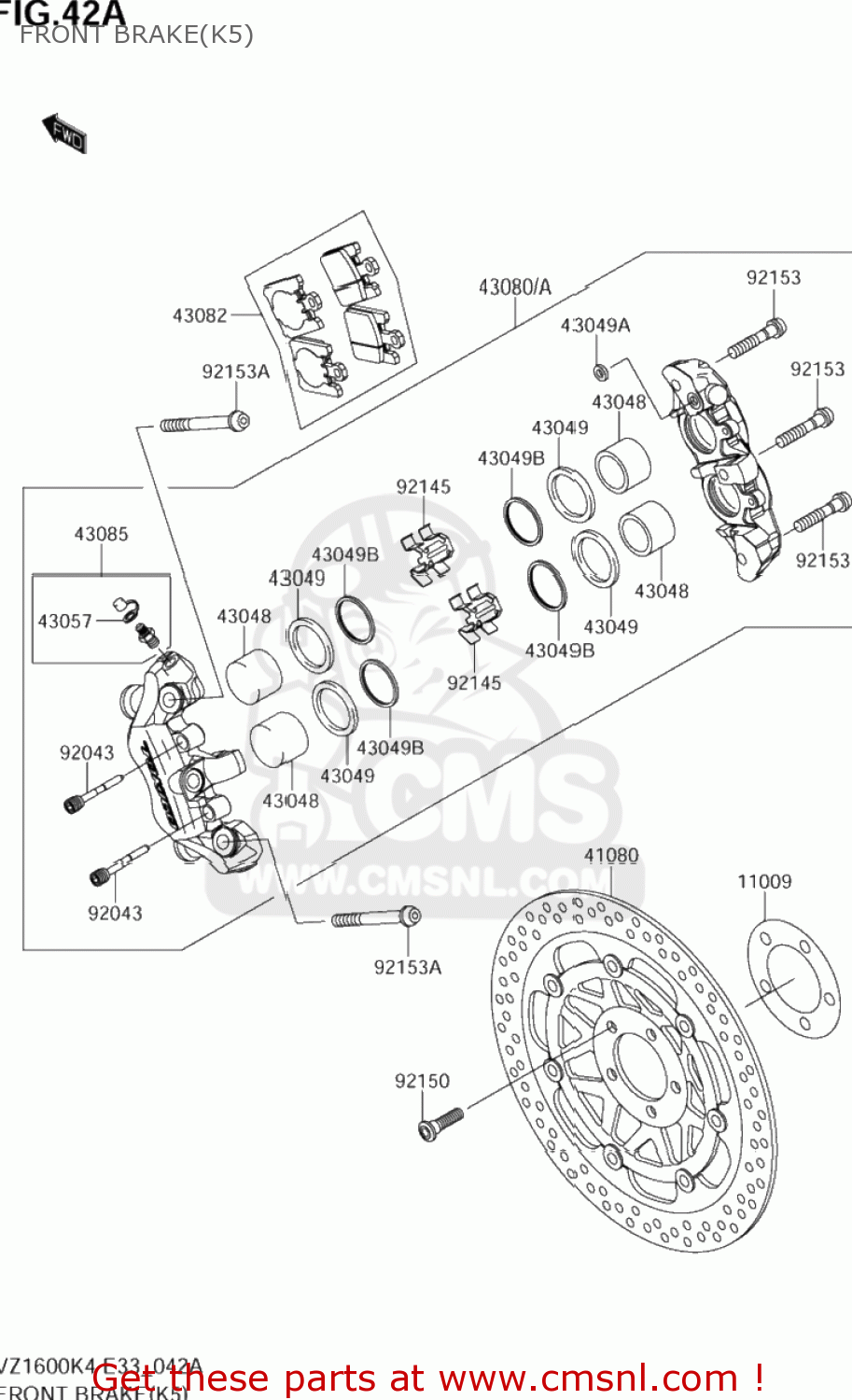

Front brake(k5) diagram VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

11009

K110091754
ref: 11009

GASKET,DISC PL (NAS)

€ 11.50

41080

K410800072675
ref: 41080

DISC,FR

€ 184.00

43048

K430480004
ref: 43048

PISTON-CALIPER

€ 45.50

43049

K430490003
ref: 43049

PACKING,PISTON (NAS)

€ 9.00

43049A

K430491004
ref: 43049A

PACKING,SEAL,6.5X11.5X2.2 (NAS)

€ 5.00

43049B

K430491107
ref: 43049B

PACKING,WIPER (NAS)

€ 8.00

43057

KK43057003
ref: 43057

CAP-BREATHER

€ 5.50

43080

KK430800017GN
ref: 43080

CALIPER-SUB-ASSY,FR,LH

€ 335.00

43080A

KK430800018GN
ref: 43080A

CALIPER-SUB-ASSY,FR,RH

€ 335.00

43082

K430820031
ref: 43082

PAD-ASSY-BRAKE

€ 71.00

43085

KK43085001
ref: 43085

BLEEDER

€ 19.00

92043

K920431709
ref: 92043

PIN,PAD

€ 6.00

92145

K921451568
ref: 92145

SPRING,PAD

€ 13.00

92150

K921501771
ref: 92150

BOLT,SOCKET,8X30

€ 4.00

92153

K921530360
ref: 92153

BOLT,SOCKET,8X40

€ 4.00

92153A

K921530577
ref: 92153A
K9215-31531

BOLT,SOCKET,10X60

€ 3.50
