THROTTLE

VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)

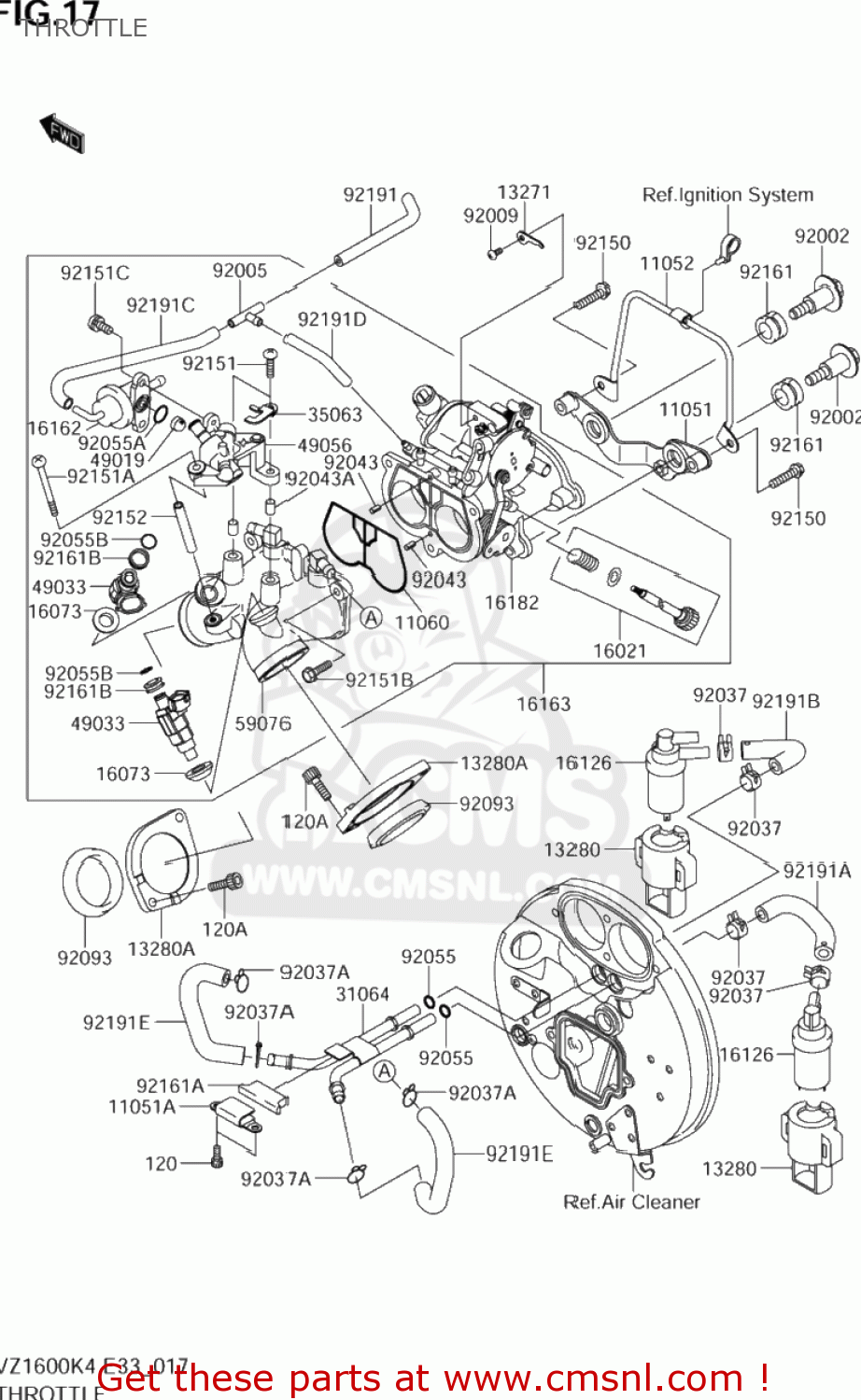

Throttle diagram VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)

THROTTLE VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)
THROTTLE VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)
THROTTLE VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
120
KK120S0510
ref: 120
BOLT-SOCKET
€ 1.50
120A
KK120Z0620
ref: 120A
BOLT-SOCKET
€ 1.50
11051
K110511333
ref: 11051
BRACKET
€ 21.00
11051A
K110511345
ref: 11051A
BRACKET
€ 4.00
11052
K110521067
ref: 11052
BRACKET,HIGH TENSHION CORD
€ 28.00
11060
K110601928
ref: 11060
GASKET,THROTTL (NAS)
€ 27.00
13271
K132711314
ref: 13271
PLATE,STARTER
€ 2.50
13280
K132801139
ref: 13280
HOLDER
€ 17.50
13280A
K132801154
ref: 13280A
HOLDER
€ 17.00
16021
K160211227
ref: 16021
SCREW-THROTTLE STOP
€ 67.50
16073
K160731119
ref: 16073
INSULATOR
€ 15.00
16126
K161261372
ref: 16126
VALVE
€ 50.50
16162
K161621054
ref: 16162
REGULATOR-FUEL
€ 150.50
16163
K161631113
ref: 16163
THROTTLE-ASSY
€ 1,964.50
16182
K161821003
ref: 16182
BODY-THROTTLE
€ 1,040.50
31064
K310641242
ref: 31064
PIPE-COMP
€ 32.50
35063
K350631148
ref: 35063
STAY
€ 9.00
49019
K490193707
ref: 49019
FILTER-FUEL,ST
€ 8.50
49033
K490331057
ref: 49033
NOZZLE-INJECTION
€ 110.50
49056
K490561054
ref: 49056
PIPE-INJECTION
€ 121.50
59076
K590761113
ref: 59076
MANIFOLD-INTAKE
€ 375.50
92002
K920021595
ref: 92002
BOLT
€ 7.50
92005
K920051366
ref: 92005
FITTING
€ 20.00
92009
K920091903
ref: 92009
SCREW,4X6
€ 1.50
92037
K920371181
ref: 92037
CLAMP
€ 3.50
92037A
K920371271
ref: 92037A
CLAMP,FUEL TUBE
€ 4.00
92043
K920431600
ref: 92043
PIN,THROTTLE BODY
€ 2.00
92043A
K920431601
ref: 92043A
PIN,DELIVERY PIPE
€ 2.00
92055
KK92055029
ref: 92055
RING-O,7.8X3.5
€ 2.50
92055A
K920551620
ref: 92055A
RING-O,FUEL REGULATOR
€ 1.50
92055B
K920551622
ref: 92055B
RING-O,INJECTION NOZZLE
€ 1.50
92093
K920931484
ref: 92093
K9209-30072
SEAL
€ 9.00
92150
K921501779
ref: 92150
BOLT,6X25
€ 3.50
92151
K921511585
ref: 92151
BOLT,5X20
€ 1.50
92151A
K921511586
ref: 92151A
BOLT,5X75
€ 2.00
92151B
K921511587
ref: 92151B
BOLT,THROTTLE BODY
€ 2.00
92151C
K921511588
ref: 92151C
BOLT,6X12
€ 5.00
92152
K921521206
ref: 92152
COLLAR,DELIVERY PIPE
€ 6.50
92161
K921611058
ref: 92161
DAMPER
€ 3.50
92161A
K921611062
ref: 92161A
DAMPER
€ 5.50
92161B
K921611083
ref: 92161B
DAMPER,INJECTION NOZZLE
€ 3.50
92191
K921911298
ref: 92191
TUBE,THROTTLE-BOOST
€ 4.50
92191A
K921911367
ref: 92191A
TUBE,REAR VALVE,RED
€ 4.50
92191B
K921911368
ref: 92191B
TUBE,FRONT VALVE,BLUE
€ 4.50
92191C
K921911402
ref: 92191C
TUBE,L=130
€ 3.00
92191D
K921911403
ref: 92191D
TUBE,L=55
€ 2.50
92191E
K921911608
ref: 92191E
TUBE
€ 6.00
