SWINGARM

VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)

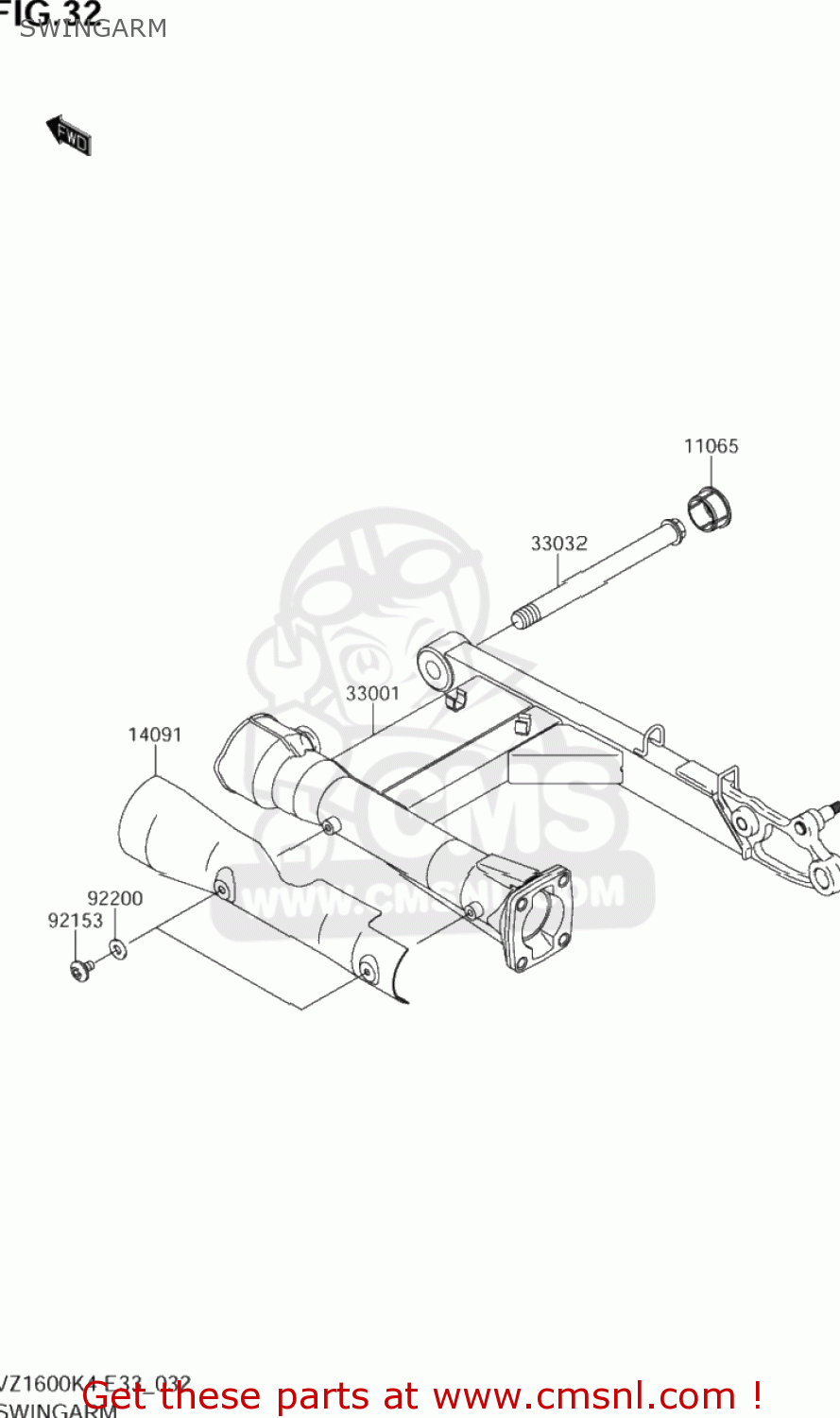

Swingarm diagram VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)

SWINGARM VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)

SWINGARM VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

11065

K110651259
ref: 11065

CAP,SWING ARM

€ 4.00

14091

K140910060
ref: 14091

COVER,SWING AR

€ 31.50

33001

K330010005
ref: 33001

ARM-COMP-SWING

€ 694.50

33032

K330321181
ref: 33032

SHAFT-SWING AR

€ 48.50

92153

K921530411
ref: 92153

BOLT,SOCKET,6X10

€ 2.00

92200

K922003775
ref: 92200

WASHER,6.5X14.5X1.5

€ 1.50
