TURN SIGNAL

VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)

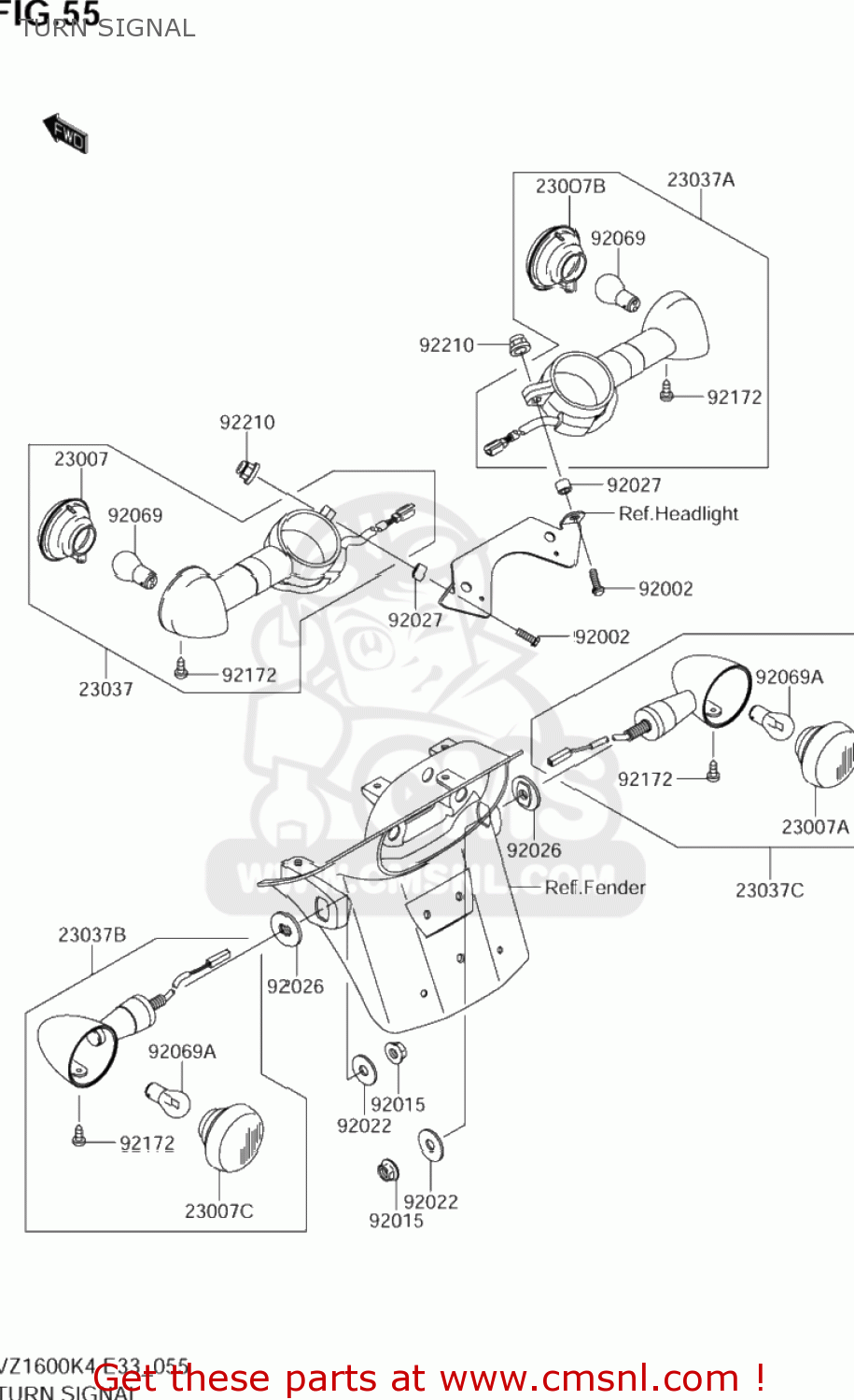

Turn signal diagram VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

23007

K230070008
ref: 23007

LENS-COMP,SIGNAL LAMP,FR

€ 0.00

23007A

K230070009
ref: 23007A

LENS-COMP,SIGNAL LAMP,RR

€ 9.50

23007B

K230070026
ref: 23007B

LENS,SIGNAL LAMP,FR

€ 0.00

23007C

K230070027
ref: 23007C

LENS,SIGNAL LAMP,RR

€ 14.00

23037

K230370010
ref: 23037

LAMP-ASSY-SIGNAL,FR,LH

€ 0.00

23037A

K230370011
ref: 23037A

LAMP-ASSY-SIGNAL,FR,RH

€ 0.00

23037B

K230370012
ref: 23037B

LAMP-ASSY-SIGNAL,RR,LH

€ 68.50

23037C

K230370013
ref: 23037C

LAMP-ASSY-SIGNAL,RR,RH

€ 68.50

92002

K920021607
ref: 92002

BOLT

€ 3.50

92015

K920151356
ref: 92015

NUT,10MM

€ 2.00

92022

K920221302
ref: 92022

WASHER,10.5X30X2.3,BLACK

€ 4.00

92026

K920260030
ref: 92026

SPACER

€ 2.50

92027

KK92027162
ref: 92027

COLLAR,6.8X10X12

€ 5.00

92069

KK92069063
ref: 92069

BULB,12V 21/5W

€ 9.00

92172

K921720118
ref: 92172

SCREW,TAPPING,4X10

€ 1.50

92210

K922100141
ref: 92210

NUT,CAP,6MM

€ 2.50
