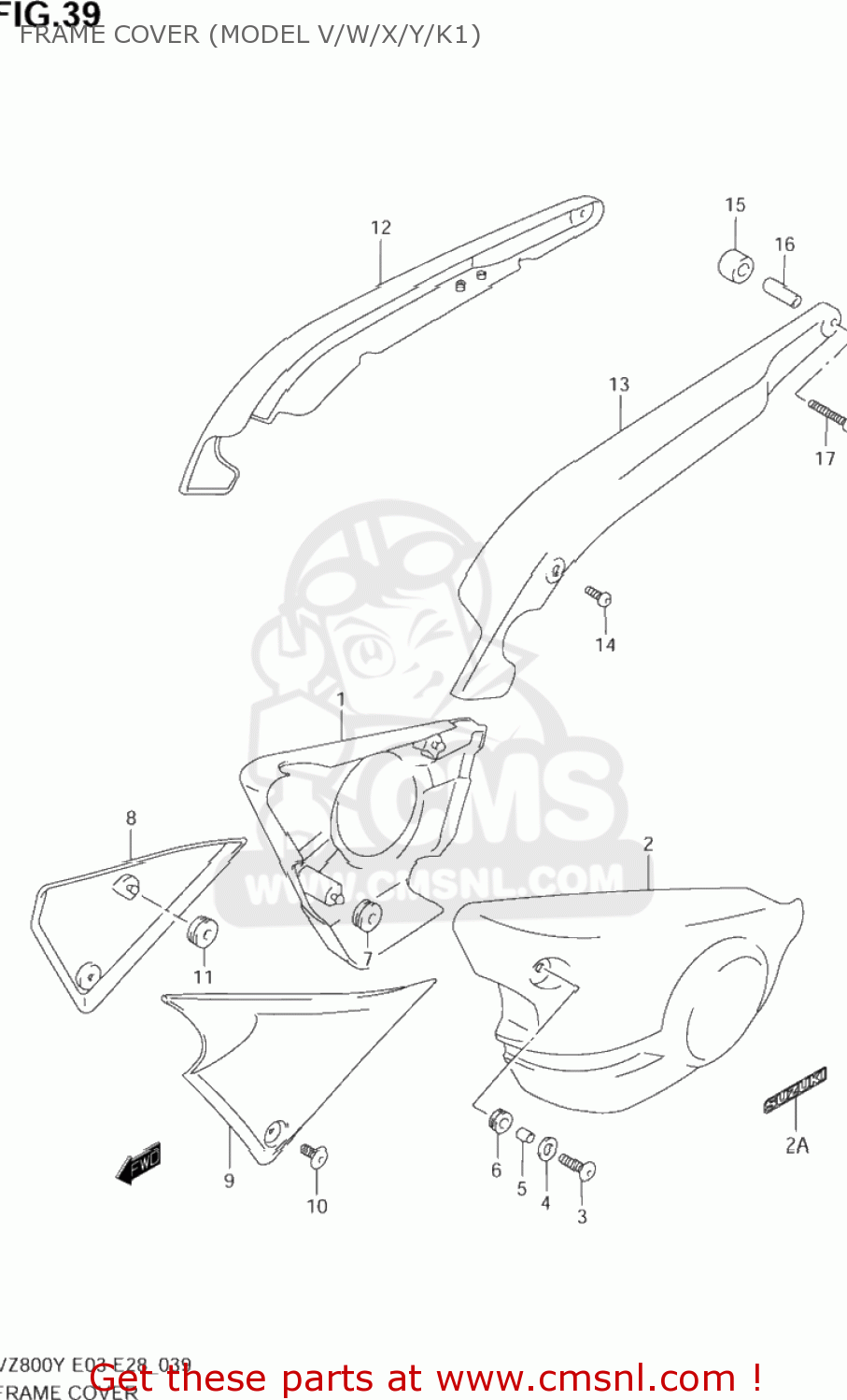

FRAME COVER (MODEL V/W/X/Y/K1)

ref

part #

description

quantity

1-1

4711148E00
ref: 1-1

COVER,FRAME,R

€ 87.00

1-2

4711148E40
ref: 1-2
47111-48E41

COVER,FRAME,RIGHT

€ 85.50

1-3

4711148E10
ref: 1-3
47111-48E11

COVER,FRAME,RIGHT

€ 59.50

2A

6827134A0020G
ref: 2A

EMBLEM,FRAME COVER CTR

€ 7.00

2-1

4721148E00
ref: 2-1

COVER,FRAME,L

€ 80.00

2-2

4721148E30
ref: 2-2

COVER,FRAME,L

€ 81.00

3

0913906030
ref: 3

SCREW(6X16)

€ 3.50

4

0916006028
ref: 4

WASHER(6.5X18X1)

€ 1.50

5

0918006263
ref: 5

SPACER(6.5X9X9)

€ 2.00

6

0932009016
ref: 6

CUSHION

€ 2.50

7

0932008018
ref: 7

CUSHION

€ 4.00

8

4751148E00
ref: 8

COVER,FRAME HEAD,R

€ 14.00

9

4752148E00
ref: 9

COVER,FRAME HEAD,L

€ 14.00

10

0913906039
ref: 10

SCREW(6X16)

€ 2.50

11

0932008018
ref: 11

CUSHION

€ 4.00

12

4712048E00
ref: 12

COVER,FRAME RR,R

€ 131.00

13

4722048E00
ref: 13

COVER,FRAME RR,L

€ 131.00

14

0910608140
ref: 14

BOLT(8X16)

€ 6.00

15

4712948E00
ref: 15

CUSHION,FRAME RR COVER RR

€ 5.50

16

0918008197
ref: 16

SPACER(8.5X12X23.5)

€ 3.50

17

0910608141
ref: 17
09106-08156

BOLT

€ 8.50
