GASKET SET

VZ800 MARAUDER 2000 (Y) USA (E03)

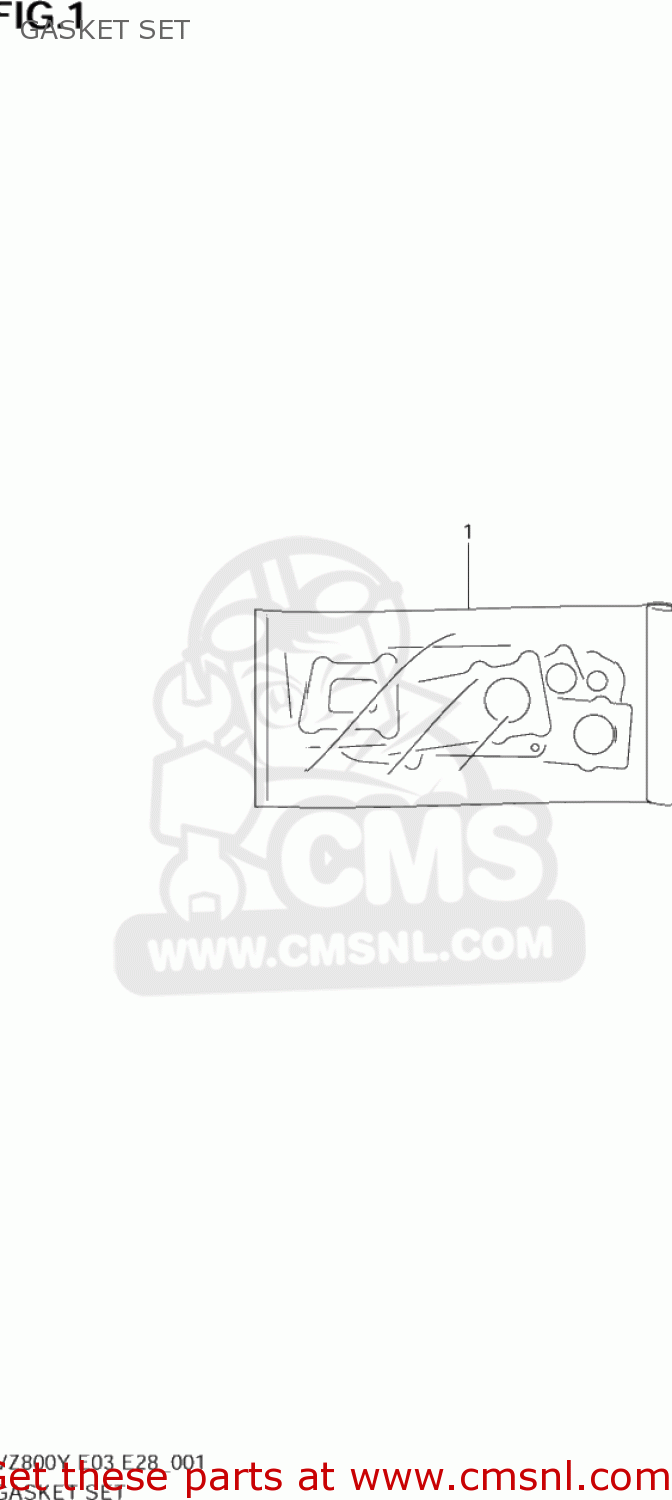

Gasket set diagram VZ800 MARAUDER 2000 (Y) USA (E03)

GASKET SET VZ800 MARAUDER 2000 (Y) USA (E03)

GASKET SET VZ800 MARAUDER 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1140148840
ref: 1
11401-48841

GASKET SET (NAS)

€ 202.50

2

1112338A00
ref: 2

GASKET,CYLINDER HEAD WATER (NAS)

€ 2.50

3

1114145C00
ref: 3

GASKET,CYLINDER HEAD FR (NAS)

€ 51.50

4

1114245C00
ref: 4

GASKET,CYLINDER HEAD RR (NAS)

€ 54.00

5

1117738A00
ref: 5

GASKET,INSPECTION CAP (NAS)

€ 5.00

6

1118238A00
ref: 6

GASKET,WATER OUTLET UNION (NAS)

€ 2.00

7

1118738A02H17
ref: 7

GASKET,BREATHER COVER (NAS)

€ 12.00

8

1124145C20
ref: 8

GASKET,CYLINDER (NAS)

€ 16.50

9

1124638A00
ref: 9

O RING,OUTLET WATER CHAMBER

€ 4.50

10

1124738A00
ref: 10

O RING,INLET WATER CHAMBER

€ 3.00

11

1148248E01
ref: 11

GASKET,CLUTCH COVER

€ 19.50

12

1148348E01
ref: 12

GASKET,CLUTCH COVER

€ 14.50

13

1418145C00
ref: 13

GASKET,EXHAUST PIPE (NAS)

€ 6.50

14

0928040003
ref: 14
09280-40010

O-RING (D:2.4 ID:39.7)

€ 3.50
