STARTER CLUTCH

VZ800 MARAUDER 2000 (Y) USA (E03)

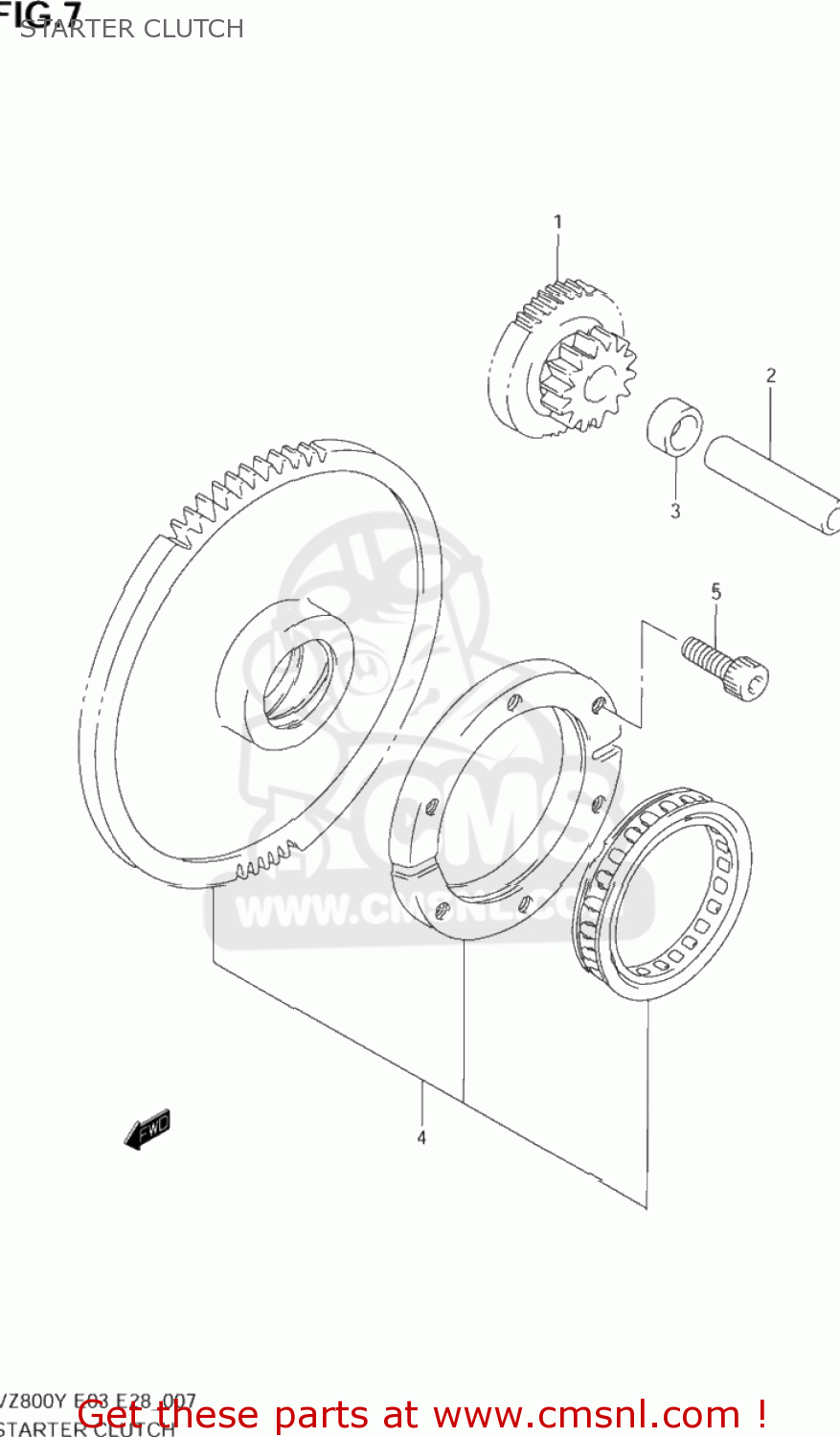

Starter clutch diagram VZ800 MARAUDER 2000 (Y) USA (E03)

STARTER CLUTCH VZ800 MARAUDER 2000 (Y) USA (E03)

STARTER CLUTCH VZ800 MARAUDER 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1261148E00
ref: 1-1
12611-48E01

GEAR,STARTER IDLE (NT

€ 59.50

1-2

1261148E01
ref: 1-2

GEAR,STARTER IDLE(NT:14/49)

€ 59.50

2

0920612003
ref: 2

PIN(12X55.5)

€ 14.00

3

0918012137
ref: 3

SPACER(12.5X19X9.5)

€ 4.00

4

1260038831
ref: 4
12600-38832

CLUTCH SET,STARTER

€ 307.00

5

0713008163
ref: 5
07130-0816A

BOLT

€ 3.00
