Buy Suzuki VZ Parts Online


FRONT FENDER (MODEL W/X)

VZ800 MARAUDER 2000 (Y) USA (E03)

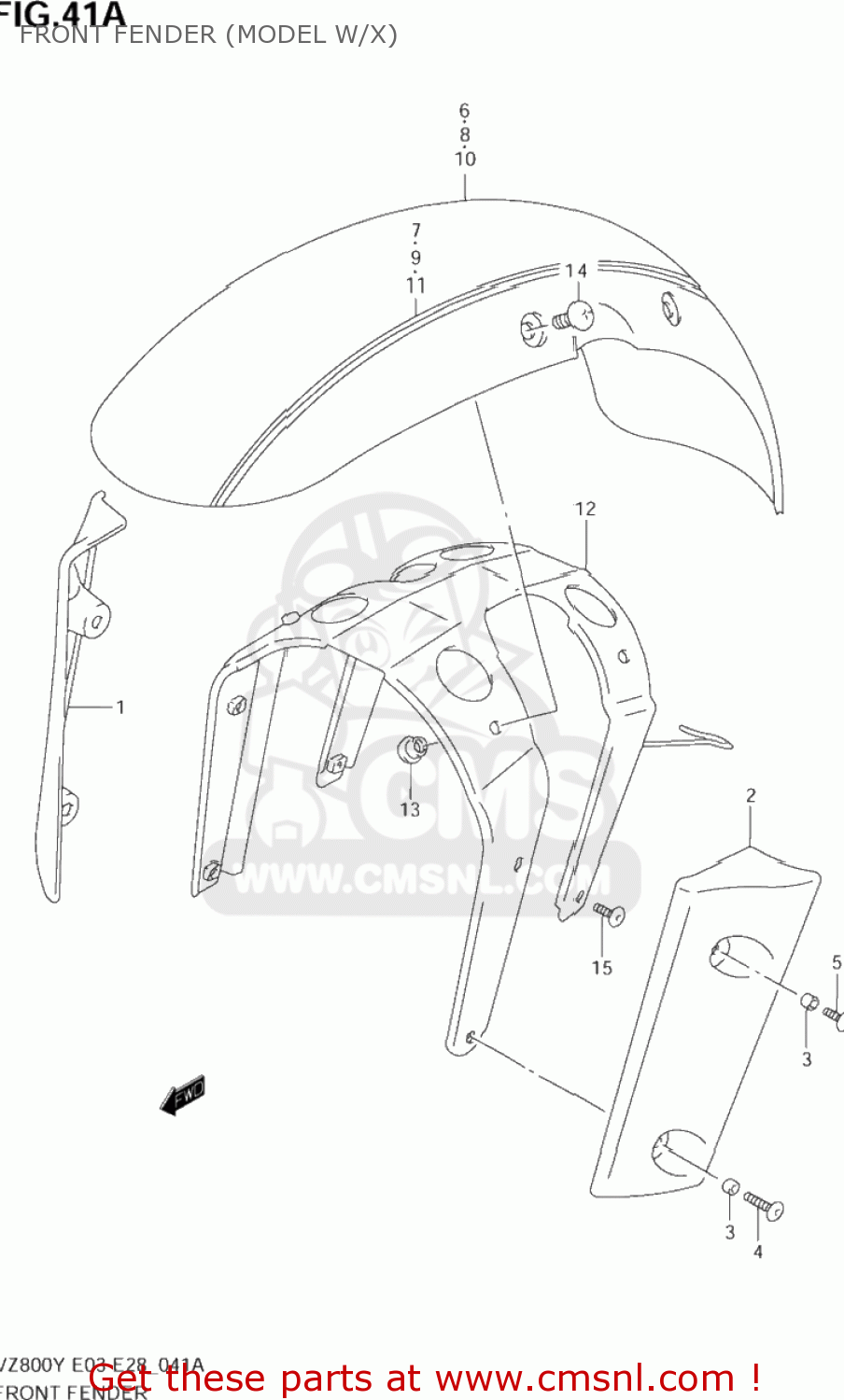

Front fender (model w/x) diagram VZ800 MARAUDER 2000 (Y) USA (E03)

FRONT FENDER (MODEL W/X) VZ800 MARAUDER 2000 (Y) USA (E03)
FRONT FENDER (MODEL W/X) VZ800 MARAUDER 2000 (Y) USA (E03)
FRONT FENDER (MODEL W/X) VZ800 MARAUDER 2000 (Y) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5188148E00
ref: 1
COVER,FR FORK SIDE,R
5188148E00
€ 65.50
2
5188248E00
ref: 2
COVER,FR FORK SIDE,L
5188248E00
€ 61.00
3
0918006245
ref: 3
SPACER(6.1X8X3.5)
0918006245
€ 3.00
4
0913906028
ref: 4
SCREW(6X20)
0913906028
€ 3.50
5
0913906027
ref: 5
SCREW(6X12)
0913906027
€ 3.00
6
5311048E30J8K
ref: 6
53110-48E50-J8K
FENDER COMP,FRONT
5311048E30J8K
€ 168.00
7
6815048E10J9G
ref: 7
TAPE SET,FRONT FENDER
6815048E10J9G
€ 66.00
8
5311048E40J4M
ref: 8
53110-48E60-J4M
FENDER,FRONT
5311048E40J4M
€ 212.00
9
6815048E20J6F
ref: 9
TAPE SET,FR FENDER
€ 50.50
10-1
5311048E70E9N
ref: 10-1
53110-48E80-E9N
FENDER COMP,FRONT
€ 204.00
10-2
5311048E70G7U
ref: 10-2
53110-48E80-G7U
FENDER COMP,FRONT
€ 200.50
11-1
6815048E30H0G
ref: 11-1
TAPE SET,FR FENDER
€ 39.50
11-2
6815048E30M1Z
ref: 11-2
TAPE SET,FRONT FENDER
€ 43.50
12
5312048E00
ref: 12
BRACE,FR FENDER
5312048E00
€ 65.50
13
5312233D00
ref: 13
NUT
€ 6.50
14
0913906027
ref: 14
SCREW(6X12)
0913906027
€ 3.00
15
0913906030
ref: 15
SCREW(6X16)
0913906030
€ 3.50
