FRONT FENDER (MODEL K1/K2/K3)

VZ800 MARAUDER 2000 (Y) USA (E03)

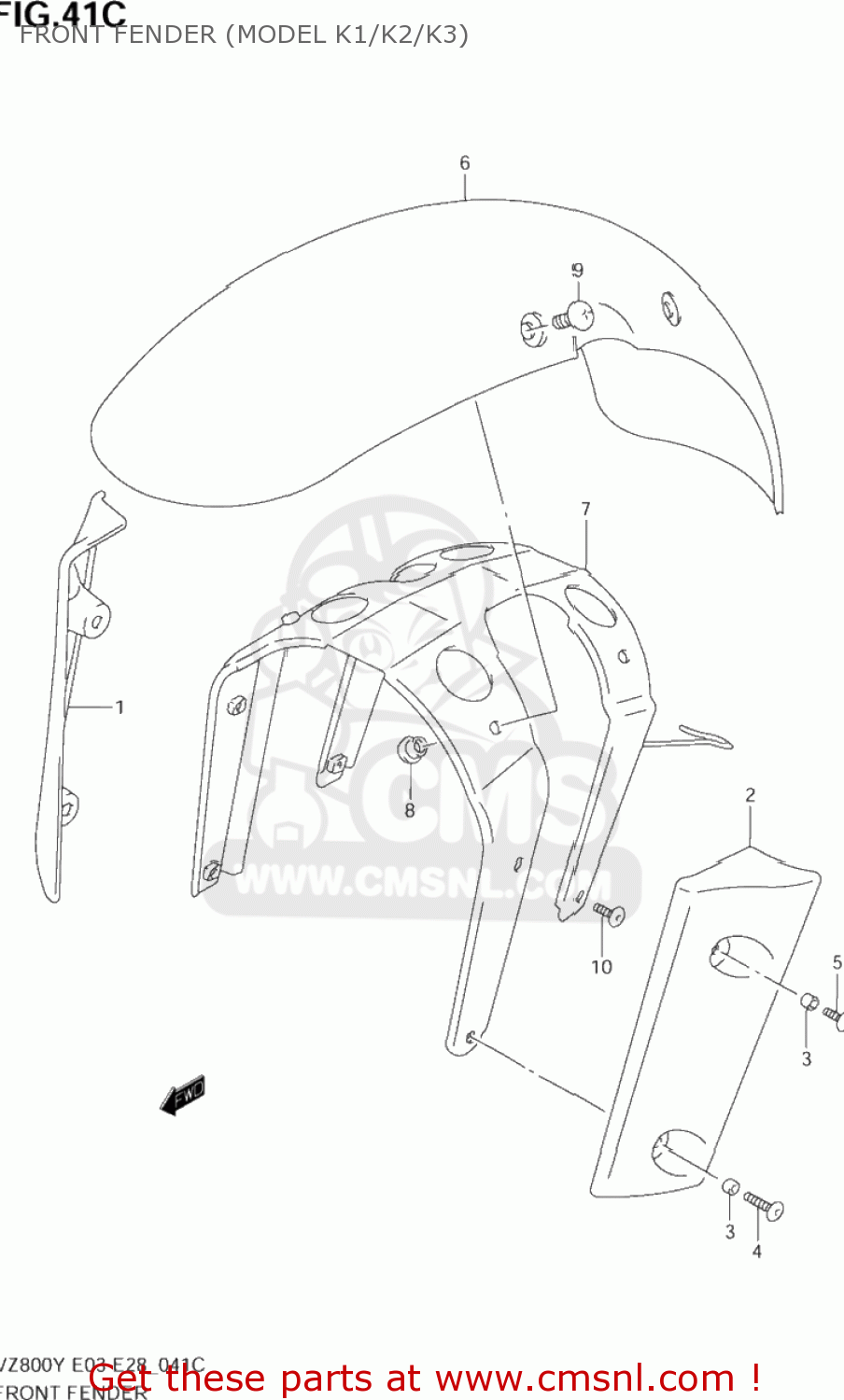

Front fender (model k1/k2/k3) diagram VZ800 MARAUDER 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

5188148E00
ref: 1

COVER,FR FORK SIDE,R

€ 65.50

5188248E00
ref: 2

COVER,FR FORK SIDE,L

€ 61.00

0918006245
ref: 3

SPACER(6.1X8X3.5)

€ 3.00

0913906028
ref: 4

SCREW(6X20)

€ 3.50

0913906027
ref: 5

SCREW(6X12)

€ 3.00

6-1

5311148E0033J
ref: 6-1
53111-48E10-33J

FENDER,FRONT (BLACK)

€ 151.50

6-2

5311148E00YC2
ref: 6-2
53111-48E10-YC2

FENDER,FR

€ 55.00

6-3

5311148E00YE2
ref: 6-3
53111-48E10-YE2

FENDER,FR

€ 0.00

6-4

5311148E1033J
ref: 6-4

FENDER,FR

€ 151.50

6-5

5311148E101LF
ref: 6-5

FENDER,FR

€ 99.00

6-6

5311148E00YD8
ref: 6-6
53111-48E10-YD8

FENDER,FR

€ 90.00

5312048E00
ref: 7

BRACE,FR FENDER

€ 65.50

5312233D00
ref: 8

NUT

€ 6.50

0913906027
ref: 9

SCREW(6X12)

€ 3.00

0913906030
ref: 10

SCREW(6X16)

€ 3.50
