FRONT FENDER (MODEL V)

VZ800 MARAUDER 2000 (Y) USA (E03)

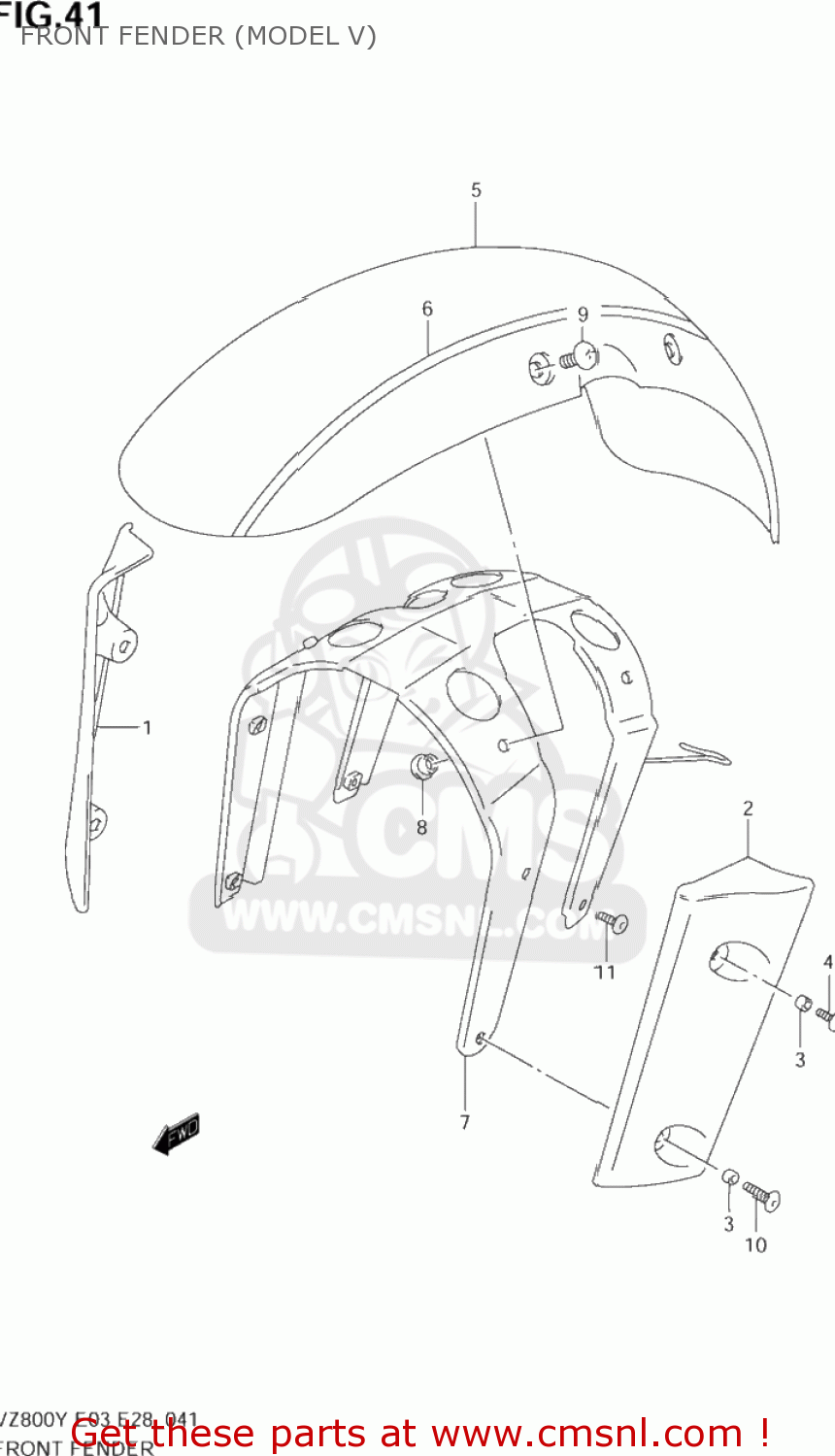

Front fender (model v) diagram VZ800 MARAUDER 2000 (Y) USA (E03)

FRONT FENDER (MODEL V) VZ800 MARAUDER 2000 (Y) USA (E03)

FRONT FENDER (MODEL V) VZ800 MARAUDER 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5188148E00
ref: 1

COVER,FR FORK SIDE,R

€ 65.50

2

5188248E00
ref: 2

COVER,FR FORK SIDE,L

€ 61.00

3

0918006245
ref: 3

SPACER(6.1X8X3.5)

€ 3.00

4

0913906027
ref: 4

SCREW(6X12)

€ 3.00

5-1

5310048810E9N
ref: 5-1

FENDER SET,FR

€ 169.50

5-2

5310048810G9Y
ref: 5-2

FENDER SET,FR

€ 153.00

6-1

6815048E01H0G
ref: 6-1

TAPE SET,FR FENDER

€ 54.50

6-2

6815048E01H0H
ref: 6-2

TAPE SET,FRONT FENDER

€ 60.00

7

5312048E00
ref: 7

BRACE,FR FENDER

€ 65.50

8

5312233D00
ref: 8

NUT

€ 6.50

9

0913906027
ref: 9

SCREW(6X12)

€ 3.00

10

0913906028
ref: 10

SCREW(6X20)

€ 3.50

11

0913906030
ref: 11

SCREW(6X16)

€ 3.50
