CRANKCASE COVER

VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

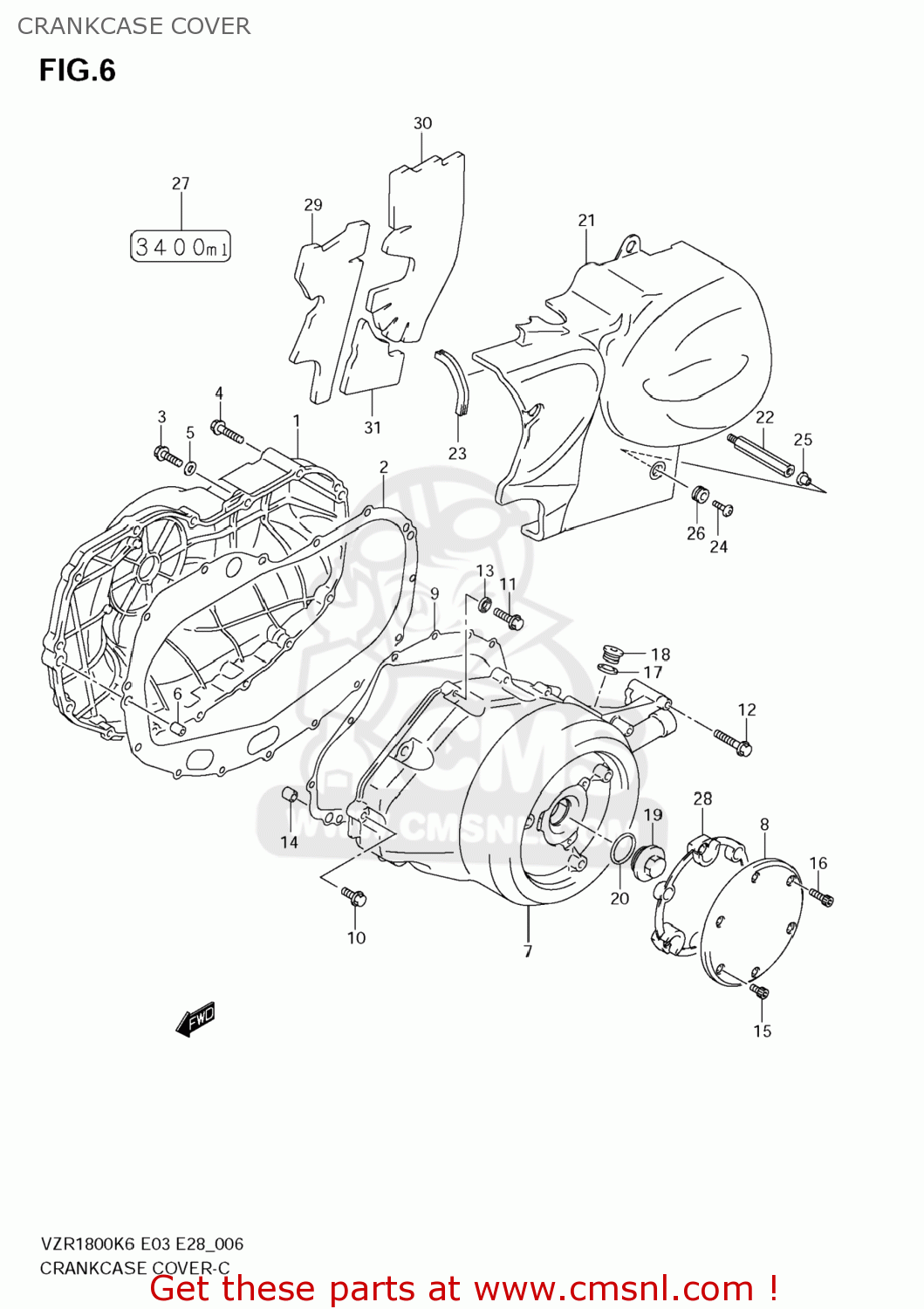

Crankcase cover diagram VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

CRANKCASE COVER VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

CRANKCASE COVER VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

1134148G00
ref: 1

COVER,CLUTCH

€ 1,030.50

2

1148248G00
ref: 2

GASKET,CL COVER (NAS)

€ 24.00

3

0910306213
ref: 3

BOLT(6X30)

€ 2.50

4

0910306261
ref: 4

BOLT(6X60)

€ 2.50

5

0916806023
ref: 5

GASKET(5.8X13X1.2) (NAS)

€ 2.00

6

0421109189
ref: 6

PIN

€ 2.00

7

1135148G00
ref: 7

COVER,MAGNETO

€ 877.00

8

1135248G00
ref: 8

CAP,MAGNETO COVER

€ 99.50

9

1148348G00
ref: 9

GASKET,MAGNETO COVER (NAS)

€ 15.00

10

0910306213
ref: 10

BOLT(6X30)

€ 2.50

11

0910306238
ref: 11

BOLT(6X50)

€ 2.50

12

0910306225
ref: 12

BOLT(6X70)

€ 3.50

13

0916806023
ref: 13

GASKET(5.8X13X1.2) (NAS)

€ 2.00

14

0421109149
ref: 14

PIN

€ 2.00

15-1

0713006127
ref: 15-1

BOLT

€ 1.00

15-2

0910606068
ref: 15-2
09106-06076

BOLT(6X10)

€ 2.50

16-1

0713006207
ref: 16-1

BOLT

€ 3.50

16-2

0910606123
ref: 16-2

BOLT(6X20)

€ 3.00

17

0916816002
ref: 17

GASKET(16X22X2) (NAS)

€ 2.00

18

0924816012A05
ref: 18

PLUG. OIL GALLE

€ 4.50

19

0925930005
ref: 19

CAP

€ 6.50

20

0928026006
ref: 20

O RING(D:3.1,ID:26.4)

€ 3.00

21-1

1136148G00
ref: 21-1

COVER,SECONDARY DRIVE UNIT

€ 283.00

21-2

1136048G10
ref: 21-2

COVER,SECONDARY DRIVE UNIT

€ 1,160.50

22

1137248G00
ref: 22

BOLT,SEC DRIVE UNIT COVER

€ 10.00

23

6113595J00
ref: 23

CUSHION,SIDE COVER

€ 6.00

24

0913906028
ref: 24

SCREW(6X20)

€ 3.50

25

0916906062
ref: 25

WASHER

€ 3.00

26

0932009501
ref: 26

CUSHION

€ 2.00

27

6832248G00
ref: 27

NOTE,ENGINE OIL

€ 3.00

28

1135348G00
ref: 28

DAMPER,MAGNETO COVER CAP

€ 11.50

29

1136348G00
ref: 29

DAMPER,SEC DRIVE UNIT COVER

€ 16.00

30

1136448G00
ref: 30

DAMPER,SEC DRIVE UNIT COVER

€ 21.50

31

1136548G00
ref: 31

DAMPER,SEC DRIVE UNIT COVER

€ 7.00
