GEAR SHIFTING

VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

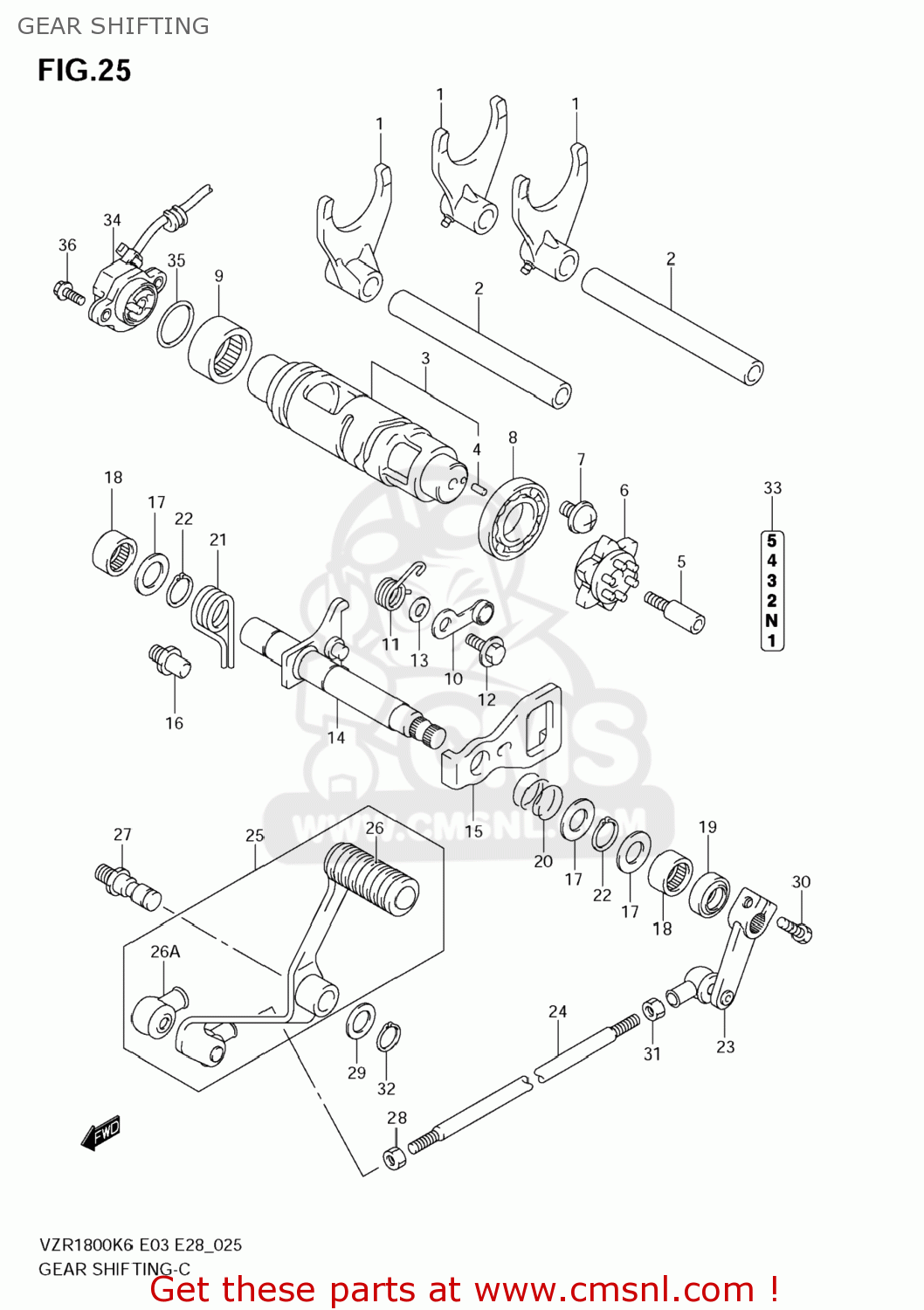

Gear shifting diagram VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

GEAR SHIFTING VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

GEAR SHIFTING VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

2521135F11
ref: 1

FORK,GEAR SHIFT NO.1

€ 72.50

2

2541148G00
ref: 2

SHAFT,GEAR SHIFT FORK

€ 19.00

3

2531048G00
ref: 3

CAM,GEAR SHIFT

€ 138.50

4

0422104089
ref: 4

PIN

€ 1.50

5

2531242F01
ref: 5

BOLT,GEAR SHIFT CAM PLATE

€ 5.50

6

2538113E00
ref: 6

PLATE,GEAR SHIFT CAM

€ 30.00

7

0913606147
ref: 7

SCREW(6X12)

€ 2.00

8

0926225006
ref: 8

BEARING(25X47X8)

€ 24.00

9

0926325018
ref: 9

BEARING(25X32X12)

€ 17.50

10

2535006G00
ref: 10

STOPPER,SHIFT CAM

€ 19.00

11

2535538F00
ref: 11

SPRING,GEAR SHIFT CAM STOPPER

€ 3.00

12

0911106041
ref: 12

BOLT(6X14.3)

€ 3.00

13

0821106141
ref: 13

WASHER

€ 2.50

14

2551048G00
ref: 14

SHAFT,GEAR SHIFT

€ 71.00

15

2551213E20
ref: 15

PLATE,GEAR SHIFT CAM DRIVE

€ 20.00

16

2567101011
ref: 16

STOPPER,GEAR SHIFT ARM

€ 3.00

17

0918114167
ref: 17

SHIM(14X22X1)

€ 3.50

18

0926314027
ref: 18

BEARING(14X20X12)

€ 11.00

19

0928314006
ref: 19

SEAL,OIL(14X22X6)

€ 6.50

20

0944017009
ref: 20

SPRING

€ 1.50

21

0944420001
ref: 21

SPRING

€ 5.00

22

083313114A
ref: 22

CIRCLIP

€ 2.00

23

2552048G00
ref: 23

ARM,GEAR SHIFT LINK

€ 39.00

24

2552548G00
ref: 24

ROD,GEAR SHIFT LINK

€ 12.00

25

2560048G00
ref: 25

LEVER ASSY,GEA

€ 71.00

26

2565238B00
ref: 26

RUBBER,GEAR SHIFT PEDAL

€ 7.50

26A

2552647000
ref: 26A

COVER,DUST

€ 3.50

27

2561703F10
ref: 27

SHAFT,GEAR SHIFT LEVER

€ 10.50

28

0914006025
ref: 28

NUT

€ 2.00

29

0916012011
ref: 29

WASHER(12.5X20X1)

€ 1.50

30

015000620A
ref: 30

BOLT

€ 2.00

31

0831000067
ref: 31

NUT

€ 2.50

32

083313112A
ref: 32

CIRCLIP

€ 2.00

33

6839238B00
ref: 33

LABEL,GEAR SHIFT

€ 2.50

34

3773048G01
ref: 34

VERSN. SENSOR

€ 83.50

35

0928026005
ref: 35

O RING(D:2.4,ID:26.2)

€ 2.50

36

071200516A
ref: 36

BOLT

€ 1.50

all assemblies
