HANDLEBAR (MODEL K6/K7/K8)

VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

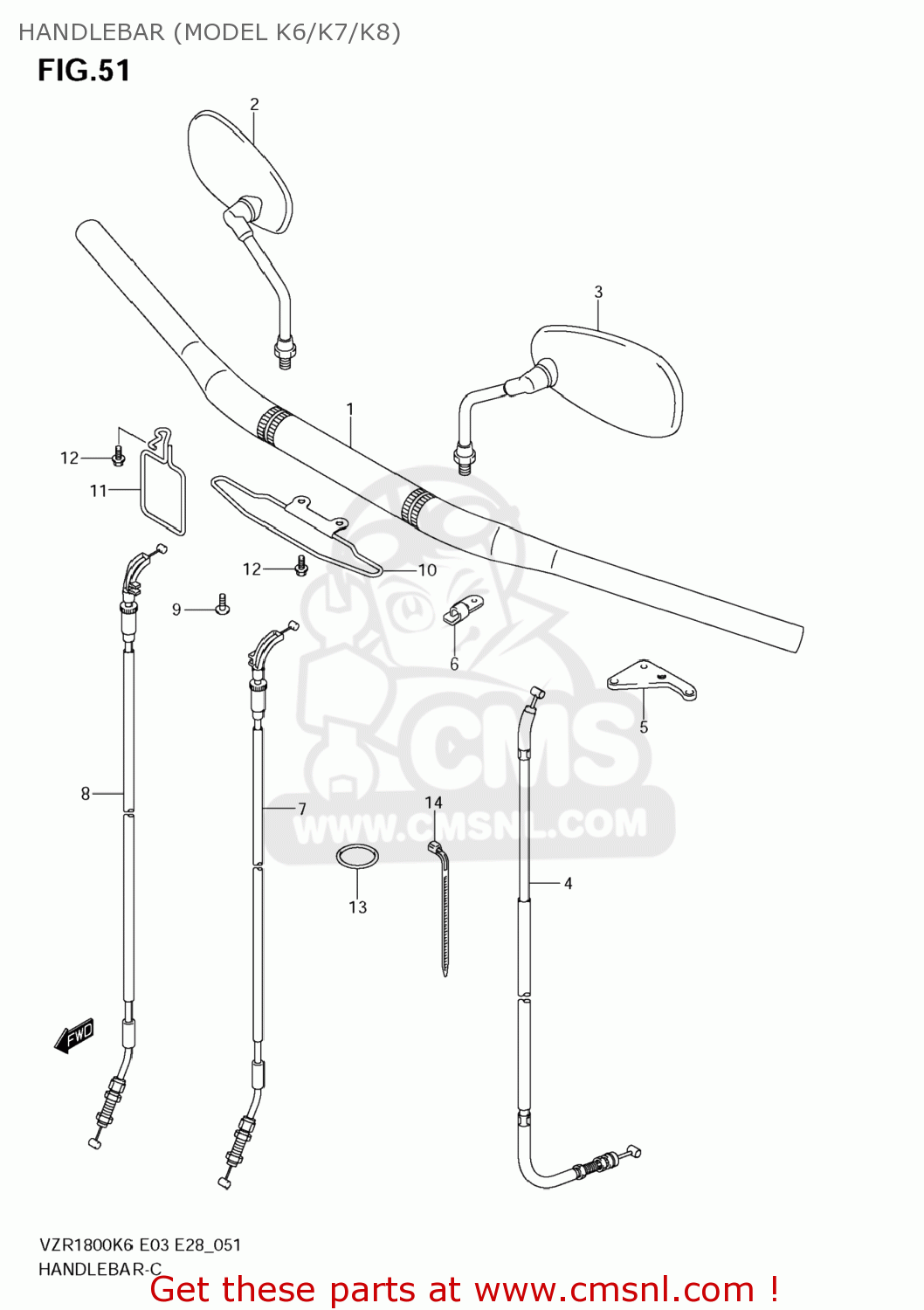

Handlebar (model k6/k7/k8) diagram VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

HANDLEBAR (MODEL K6/K7/K8) VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

HANDLEBAR (MODEL K6/K7/K8) VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

5611048G00
ref: 1

HANDLEBAR

€ 167.50

2-1

5650014G10
ref: 2-1
56500-14G20

MIRROR ASSY,RE

€ 79.50

2-2

5650014G11
ref: 2-2
56500-14G20

MIRROR ASSY,RE

€ 79.50

3-1

5660014G10
ref: 3-1
56600-14G20

MIRROR ASSY,RE

€ 79.50

3-2

5660014G11
ref: 3-2
56600-14G20

MIRROR ASSY,RE

€ 79.50

4-1

5820048G00
ref: 4-1

CABLE ASSY,CLUTCH

€ 57.50

4-2

5820048G10
ref: 4-2
58200-48G11

CABLE ASSY,CLU

€ 39.00

5

5863448G00
ref: 5

STOPPER,CLUTCH CABLE NO.1

€ 10.00

6

5863548G00
ref: 6
58635-48G01

STOPPER,CLUTCH

€ 9.00

7-1

5830048G00
ref: 7-1

CABLE ASSY,THROTTLE NO.1

€ 58.50

7-2

5830048G20
ref: 7-2
58300-48G21

CABLE ASSY,THR

€ 51.50

8-1

5830048G10
ref: 8-1

CABLE ASSY,THROTTLE NO.2

€ 52.50

8-2

5830048G30
ref: 8-2

CABLE ASSY,THROTTLE NO.2

€ 52.50

9

021420508A
ref: 9

SCREW

€ 2.00

10-1

5862048G00
ref: 10-1

GUIDE,CABLE

€ 24.50

10-2

5862048G20
ref: 10-2

GUIDE,CABLE

€ 37.50

10-3

5862048G10
ref: 10-3

GUIDE,CABLE

€ 26.50

11-1

5862048GA0
ref: 11-1

GUIDE,CABLE

€ 27.50

11-2

5862048GB0
ref: 11-2

GUIDE,CABLE

€ 17.50

12

015500612A
ref: 12

BOLT

€ 2.50

13

0928049003
ref: 13

O RING(D:3.1,ID:49.4)

€ 4.50

14

0940714403
ref: 14

CLAMP(L:125)

€ 2.50
