FRAME HEAD COVER (VZR1800K8/NK8)

VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

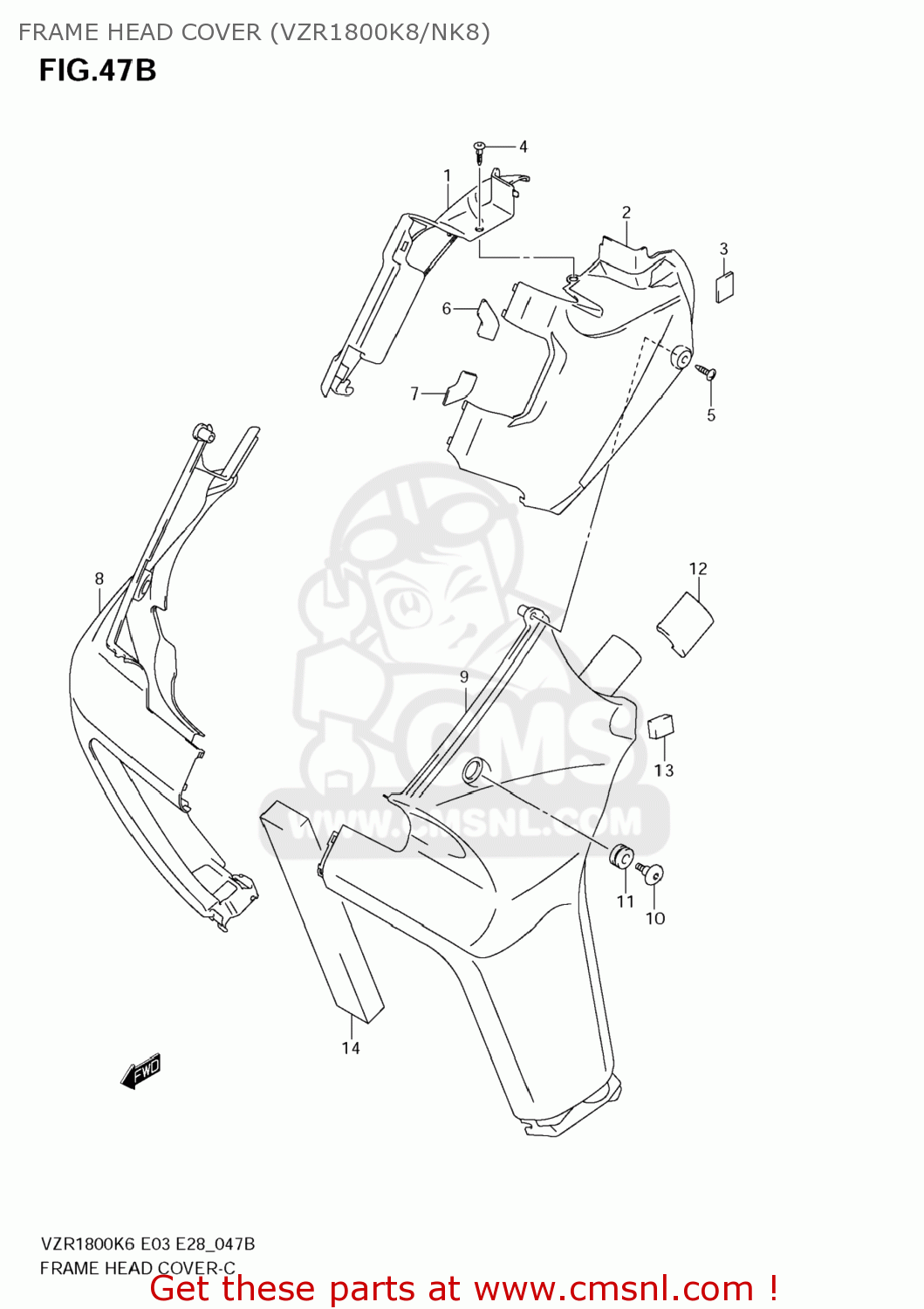

Frame head cover (vzr1800k8/nk8) diagram VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

FRAME HEAD COVER (VZR1800K8/NK8) VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

FRAME HEAD COVER (VZR1800K8/NK8) VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

4735048G00YAY
ref: 1-1

COVER,FRAME HEAD,R(BLACK)

€ 292.50

1-2

4735048G00YHG
ref: 1-2

COVER,FRAME HEAD,R(GRAY)

€ 42.00

1-3

4735048G00YME
ref: 1-3

COVER,FRAME HEAD,R(ORANGE)

€ 98.00

2-1

4736148G00YAY
ref: 2-1

COVER,FRAME HEAD,L(BLACK)

€ 279.00

2-2

4736148G00YHG
ref: 2-2

COVER,FRAME HEAD,L(GRAY)

€ 100.50

2-3

4736148G00YME
ref: 2-3

COVER,FRAME HEAD,L(ORANGE)

€ 98.00

3

1779839G00
ref: 3

CUSHION,RADIATOR COVER INNER

€ 5.50

4

09409063145PK
ref: 4

CLIP(BLACK)

€ 3.50

5

035410516A
ref: 5

SCREW

€ 1.50

6

4735248G00
ref: 6

TAPE,HEAD COVER UPR

€ 4.00

7

4735348G01
ref: 7

TAPE,HEAD COVER LWR

€ 5.00

8-1

4755148G00YAY
ref: 8-1

COVER,FRAME BODY UPR,R

€ 190.50

8-2

4755148G00YHG
ref: 8-2

COVER,FRAME BODY UPR,R

€ 148.00

8-3

4755148G00YME
ref: 8-3

COVER,FRAME BODY UPR,R

€ 154.00

9-1

4756148G00YAY
ref: 9-1

COVER,FRAME BODY UPR,L

€ 190.50

9-2

4756148G00YHG
ref: 9-2

COVER,FRAME BODY UPR,L

€ 131.50

9-3

4756148G00YME
ref: 9-3

COVER,FRAME BODY UPR,L

€ 153.50

10

0913906126
ref: 10

SCREW(6X20)

€ 4.00

11

0932009016
ref: 11

CUSHION

€ 2.50

12

6319125C00
ref: 12

CUSHION

€ 2.50

13

1779839G00
ref: 13

CUSHION,RADIATOR COVER INNER

€ 5.50

14

4755248G00
ref: 14

CUSHION,FRAME BODY COVER,R

€ 8.50
