FRAME

VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

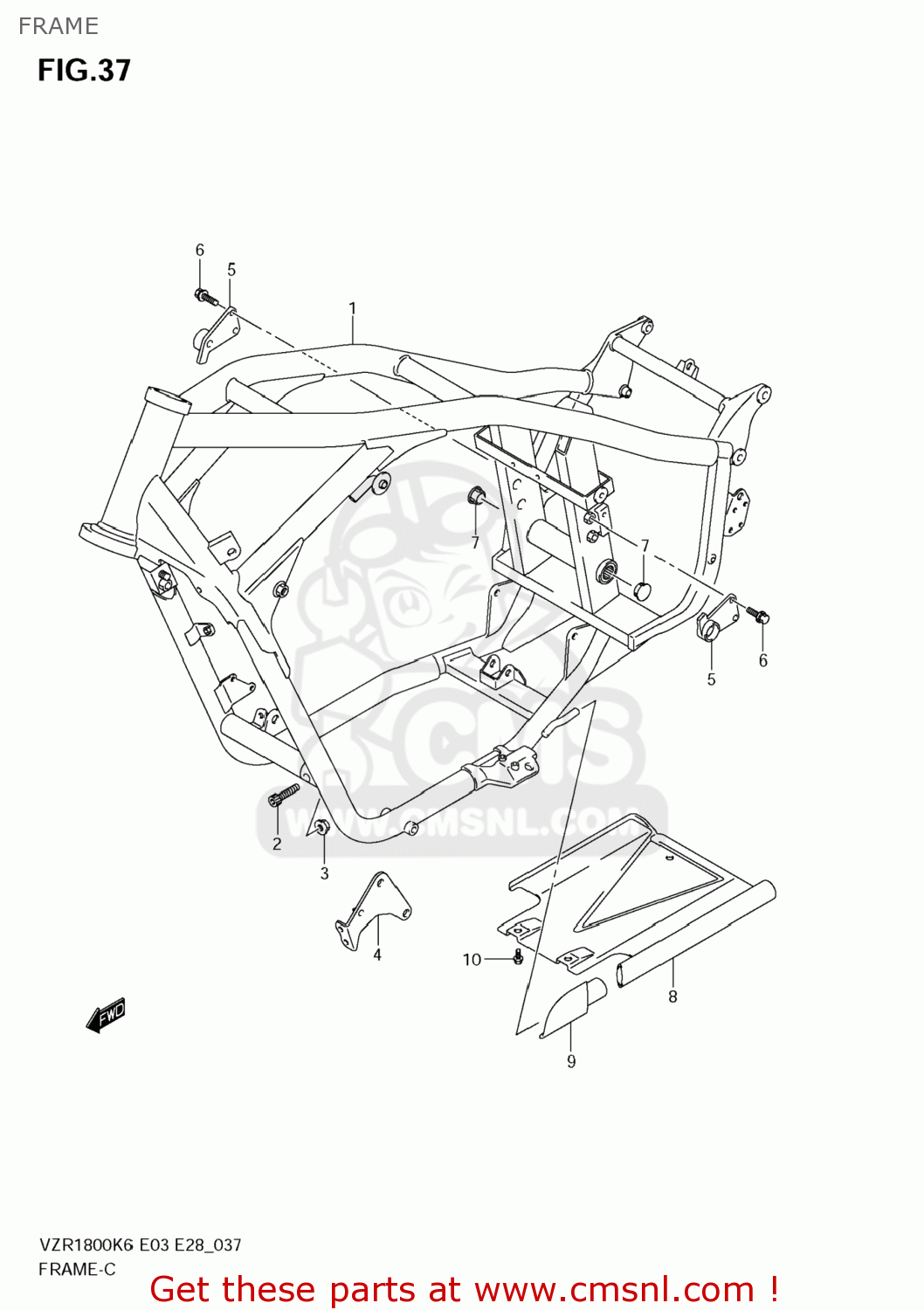

Frame diagram VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

4110048G00019
ref: 1-1
41100-48G10-019

FRAME (BLACK)

€ 3,598.00

1-2

4110048G10019
ref: 1-2

FRAME(BLACK)

€ 3,598.00

071301035B
ref: 2

BOLT

€ 3.50

083193110A
ref: 3

NUT

€ 3.00

4192048G00
ref: 4
41920-48G10

PLATE,ENG MTG

€ 24.00

4193148G00
ref: 5

PLATE,ENG MTG RR

€ 77.50

015800830A
ref: 6

BOLT

€ 2.50

4358548G00
ref: 7

CAP,ENG MTG BOLT

€ 12.00

4256048G00
ref: 8

COVER,UNDER

€ 108.00

4256748G00
ref: 9

RUBBER,UNDER COVER

€ 16.00

015500612A
ref: 10

BOLT

€ 2.50
