TURNSIGNAL LAMP (VZR1800K6/K7)

VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

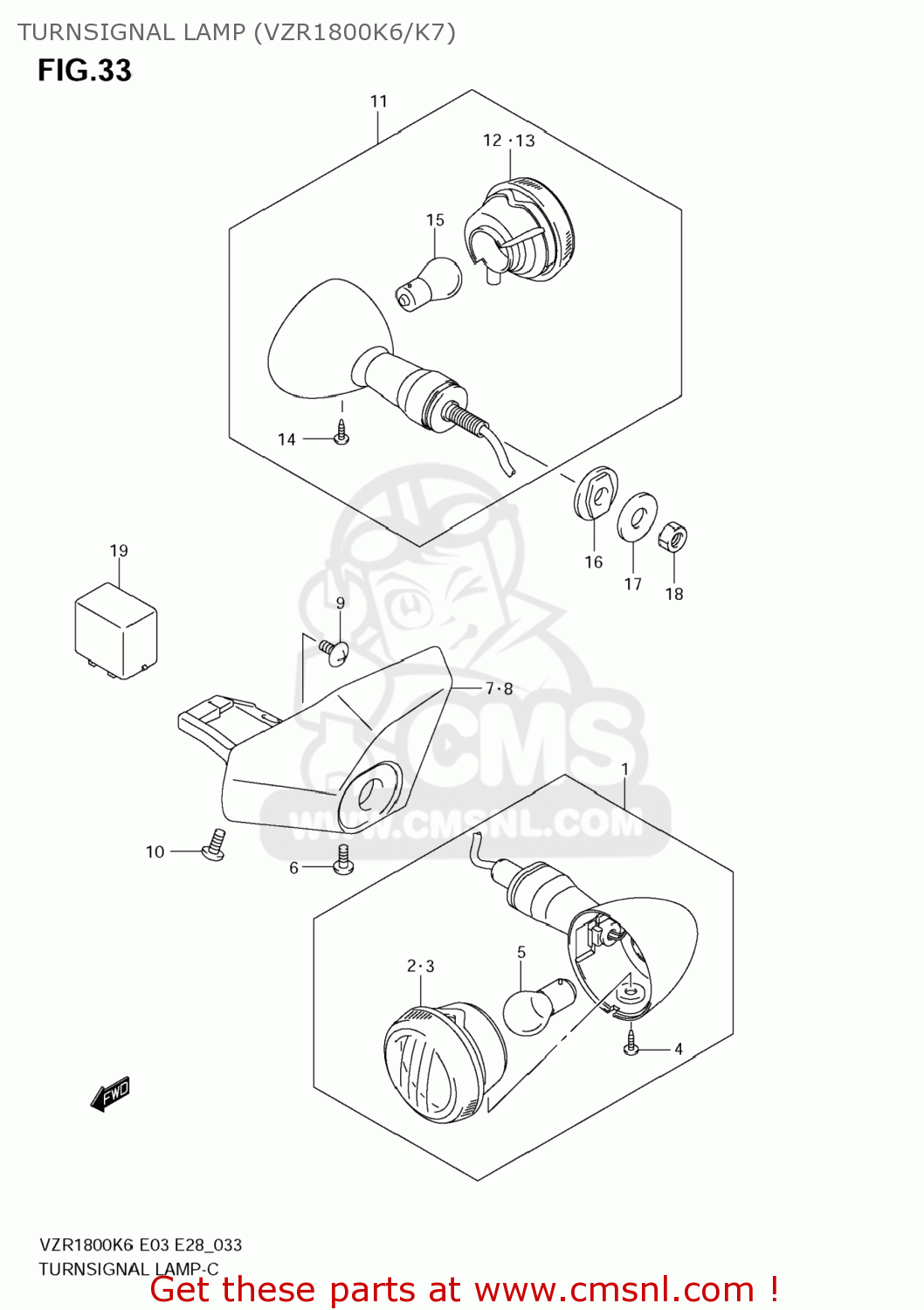

Turnsignal lamp (vzr1800k6/k7) diagram VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

TURNSIGNAL LAMP (VZR1800K6/K7) VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

TURNSIGNAL LAMP (VZR1800K6/K7) VZR1800Z BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

3560138AF0
ref: 1-1

LAMP ASSY,FR TURN SIGNAL,R

€ 68.50

1-2

3560238AF0
ref: 1-2

LAMP ASSY,FR TURN SIGNAL,L

€ 68.50

2

3561038AA0
ref: 2

LENS

€ 19.50

3

3563038AA0
ref: 3

LENS

€ 19.50

4

3562338AA0
ref: 4

SCREW(4X10)

€ 4.00

5

0947112083
ref: 5
09471-12128

BULB(12V21/5W)

€ 6.00

6

0214206127
ref: 6

SCREW 6X12

€ 1.50

7

3567148G00
ref: 7

STAY,FR TURNSIGNAL,R

€ 341.00

8

3568148G00
ref: 8

STAY,FR TURNSIGNAL,L

€ 338.50

9

0913908007
ref: 9

SCREW(8X16)

€ 4.50

10

071200612A
ref: 10

BOLT

€ 3.50

11-1

3560348EC0
ref: 11-1

LAMP ASSY,RR TURNSIGNAL,R

€ 68.50

11-2

3560448EC0
ref: 11-2

LAMP ASSY,RR TURNSIGNAL,L

€ 101.50

12

3563038AE1
ref: 12

LENS

€ 19.50

13

3561038AE1
ref: 13

LENS

€ 19.50

14

3562338AA0
ref: 14

SCREW(4X10)

€ 4.00

15

0947112045
ref: 15

BULB(12V21W)

€ 5.00

16

3569517C00
ref: 16

SPACER,RR TURNSIGNAL

€ 3.00

17

0916010501
ref: 17

WASHER(10.5X30X2.3)

€ 2.50

18

083100010A
ref: 18

NUT

€ 2.00

19

3861003F00
ref: 19

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50
