CRANKCASE COVER (DR-Z400EY/EK1/EK2/EK3/EK4)

DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E

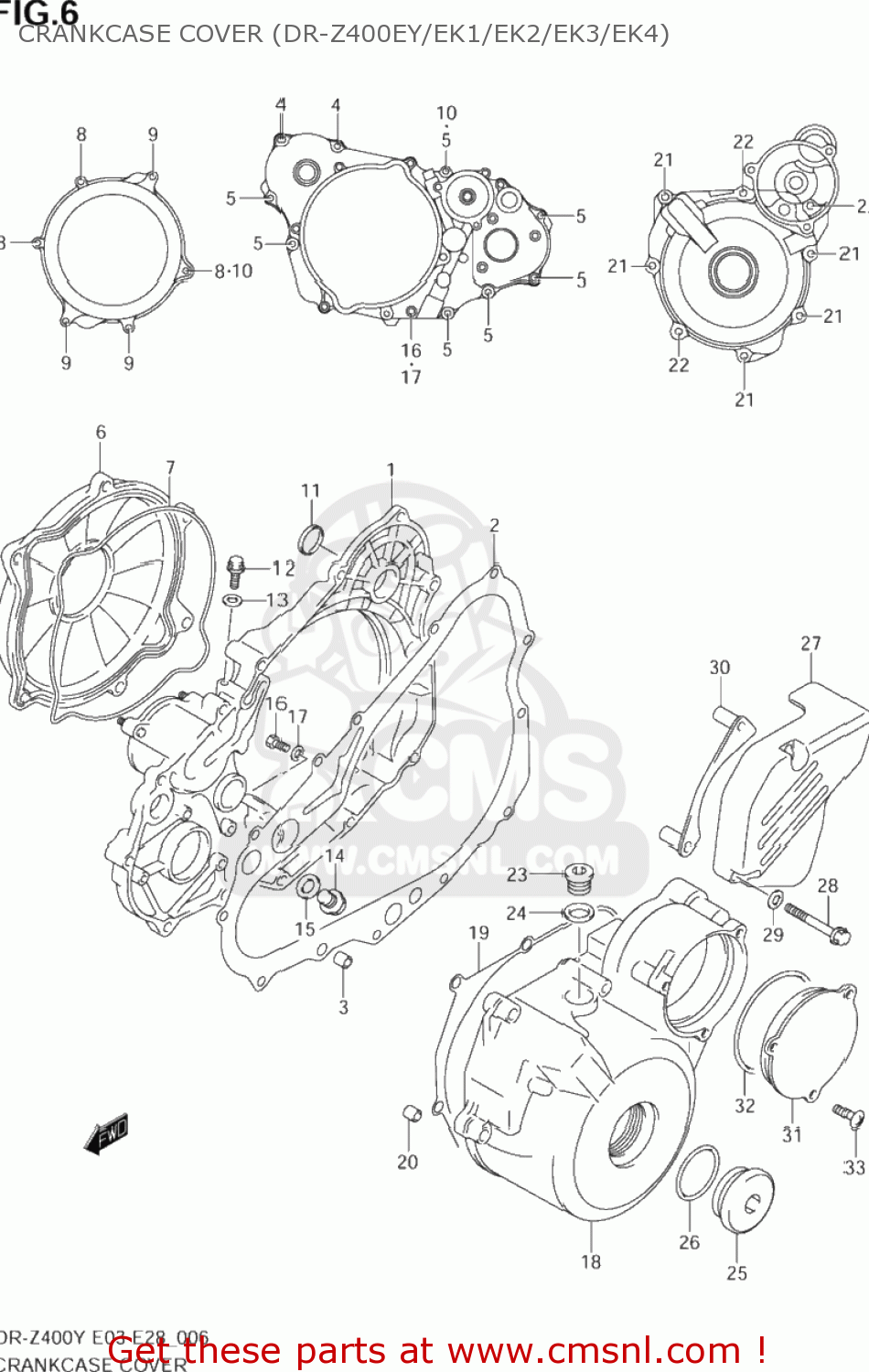

Crankcase cover (dr-z400ey/ek1/ek2/ek3/ek4) diagram DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E

CRANKCASE COVER (DR-Z400EY/EK1/EK2/EK3/EK4) DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E
CRANKCASE COVER (DR-Z400EY/EK1/EK2/EK3/EK4) DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E
CRANKCASE COVER (DR-Z400EY/EK1/EK2/EK3/EK4) DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E
prices are in EUR
ref
part #
description
quantity
1-1
1134129F00
ref: 1-1
COVER,CLUTCH INNER
€ 222.50
1-2
1134129F50
ref: 1-2
COVER,CLUTCH INNER
1134129F50
€ 180.50
2
1148229F00
ref: 2
GASKET,CLUTCH COVER (NAS)
1148229F00
€ 17.50
3
0421109149
ref: 3
PIN
0421109149
€ 2.00
4
0154706203
ref: 4
01547-0620B
SCREW
0154706203
€ 2.50
5
0154706303
ref: 5
01547-0630B
BOLT,G/S SWITC
0154706303
€ 3.00
6-1
1137129F00
ref: 6-1
COVER,CLUTCH OUTER
1137129F00
€ 161.50
6-2
1137129F50
ref: 6-2
COVER,CLUTCH OUTER
1137129F50
€ 95.00
7
1148429F00
ref: 7
O RING,CLUTCH COVER OUTER
1148429F00
€ 17.50
8
0154706203
ref: 8
01547-0620B
SCREW
0154706203
€ 2.50
9
0154706553
ref: 9
01547-0655B
BOLT
0154706553
€ 3.00
10
0916806023
ref: 10
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
11
1134215D00
ref: 11
PLUG,CLUTCH COVER KICK
1134215D00
€ 7.00
12
0154706123
ref: 12
01547-0612B
BOLT
0154706123
€ 2.00
13
0916806023
ref: 13
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
14
0924712006
ref: 14
PLUG(12X10)
0924712006
€ 2.50
15
0916812002
ref: 15
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
16-1
0912806044
ref: 16-1
SCREW(6X10)
0912806044
€ 1.50
16-2
0155006103
ref: 16-2
01550-0610A
BOLT
0155006103
€ 2.50
17
0916806004
ref: 17
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
18-1
1135129F10
ref: 18-1
COVER,MAGNETO
1135129F10
€ 292.00
18-2
1135129F60
ref: 18-2
COVER,MAGNETO
1135129F60
€ 163.50
19
1148329F00
ref: 19
GASKET,MAGNETO COVER (NAS)
1148329F00
€ 11.00
20
0421109149
ref: 20
PIN
0421109149
€ 2.00
21
0154706303
ref: 21
01547-0630B
BOLT,G/S SWITC
0154706303
€ 3.00
22
0154706403
ref: 22
01547-0640B
BOLT
0154706403
€ 3.00
23-1
0924814005
ref: 23-1
PLUG,14X12
0924814005
€ 5.00
23-2
0924814011
ref: 23-2
09248-14005
PLUG
0924814011
€ 5.00
24
0916814002
ref: 24
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
25-1
0925936021
ref: 25-1
PLUG
0925936021
€ 11.00
25-2
092593601620H
ref: 25-2
PLUG(SILVER)
092593601620H
€ 10.50
26
0928033004
ref: 26
O RING(D:3.1,ID:32.7)
0928033004
€ 2.50
27-1
1136029F00
ref: 27-1
11360-29F11
COVER COMP,ENGINE SPROCKET
€ 49.50
27-2
1136029F11
ref: 27-2
COVER,ENGINE SPROCKET
1136029F11
€ 49.50
27-3
1136029F50
ref: 27-3
COVER,ENGINE SPROCKET
1136029F50
€ 49.50
28
0154706503
ref: 28
01547-0650B
BOLT
0154706503
€ 3.50
29
0916006126
ref: 29
WASHER(6.5X14X2)
0916006126
€ 2.00
30
2764029F00
ref: 30
PLATE,FR CHAIN GUIDE
2764029F00
€ 10.50
31-1
1135229F00
ref: 31-1
COVER,STARTER IDLE GEAR
€ 27.50
31-2
1135229F50
ref: 31-2
COVER,STARTER IDLE GEAR
1135229F50
€ 19.00
32
0928071005
ref: 32
09280-71004
O-RING
0928071005
€ 19.00
33
0214206163
ref: 33
02142-0616A
SCREW
0214206163
€ 2.50
