REAR SWINGING ARM

DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E

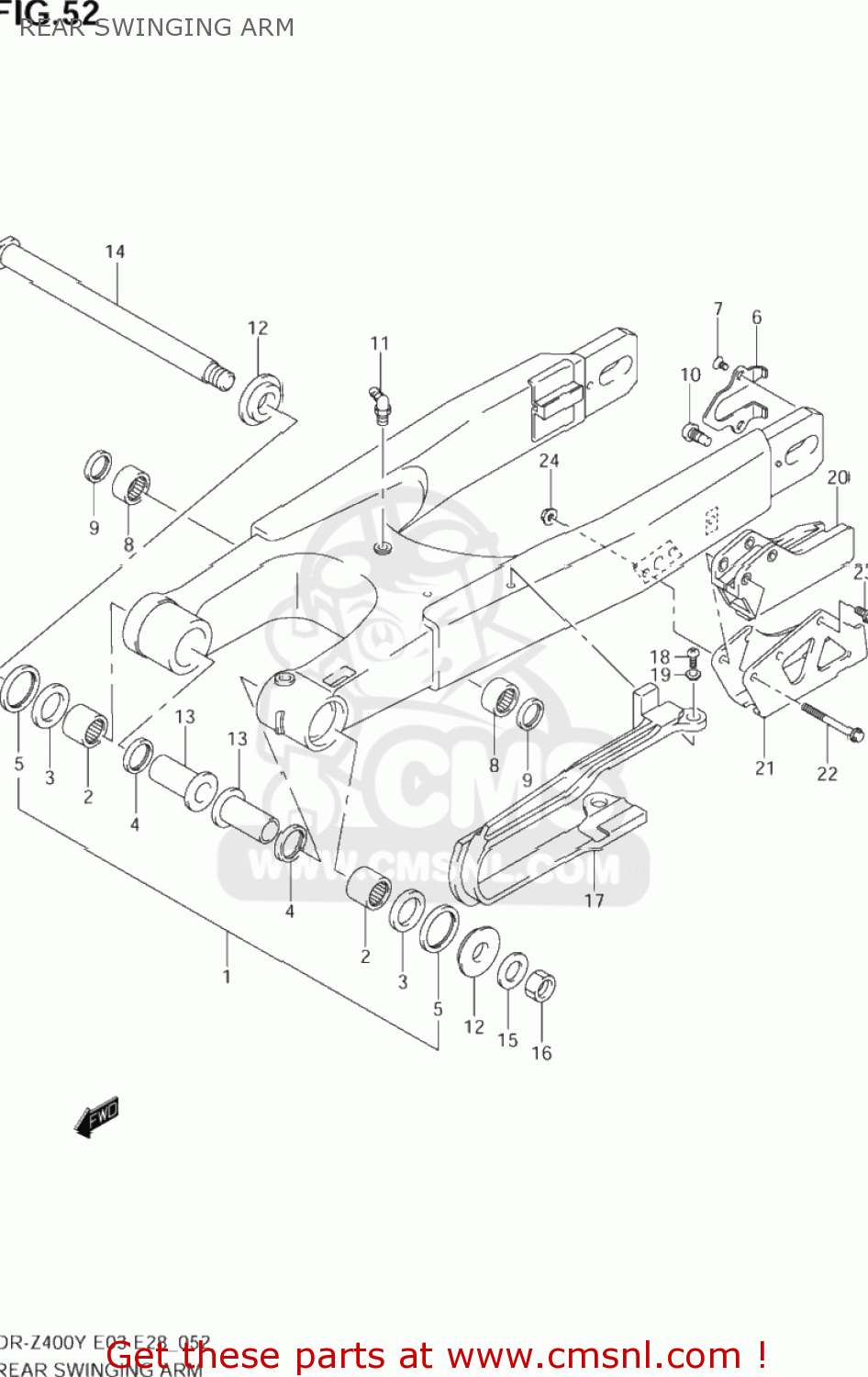

Rear swinging arm diagram DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E

REAR SWINGING ARM DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E

REAR SWINGING ARM DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E

prices are in EUR

ref

part #

description

quantity

1

6100029F00
ref: 1

SWING ARM ASSEMBLY,REAR

€ 1,300.50

2

0926322017
ref: 2

BEARING(22X29X30)

€ 18.50

3

0926322064
ref: 3

BEARING(22X35X2)

€ 19.00

4

0928522001
ref: 4

SEAL,OIL(22X29X4)

€ 5.00

5

6126236E00
ref: 5

SEAL,RR SWGARM PIVOT OUTER

€ 3.50

6

6112829E00
ref: 6

PLATE,RR SWING ARM AXLE

€ 8.50

7

0912605009
ref: 7

SCREW(5X8)

€ 2.50

8

0926320086
ref: 8

BEARING(20X27X15)

€ 12.50

9

6262414500
ref: 9

SEAL,CUSHION LEVER DUST

€ 3.50

10

6143113E00
ref: 10

STOPPER,CHAIN ADJUSTER

€ 7.00

11

0835131008
ref: 11
08351-3100A

NIPPLE,GREASE

€ 10.50

12

6125044E00
ref: 12

SPACER,SWINGINGARM PIVOT OUTER

€ 8.00

13

6125236E00
ref: 13

SPACER,SWGARM PIVOT INNER

€ 20.00

14

6121129F00
ref: 14

SHAFT,RR SWINGINGARM PIVOT

€ 34.50

15

0832201163
ref: 15
08322-0116A

WASHER, FIXED DRIVE FACE

€ 2.00

16

0915916007
ref: 16

NUT

€ 10.50

17

6127329F00
ref: 17

BUFFER,CHAIN TOUCH DEFENSE

€ 43.50

18

0211205083
ref: 18
02112-0508A

SCREW

€ 2.00

19

0916905022
ref: 19

WASHER

€ 3.50

20

6134136E30
ref: 20
61341-37F00

GUIDE,CHAIN

€ 43.00

21

6134236E30
ref: 21

PLATE,CHAIN GUIDE

€ 31.00

22

0154706503
ref: 22
01547-0650B

BOLT

€ 3.50

23

0154706123
ref: 23
01547-0612B

BOLT

€ 2.00

24

0831931063
ref: 24
08319-3106A

NUT

€ 2.50
