Buy Suzuki unknown Parts Online


HANDLEBAR

DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E

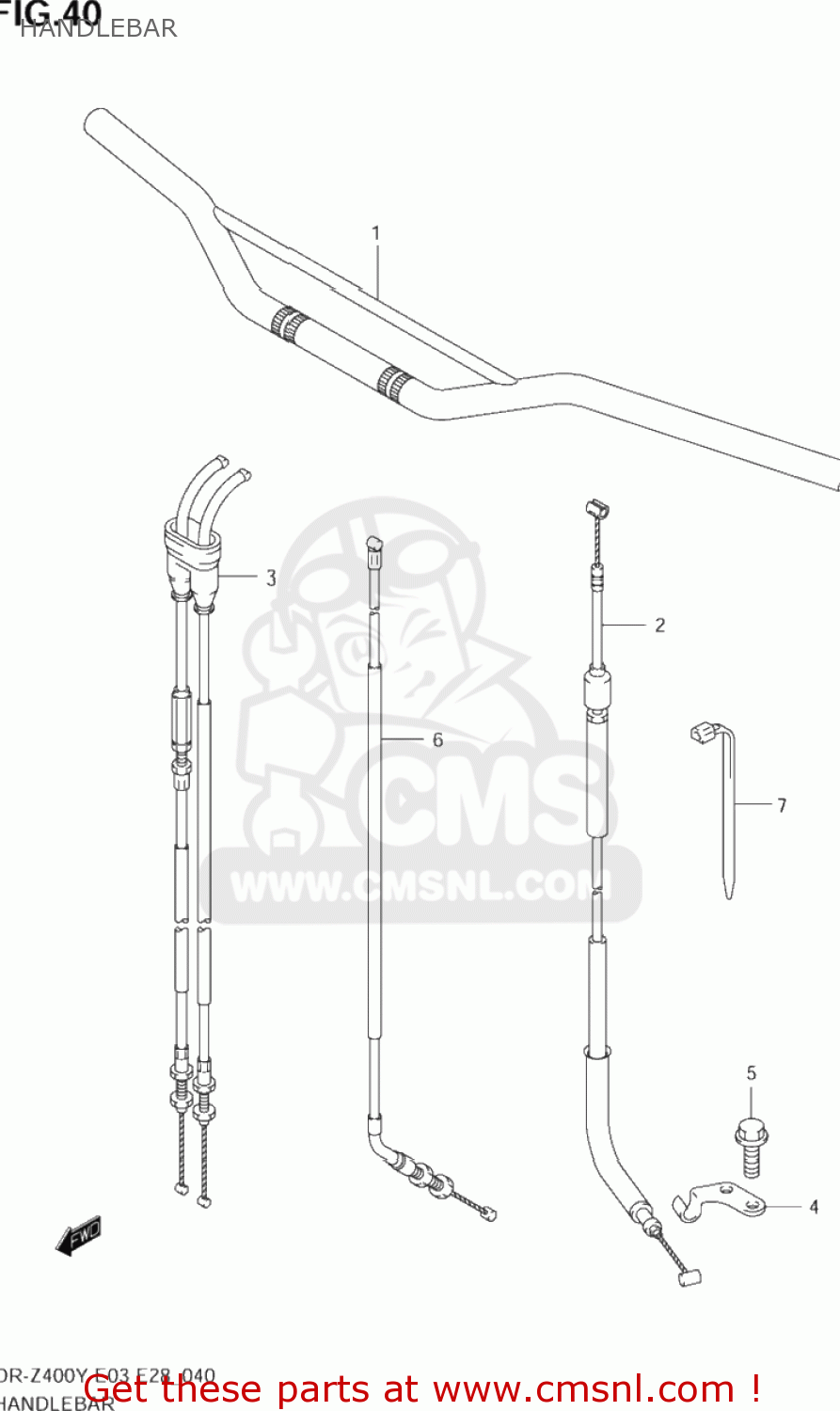

Handlebar diagram DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E

HANDLEBAR DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E
HANDLEBAR DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E
HANDLEBAR DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E
prices are in EUR
ref
part #
description
quantity
1
5611029F0013L
ref: 1
HANDLEBAR(SILVER)
5611029F0013L
€ 257.50
2-1
5820029F00
ref: 2-1
CABLE ASSY,CLUTCH
5820029F00
€ 32.50
2-2
5820029F10
ref: 2-2
CABLE ASSY,CLUTCH
5820029F10
€ 32.50
3-1
5830129F00
ref: 3-1
58301-29F01
CABLE SET,THROTTLE
€ 63.50
3-2
5830129F01
ref: 3-2
CABLE ASSY,THROTTLE
5830129F01
€ 63.50
3-3
5830129F10
ref: 3-3
58301-29F11
CABLE SET,THROTTLE
5830129F10
€ 65.00
4
5863429F00
ref: 4
STOPPER,CLUTCH CABLE
5863429F00
€ 8.00
5
0910306092
ref: 5
BOLT(6X15)
€ 2.50
6
5890029F00
ref: 6
CABLE ASSY,DECOMP
5890029F00
€ 44.00
7-1
0940725401
ref: 7-1
CLAMP(L:235)
0940725401
€ 4.00
7-2
0940714407
ref: 7-2
CLAMP(L:145)
0940714407
€ 4.00
