CRANKCASE COVER (DR-Z4OOY/K1/K2/K3/K4)

DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E

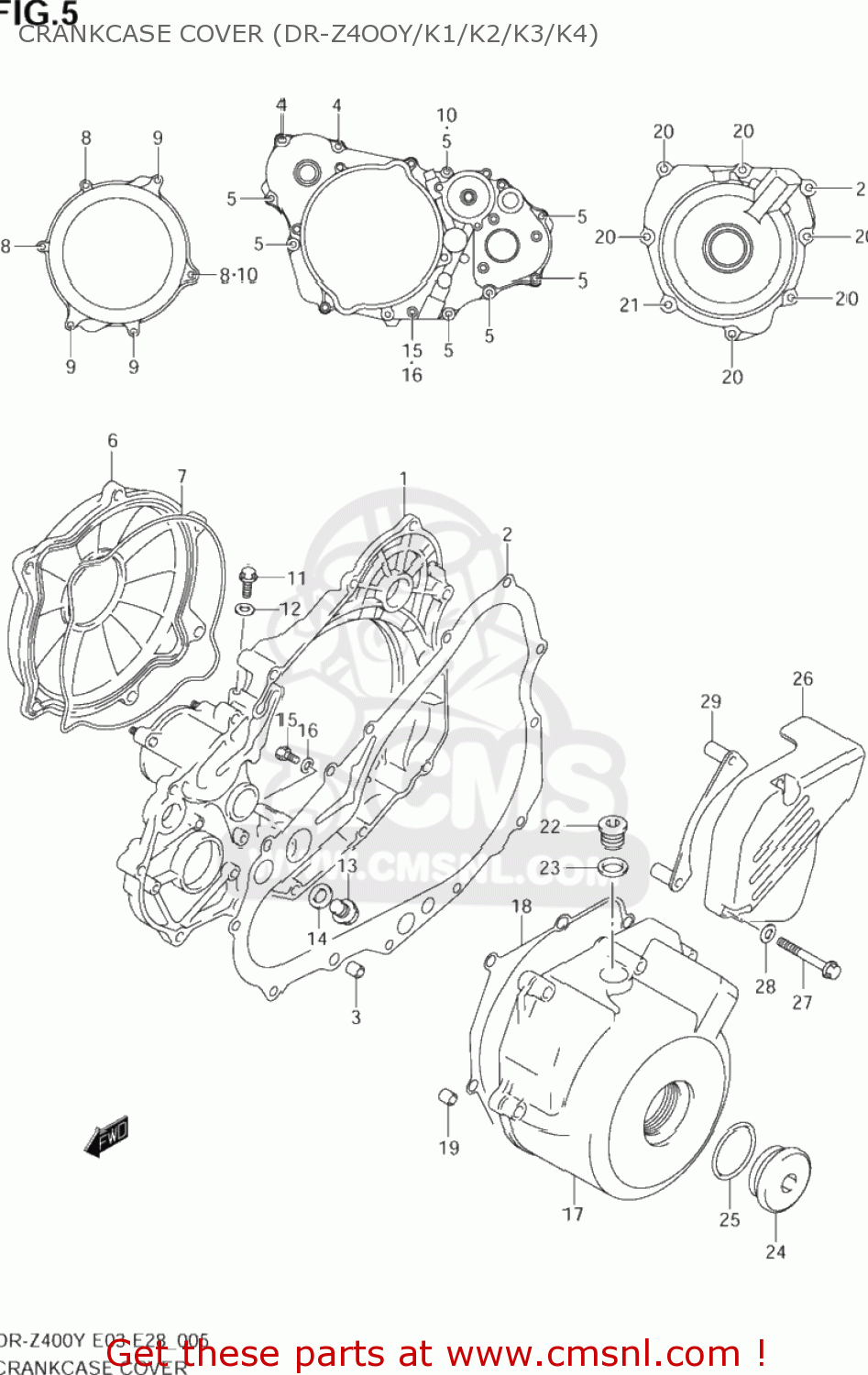

Crankcase cover (dr-z4ooy/k1/k2/k3/k4) diagram DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E

CRANKCASE COVER (DR-Z4OOY/K1/K2/K3/K4) DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E
CRANKCASE COVER (DR-Z4OOY/K1/K2/K3/K4) DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E
CRANKCASE COVER (DR-Z4OOY/K1/K2/K3/K4) DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E
prices are in EUR
ref
part #
description
quantity
1-1
1134129F00
ref: 1-1
COVER,CLUTCH INNER
€ 222.50
1-2
1134129F50
ref: 1-2
COVER,CLUTCH INNER
1134129F50
€ 180.50
2
1148229F00
ref: 2
GASKET,CLUTCH COVER (NAS)
1148229F00
€ 17.50
3
0421109149
ref: 3
PIN
0421109149
€ 2.00
4
0154706203
ref: 4
01547-0620B
SCREW
0154706203
€ 2.50
5
0154706303
ref: 5
01547-0630B
BOLT,G/S SWITC
0154706303
€ 3.00
6-1
1137129F00
ref: 6-1
COVER,CLUTCH OUTER
1137129F00
€ 161.50
6-2
1137129F50
ref: 6-2
COVER,CLUTCH OUTER
1137129F50
€ 95.00
7
1148429F00
ref: 7
O RING,CLUTCH COVER OUTER
1148429F00
€ 17.50
8
0154706203
ref: 8
01547-0620B
SCREW
0154706203
€ 2.50
9
0154706553
ref: 9
01547-0655B
BOLT
0154706553
€ 3.00
10
0916806023
ref: 10
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
11
0154706123
ref: 11
01547-0612B
BOLT
0154706123
€ 2.00
12
0916806023
ref: 12
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
13
0924712006
ref: 13
PLUG(12X10)
0924712006
€ 2.50
14
0916812002
ref: 14
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
15-1
0912806044
ref: 15-1
SCREW(6X10)
0912806044
€ 1.50
15-2
0155006103
ref: 15-2
01550-0610A
BOLT
0155006103
€ 2.50
16
0916806004
ref: 16
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
17-1
1135129F00
ref: 17-1
COVER,MAGNETO
1135129F00
€ 150.50
17-2
1135129F50
ref: 17-2
COVER,MAGNETO
€ 101.00
18
1148329F00
ref: 18
GASKET,MAGNETO COVER (NAS)
1148329F00
€ 11.00
19
0421109149
ref: 19
PIN
0421109149
€ 2.00
20
0154706303
ref: 20
01547-0630B
BOLT,G/S SWITC
0154706303
€ 3.00
21
0154706403
ref: 21
01547-0640B
BOLT
0154706403
€ 3.00
22-1
0924814005
ref: 22-1
PLUG,14X12
0924814005
€ 5.00
22-2
0924814011
ref: 22-2
09248-14005
PLUG
0924814011
€ 5.00
23
0916814002
ref: 23
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
24-1
0925936021
ref: 24-1
PLUG
0925936021
€ 11.00
24-2
092593601620H
ref: 24-2
PLUG(SILVER)
092593601620H
€ 10.50
25
0928033004
ref: 25
O RING(D:3.1,ID:32.7)
0928033004
€ 2.50
26-1
1136029F00
ref: 26-1
11360-29F11
COVER COMP,ENGINE SPROCKET
€ 49.50
26-2
1136029F11
ref: 26-2
COVER,ENGINE SPROCKET
1136029F11
€ 49.50
26-3
1136029F50
ref: 26-3
COVER,ENGINE SPROCKET
1136029F50
€ 49.50
27
0154706503
ref: 27
01547-0650B
BOLT
0154706503
€ 3.50
28
0916006126
ref: 28
WASHER(6.5X14X2)
0916006126
€ 2.00
29
2764029F00
ref: 29
PLATE,FR CHAIN GUIDE
2764029F00
€ 10.50
