RADIATOR (MODEL K2/K3/K4)

DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E

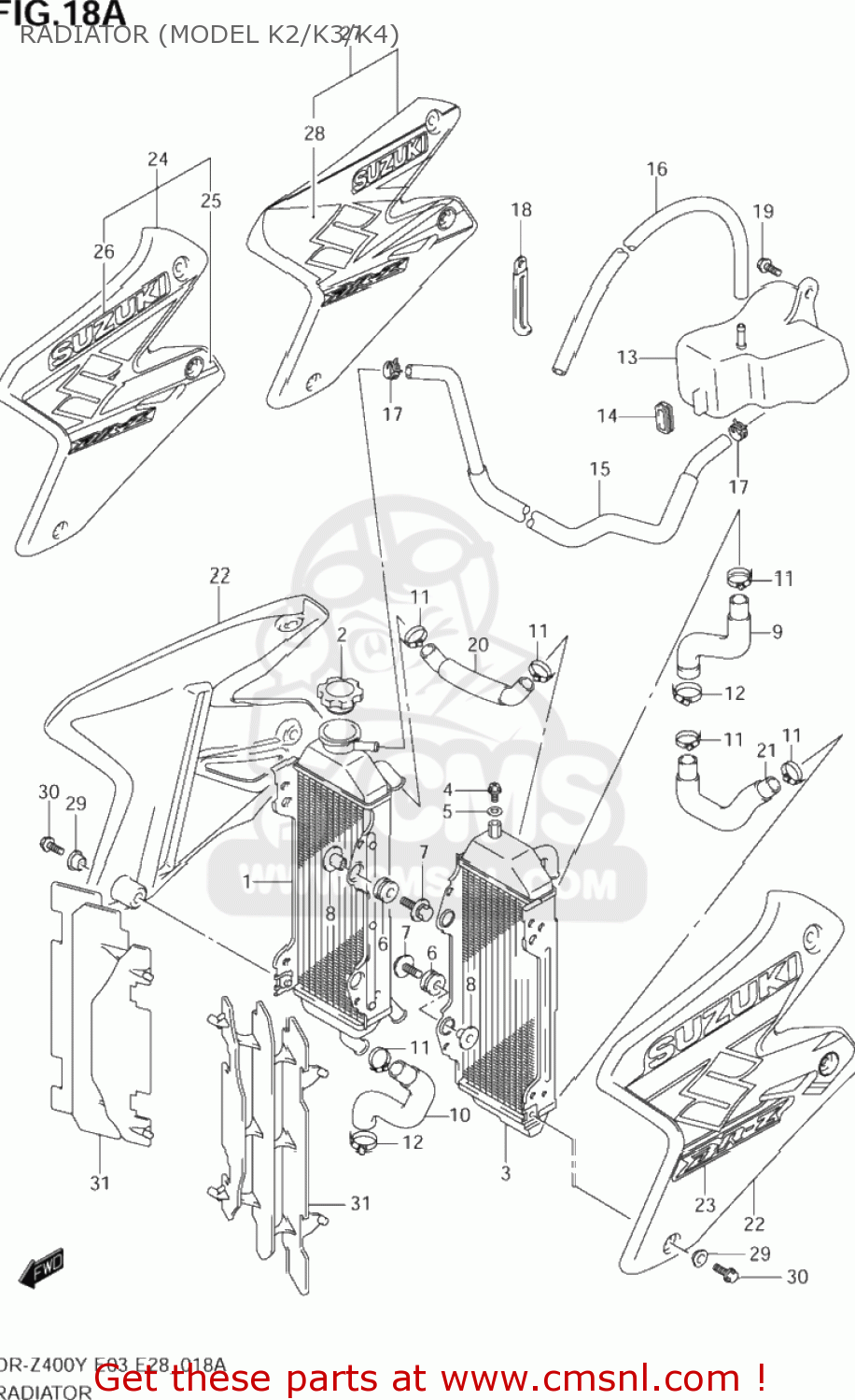

Radiator (model k2/k3/k4) diagram DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E

RADIATOR (MODEL K2/K3/K4) DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E
RADIATOR (MODEL K2/K3/K4) DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E
RADIATOR (MODEL K2/K3/K4) DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E
prices are in EUR
ref
part #
description
quantity
1
1771029F20
ref: 1
RADIATOR,WATER,R
1771029F20
€ 371.00
2
1773012C30
ref: 2
CAP,RADIATOR
1773012C30
€ 33.50
3
1772029F20
ref: 3
RADIATOR,WATER,L
1772029F20
€ 396.00
4
1756850F00
ref: 4
UNION BOLT,AIR VENT
1756850F00
€ 3.50
5
0916806026
ref: 5
GASKET(6.4X11.5X0.8) (NAS)
0916806026
€ 3.50
6
1778719A00
ref: 6
CUSHION,RADIATOR LWR
1778719A00
€ 3.50
7
0911606147
ref: 7
BOLT(6X25)
0911606147
€ 4.00
8
0918006243
ref: 8
SPACER(6.5X10.5X14.1)
0918006243
€ 4.50
9-1
1785129F20
ref: 9-1
17851-29F21
INLET HOSE
€ 20.50
9-2
1785129F21
ref: 9-2
HOSE,RADIATOR INLET
€ 20.50
10
1785229F20
ref: 10
HOSE,RADIATOR OUTLET
1785229F20
€ 22.50
11
0940228511
ref: 11
CLAMP
0940228511
€ 8.50
12
0940232511
ref: 12
CLAMP
0940232511
€ 11.50
13
1791129F11
ref: 13
TANK,RESERVOIR
1791129F11
€ 39.50
14
1791329F00
ref: 14
CUSHION,RESERVOIR TANK
1791329F00
€ 3.00
15
1798129F01
ref: 15
HOSE,RESERVOIR TANK INLET
1798129F01
€ 13.50
16
093525090100B
ref: 16
HOSE(5X9X2000)
093525090100B
€ 19.50
17
0940108411
ref: 17
CLIP
0940108411
€ 3.00
18-1
0940408205
ref: 18-1
CLAMP(L:45 T:0.6)
0940408205
€ 3.00
18-2
0940406432
ref: 18-2
CLAMP(L:65)
0940406432
€ 2.50
19
0155006123
ref: 19
01550-0612A
BOLT
0155006123
€ 2.50
20
1785329F10
ref: 20
HOSE,RADIATOR JOINT
€ 17.00
21
1785429F20
ref: 21
HOSE,RADIATOR JOINT LWR
€ 16.50
22-1
1776029F40YU1
ref: 22-1
COVER,RADIATOR,R
1776029F40YU1
€ 55.50
22-2
1777029F40YU1
ref: 22-2
COVER,RADIATOR,L
€ 68.00
23-1
6866029F00GY7
ref: 23-1
TAPE SET,RADIATOR COVER,R
€ 42.00
23-2
6867029F00GY7
ref: 23-2
TAPE SET,RADIATOR COVER,L
€ 43.00
24-1
1776029F50YU1
ref: 24-1
COVER,RADIATOR,R(YELLOW)
€ 116.00
24-2
1777029F50YU1
ref: 24-2
COVER,RADIATOR,L(YELLOW)
1777029F50YU1
€ 160.50
25-1
6866529F50KH2
ref: 25-1
TAPE,RADIATOR COVER,R
€ 89.50
25-2
6867529F50KH2
ref: 25-2
TAPE,RADIATOR COVER,L
€ 85.00
26
6866129F00GY8
ref: 26
EMBLEM,SUZUKI
6866129F00GY8
€ 23.00
27-1
1776029F60YU1
ref: 27-1
COVER,RADIATOR,R
1776029F60YU1
€ 129.00
27-2
1777029F60YU1
ref: 27-2
COVER,RADIATOR,L
1777029F60YU1
€ 93.00
28-1
6866529F60NV1
ref: 28-1
TAPE,RADIATOR COVER,R
€ 93.50
28-2
6867529F60NV1
ref: 28-2
TAPE,RADIATOR COVER,L
€ 107.00
29
0916906060
ref: 29
WASHER
0916906060
€ 2.00
30
0154706123
ref: 30
01547-0612B
BOLT
0154706123
€ 2.00
31
1783137E11
ref: 31
LOUVER,RADIATOR
1783137E11
€ 11.50
