FRONT WHEEL

DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E

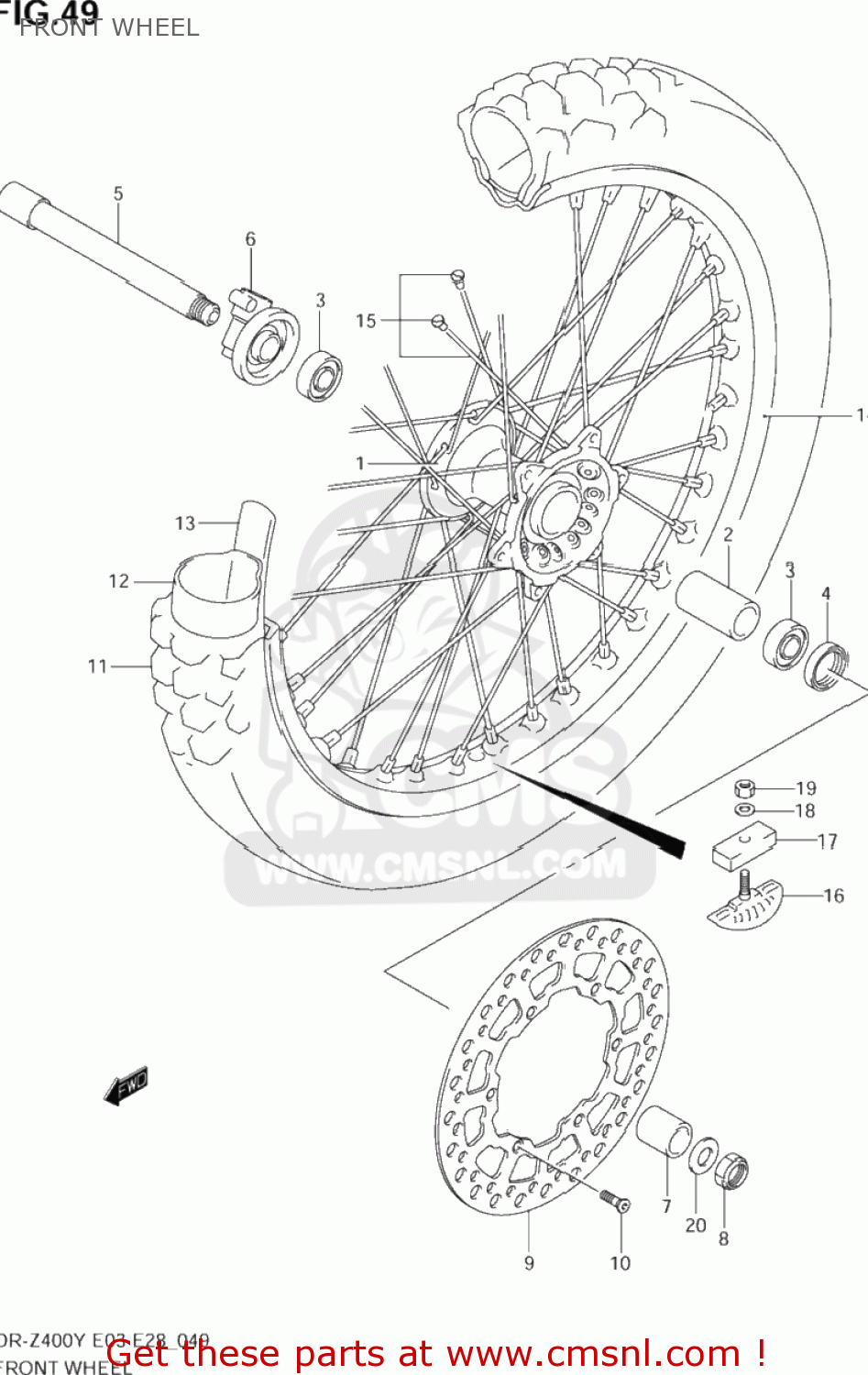

Front wheel diagram DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E

FRONT WHEEL DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E
FRONT WHEEL DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E
FRONT WHEEL DR-Z400E 2002 (K2) USA (E03) DRZ400E DR Z400E
prices are in EUR
ref
part #
description
quantity
1
5411129F00
ref: 1
HUB,FR WHEEL
€ 159.00
2
5473136E10
ref: 2
SPACER,FR HUB BEARING
5473136E10
€ 13.00
2
5473136E10
ref: 2
SPACER,FR HUB BEARING
5473136E10
€ 13.00
3
0813069047
ref: 3
BEARING
0813069047
€ 37.50
4
0928325083
ref: 4
SEAL,OIL(25X37X6)
0928325083
€ 5.00
5
5471129F00
ref: 5
AXLE,FR
€ 56.50
6
5460029F00
ref: 6
BOX ASSY,SPEEDOMETER GEAR
5460029F00
€ 70.00
7
5475136E10
ref: 7
SPACER,FR AXLE,L
5475136E10
€ 11.50
8
0915918018
ref: 8
NUT
0915918018
€ 12.00
9
5922129F00
ref: 9
DISC,FR BRAKE,L
5922129F00
€ 186.50
10
0912006011
ref: 10
09120-06014
SCREW
€ 2.50
11
5511029F00
ref: 11
TIRE,FR(80/100-21 51M)
€ 86.50
11
5511029F00
ref: 11
TIRE,FR(80/100-21 51M)
€ 86.50
12
5520029F00
ref: 12
TUBE ASSY,WHEEL INNER
5520029F00
€ 26.00
13
5526144AF0
ref: 13
PROTECTOR,WHL INR TUBE
5526144AF0
€ 3.00
14
5531136E00
ref: 14
RIM,FR WHEEL(1.60X21 AL)(.WHT)
5531136E00
€ 298.00
15
5532036E00
ref: 15
SPOKE SET,FR WHEEL
5532036E00
€ 76.50
16
6527014300
ref: 16
STOPPER,BEAD
6527014300
€ 26.00
17
6527127C00
ref: 17
CUSHION,BEAD STOPPER
6527127C00
€ 5.50
18
0832201083
ref: 18
08322-0108A
WASHER
0832201083
€ 1.50
19
0831000083
ref: 19
08310-0008A
NUT
0831000083
€ 1.50
20
0916018034
ref: 20
WASHER(18X26X2.8)
0916018034
€ 2.50
