CLUTCH
DL1000 VSTROM 2004 (K4) USA (E03)

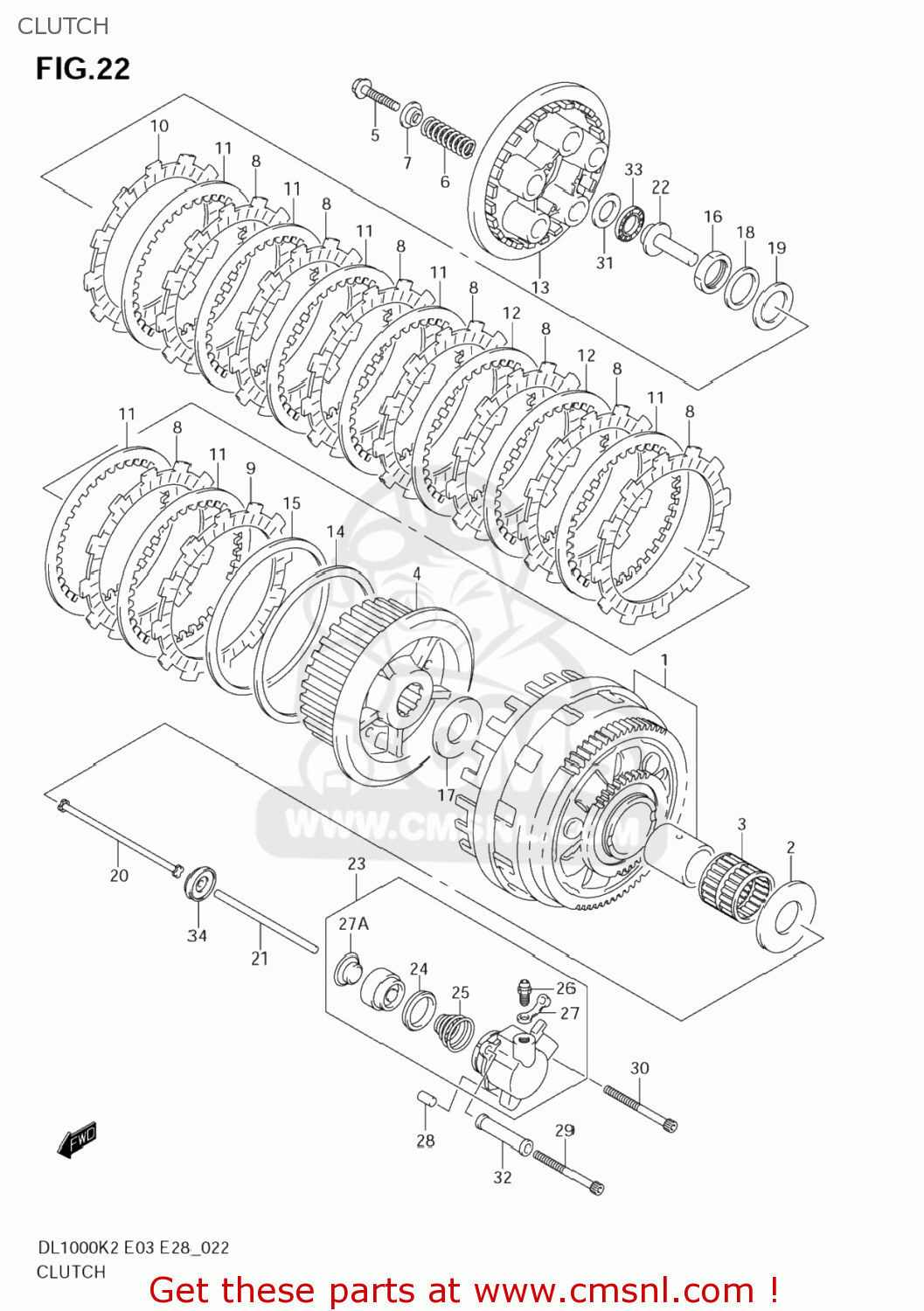

Clutch diagram DL1000 VSTROM 2004 (K4) USA (E03)
CLUTCH DL1000 VSTROM 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120006810
ref: 1-1
21200-06811
GEAR ASSY,PRIM
€ 502.50
1-1
2120006810
ref: 1-1
21200-06811
GEAR ASSY,PRIM
€ 502.50
1-2
2120006811
ref: 1-2
GEAR ASSY,PRI DRIVEN
€ 502.50
1-2
2120006811
ref: 1-2
GEAR ASSY,PRI DRIVEN
€ 502.50
2
0916025074
ref: 2
WASHER(25X52X2.5)
€ 5.00
3
0926335013
ref: 3
BEARING(35X40X39.8)
€ 29.00
4
2141006G00
ref: 4
HUB,CLUTCH SLEEVE
€ 145.50
5
2141206G00
ref: 5
BOLT,CLUTCH SPRING
€ 3.00
6-1
2141306G00
ref: 6-1
21413-06G10
SPRING,CLUTCH
€ 11.00
6-2
2141306G10
ref: 6-2
SPRING,CLUTCH
€ 11.00
7
2141429F00
ref: 7
WASHER
€ 4.50
8
2144124F20
ref: 8
21441-24F00
PLATE,CLUTCH DRIVE NO.1 (NAS)
€ 21.00
9
2144224F00
ref: 9
PLATE,CLUTCH DRIVE NO.3 (NAS)
€ 16.00
10
2144124F10
ref: 10
PLATE,CLUTCH DRIVE NO.2 (NAS)
€ 18.50
11
2145124F00
ref: 11
PLATE,CLUTCH DRIVEN NO.1(T:2.0 (NAS)
€ 7.50
12
2145124F10
ref: 12
PLATE,CLUTCH DRIVEN NO.2(T:2.3 (NAS)
€ 7.50
13
2146206G00
ref: 13
DISC,CLUTCH PRESSURE
€ 61.50
14
2147106G00
ref: 14
SEAT,WAVE WASHER
€ 10.50
15
2147206G00
ref: 15
WASHER,CLUTCH PLATE WAVE
€ 12.50
16
0915924010
ref: 16
NUT
€ 11.00
17
0916025056
ref: 17
WASHER(25X50X2.5)
€ 9.50
18
0916424006
ref: 18
WASHER
€ 4.00
19
0918125223
ref: 19
SHIM(25X38X1)
€ 3.00
20
2311027A00
ref: 20
ROD,CLUTCH
€ 17.00
21
2311126D00
ref: 21
ROD,CLUTCH PUSH,L
€ 14.00
22
2312131E00
ref: 22
PIECE,CLUTCH PUSH
€ 18.50
23
2316006G01
ref: 23
23160-06G02
CYLINDER,CLUTC
€ 92.50
24
2316306B00
ref: 24
CUP
€ 5.50
25
2316405A00
ref: 25
SPRING,CLUTCH CYLINDER
€ 3.50
26
5912101A00
ref: 26
BLEEDER
€ 8.50
27
5912201A00
ref: 27
CAP,BLEEDER
€ 4.50
27A
2316602F20
ref: 27A
COVER,DUST
€ 13.00
28
0422108149
ref: 28
PIN
€ 2.50
29
0713006653
ref: 29
07130-0665B
BOLT
€ 4.00
30
0713006703
ref: 30
07130-0670B
BOLT
€ 4.00
31
0916015045
ref: 31
WASHER(15.5X28X1)
€ 4.00
32
2317106G00
ref: 32
SPACER,CL RLSE CYL
€ 6.50
33
0926315003
ref: 33
BEARING(15X28X2)
€ 7.00
34
0928306008
ref: 34
SEAL,OIL(6X34X10.5)
€ 13.00
