DL1000 VSTROM 2004 (K4) USA (E03)

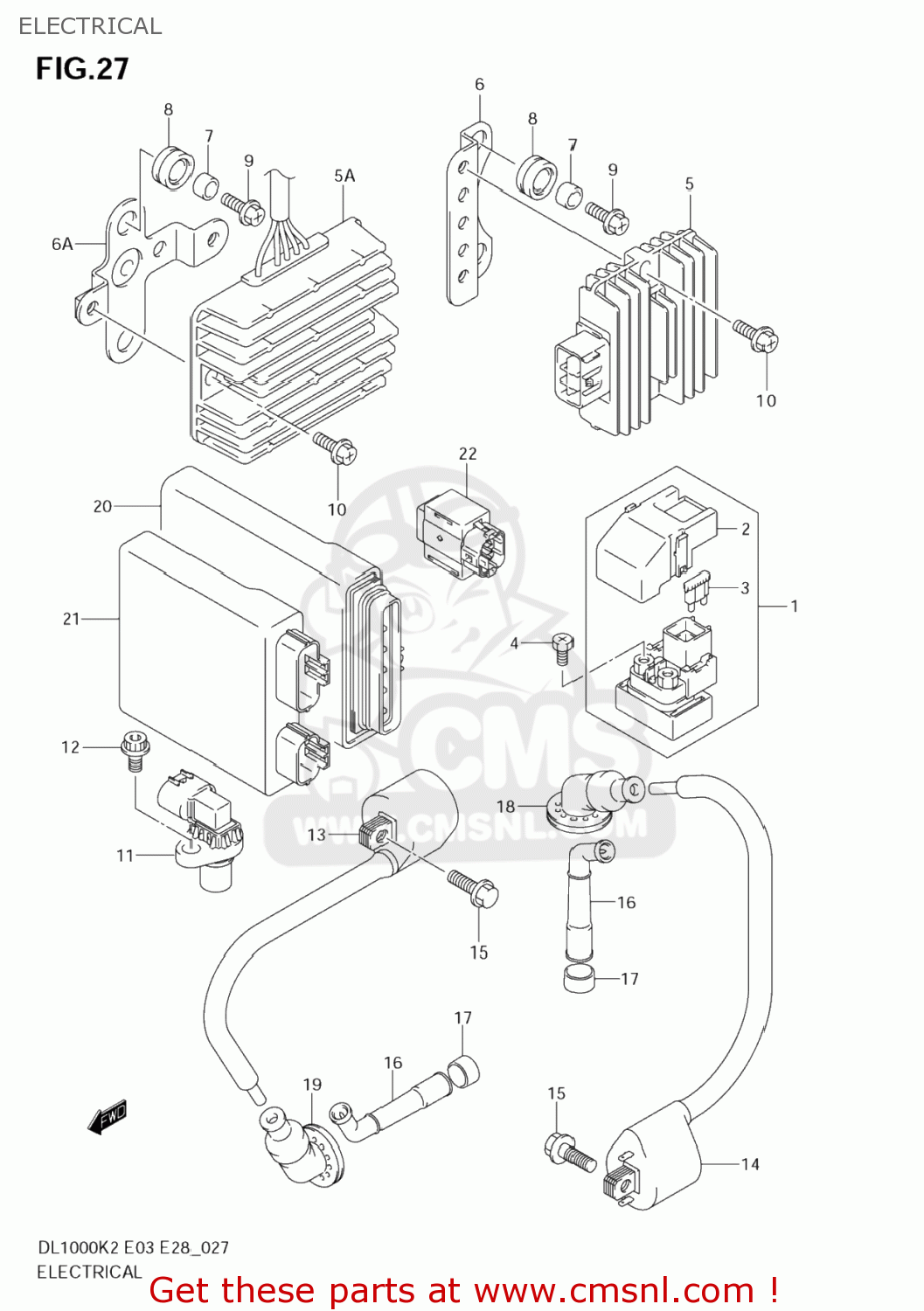

Electrical diagram DL1000 VSTROM 2004 (K4) USA (E03)
ELECTRICAL DL1000 VSTROM 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180006G00
ref: 1
RELAY ASSY,STARTING MOTOR
€ 78.50
2
3186147E00
ref: 2
COVER
€ 10.50
3
0948130101
ref: 3
FUSE(30A)
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
€ 1.50
5
3280042F00
ref: 5
RECTIFIER ASSY
€ 262.50
5A
3280006G00
ref: 5A
32800-06G01
RECTIFIER ASSY
€ 328.50
6
3283106G00
ref: 6
BRACKET,RECT FTG
€ 5.00
6A
3283106G10
ref: 6A
BRACKET,RECT FTG
€ 7.00
7
0918006258
ref: 7
SPACER(6.5X9X6.7)
€ 3.00
8
0932009036
ref: 8
CUSHION
€ 4.00
9
0216206203
ref: 9
02162-0620C
BOLT
€ 2.00
10
0216206203
ref: 10
02162-0620C
BOLT
€ 2.00
11
3322080G00
ref: 11
SENSOR ASSY,CRANK POSITION
€ 91.50
12
0713006163
ref: 12
07130-0616B
BOLT,OIL FILLE
€ 3.00
13
3341006G00
ref: 13
COIL ASSY,IGNITION
€ 79.00
14
3342006G00
ref: 14
COIL ASSY,IGNITION
€ 112.50
15
0154706203
ref: 15
01547-0620B
SCREW
€ 2.50
16-1
3351011D00
ref: 16-1
CAP,SPARK PLUG
€ 38.00
16-2
3351017G00
ref: 16-2
CAP ASSY,SPARK PLUG
€ 28.50
17
3354123E01
ref: 17
SEAL,SPARK PLUG CAP
€ 7.00
18
3354206G00
ref: 18
SEAL,HIGH TENSION CORD RR
€ 5.50
19
3354206G10
ref: 19
SEAL,HIGH TENSION CORD FR
€ 5.50
20
3292006G20
ref: 20
32920-06G21
CONTROLER
€ 1,326.00
21-1
3292006G60
ref: 21-1
32920-06G61
CONTROL UNIT,FI
€ 832.00
21-2
3292006G70
ref: 21-2
32920-06G71
CONTROL UNIT,FI
€ 963.00
21-3
3292006G70
ref: 21-3
32920-06G71
CONTROL UNIT,FI
€ 963.00
22-1
3396006G00
ref: 22-1
SENSOR ASSY,FUEL CUT
€ 112.00
22-2
3396006G10
ref: 22-2
SENSOR ASSY,FUEL CUT
€ 75.00
