MAGNETO

DL1000 VSTROM 2004 (K4) USA (E03)

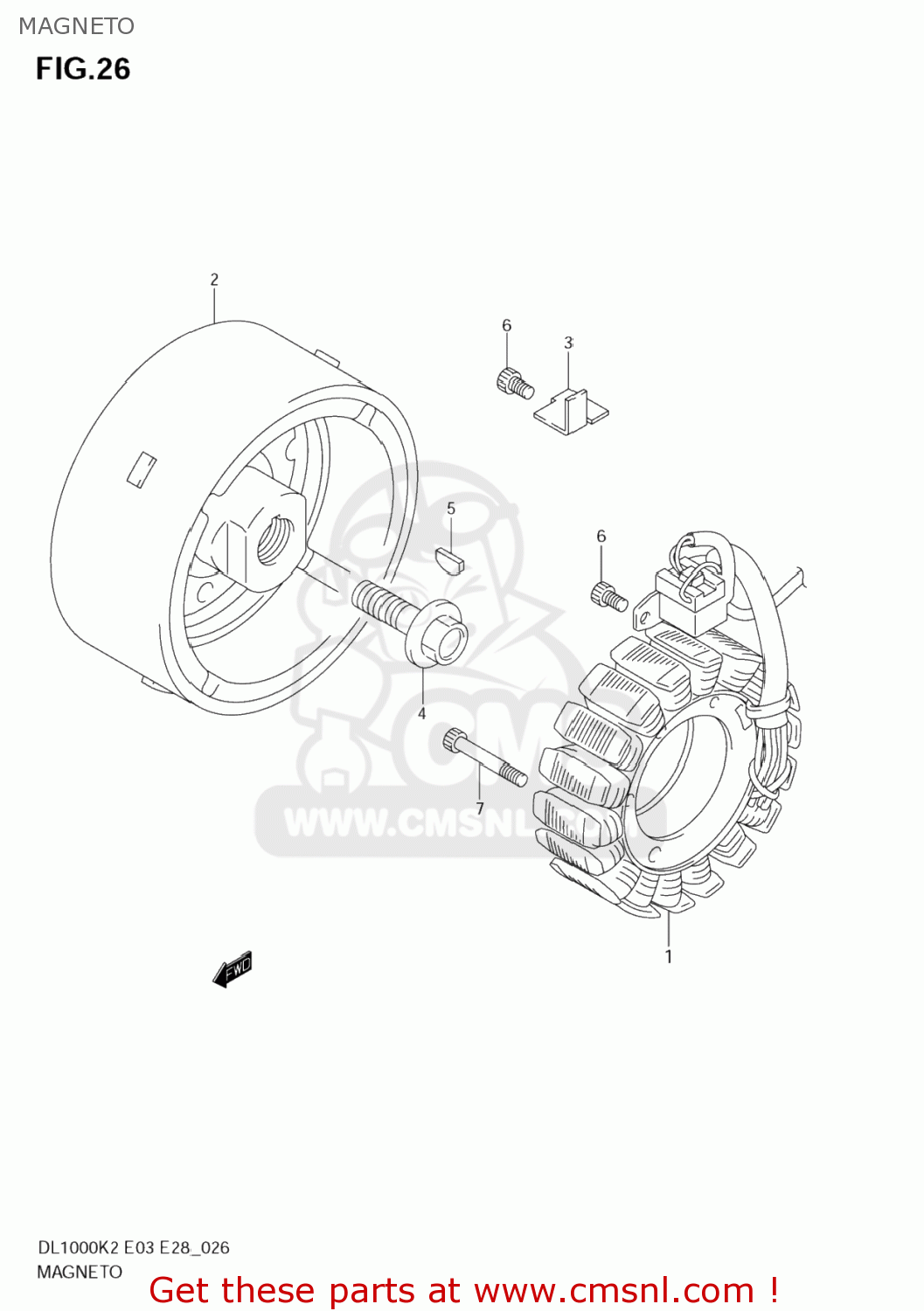

Magneto diagram DL1000 VSTROM 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3210106G00
ref: 1-1

STARTER ASSY

€ 598.50

1-2

3210106G10
ref: 1-2
32101-06G11

STATOR ASSY,MA

€ 575.00

2-1

3210206G00
ref: 2-1
K2

ROTOR ASSY

€ 436.50

2-2

3210206G10
ref: 2-2

ROTOR ASSY

€ 537.00

3237113E00
ref: 3

CLAMP,MAGNETO LEAD NO.1

€ 3.00

3249106G00
ref: 4

BOLT,MAGNETO ROTOR

€ 7.50

0942004008
ref: 5

KEY

€ 3.50

0713005103
ref: 6
07130-0510B

BOLT

€ 2.00

0713006353
ref: 7
07130-0635B

BOLT

€ 3.50
