FUEL DELIVERY PIPE

DL1000 VSTROM 2004 (K4) USA (E03)

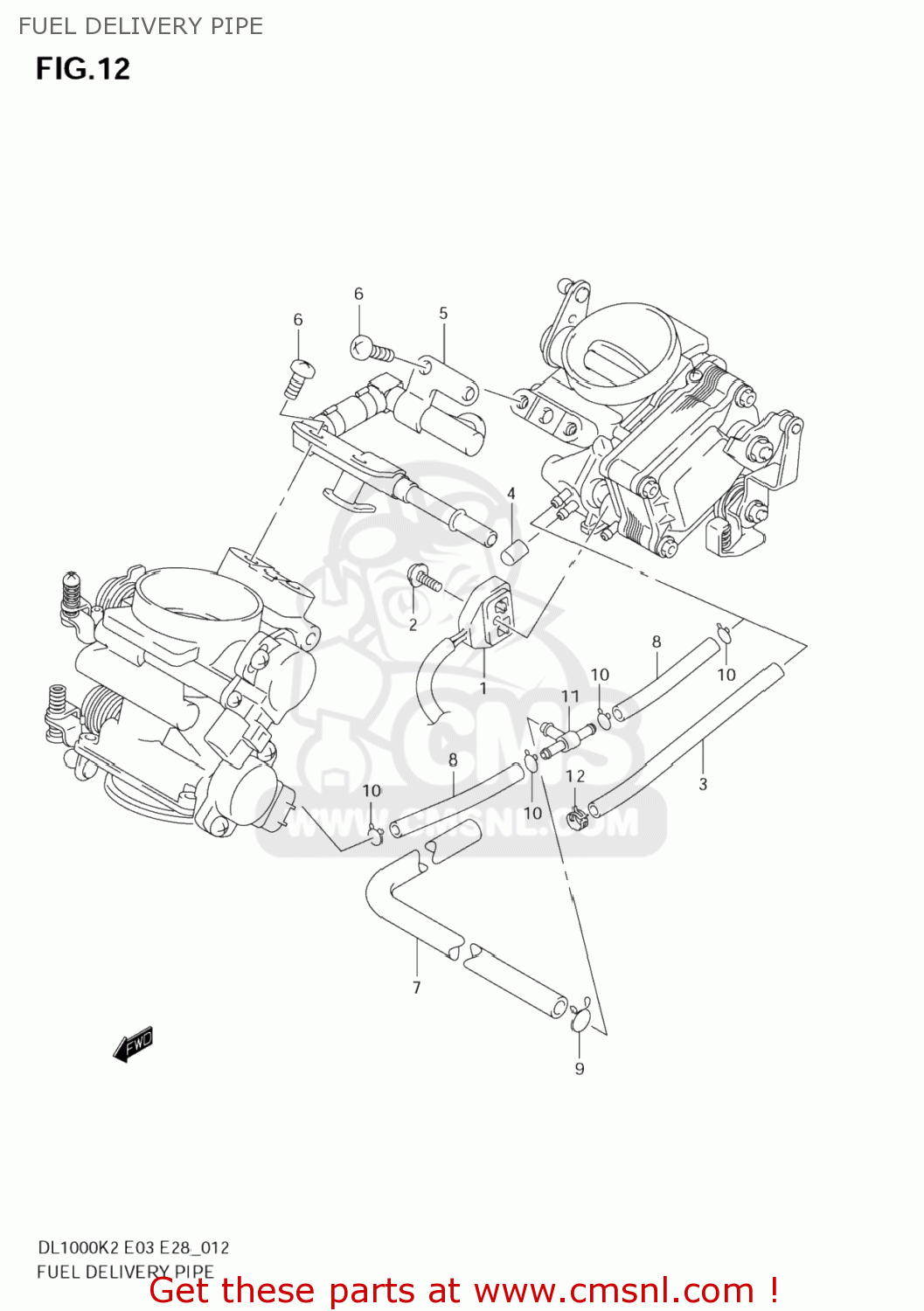

Fuel delivery pipe diagram DL1000 VSTROM 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1347739F00
ref: 1

HARNESS ASSY

€ 53.00

0211234163
ref: 2
02112-3416B

SCREW

€ 3.00

1368310F60
ref: 3

HOSE(L:425)

€ 11.00

1327484000
ref: 4

CAP

€ 5.50

1573006G00
ref: 5
15730-06G01

DELIVERY PIPE

€ 307.50

1360206128
ref: 6

SCREW

€ 2.50

1368306G10
ref: 7
13683-06G11

HOSE

€ 50.00

1368139F00225
ref: 8

HOSE(3.2X7.4X225)

€ 11.50

0940110410
ref: 9
09401-10401

CLIP

€ 1.50

0940106101
ref: 10

CLIP

€ 2.50

1368504F10
ref: 11

NIPPLE

€ 6.50

0940109403
ref: 12

CLIP

€ 2.50
