THROTTLE BODY
DL1000 VSTROM 2004 (K4) USA (E03)

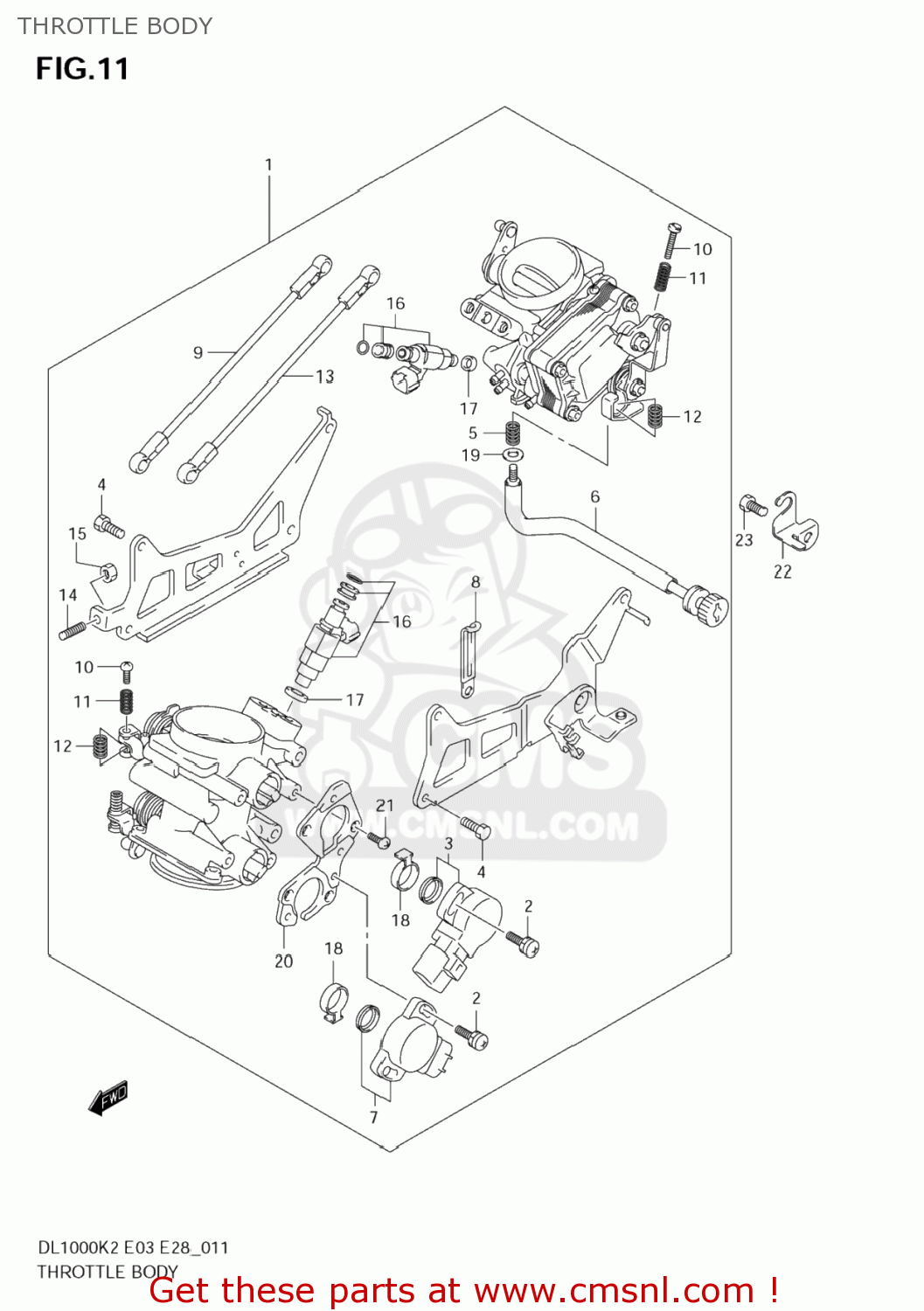

Throttle body diagram DL1000 VSTROM 2004 (K4) USA (E03)
THROTTLE BODY DL1000 VSTROM 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1340506G20
ref: 1-1
13405-06G22
BODY ASSY,THROTTLE
€ 925.50
1-2
1340506G21
ref: 1-2
13405-06G22
INJECTION ASSY
€ 925.50
1-3
1340506G50
ref: 1-3
13405-06G51
INJECTION ASSY
€ 911.00
1-4
1340506G10
ref: 1-4
13405-06G11
BODY ASSY,THROTTLE
€ 571.50
1-5
1340506G11
ref: 1-5
INJECTION ASSY
€ 571.50
1-6
1340506G40
ref: 1-6
13405-06G41
INJECTION ASSY
€ 911.00
2
1360502F00
ref: 2
SCREW
€ 3.00
3
1358006G00
ref: 3
SENSOR ASSY
€ 125.50
4
1361202F00
ref: 4
BOLT
€ 3.50
5
1327193011
ref: 5
SPRING
€ 4.50
6
1327006G00
ref: 6
SCREW ASSY,ADJUST
€ 82.50
7
1358002F00
ref: 7
SENSOR ASSY,THROTTLE
€ 118.50
8
0940406429
ref: 8
CLAMP(L:45)
€ 2.50
9
1355206G10
ref: 9
ROD ASSY
€ 26.50
10
1354842F00
ref: 10
SCREW
€ 3.50
11
1327144B00
ref: 11
SPRING
€ 4.00
12
1326889J00
ref: 12
SPRING
€ 6.00
13
1355206G00
ref: 13
ROD ASSY
€ 20.00
14
1360506G00
ref: 14
SCREW,ADJUST
€ 5.00
15
1360747070
ref: 15
NUT
€ 4.00
16
1571006G00
ref: 16
INJECTOR ASSY
€ 311.00
17
1367233E00
ref: 17
CUSHION,FUEL INJECTOR
€ 12.50
18
1331106G00
ref: 18
RING
€ 6.50
19
1338609410
ref: 19
WASHER
€ 2.50
20
1362706G00
ref: 20
PLATE
€ 31.00
21
0211204107
ref: 21
SCREW
€ 2.00
22
1327906G00
ref: 22
PLATE,IDLE ADJUST
€ 5.50
23
0150006123
ref: 23
01500-0612A
BOLT
€ 2.00
