HEADLAMP

DL1000 VSTROM 2004 (K4) USA (E03)

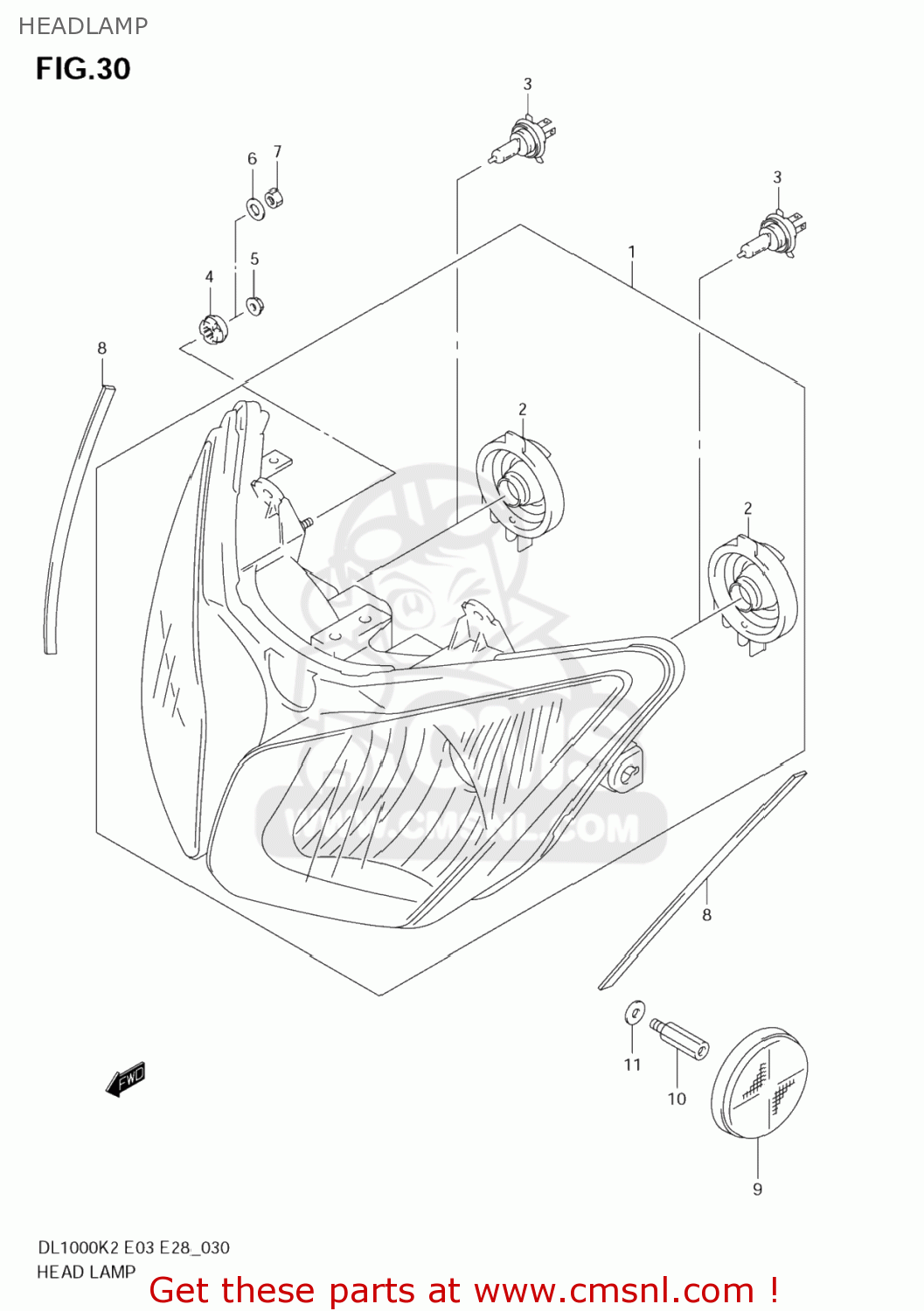

Headlamp diagram DL1000 VSTROM 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

3510006G30999
ref: 1

HEADLAMP ASSY

€ 515.50

3512577A00
ref: 2

COVER,SOCKET

€ 12.00

0947112182
ref: 3

BULB(12V60/55W,H4)

€ 8.00

0932009010
ref: 4

CUSHION

€ 2.50

0915906086
ref: 5

NUT

€ 2.50

0916006088
ref: 6

WASHER(6.5X20X1.6)

€ 2.00

0831000063
ref: 7
08310-0006A

NUT 6MM

€ 2.00

3365206G10
ref: 8

CUSHION,HEADLAMP

€ 3.50

3595014A00
ref: 9

REFLECTOR,REFLEX FR

€ 15.00

0911905023
ref: 10

BOLT(5X10)

€ 7.50

0832201053
ref: 11
08322-0105A

WASHER

€ 2.50
