CRANKSHAFT
DL1000 VSTROM 2004 (K4) USA (E03)

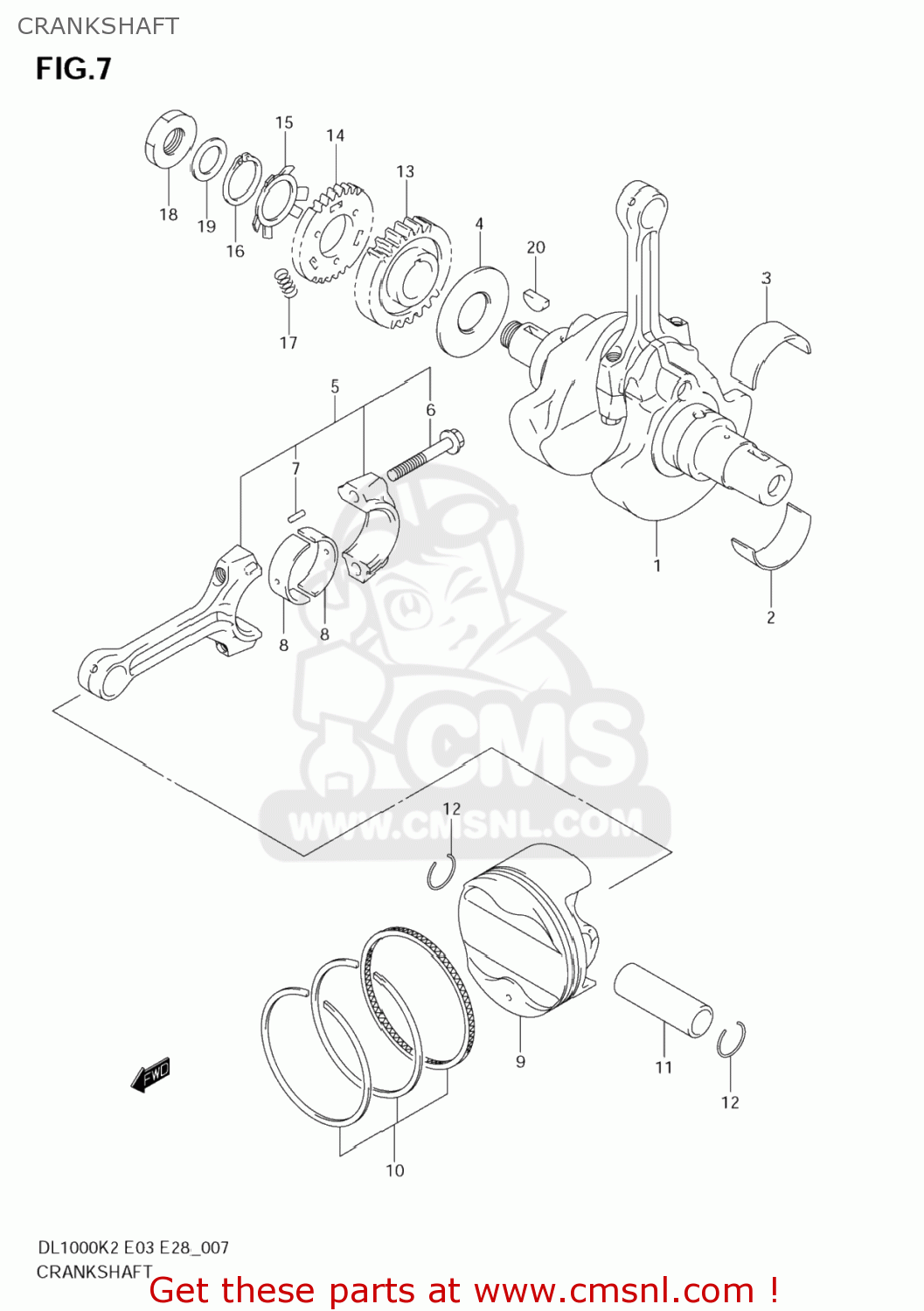

Crankshaft diagram DL1000 VSTROM 2004 (K4) USA (E03)
CRANKSHAFT DL1000 VSTROM 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1222006G00
ref: 1
CRANKSHAFT
€ 1,672.50
2-1
1222916G000A0
ref: 2-1
BEARING,CRANKSHAFT
€ 25.00
2-2
1222916G000B0
ref: 2-2
BEARING,CRANKSHAFT
€ 25.00
2-3
1222916G000C0
ref: 2-3
BEARING,CRANKSHAFT
€ 25.00
3-1
1222916G000A0
ref: 3-1
BEARING,CRANKSHAFT
€ 25.00
3-2
1222916G000B0
ref: 3-2
BEARING,CRANKSHAFT
€ 25.00
3-3
1222916G000C0
ref: 3-3
BEARING,CRANKSHAFT
€ 25.00
4
1265238B00
ref: 4
WASHER,CRANK THRUST
€ 54.50
5
1216006G00
ref: 5
CONNECTING ROD ASSY
€ 222.00
6
1216306G00
ref: 6
BOLT,CONNECTING ROD
€ 12.00
7
1216527A50
ref: 7
PIN,CONNECTING ROD
€ 1.00
8-1
1216402F110A0
ref: 8-1
12164-02F12-0A0
BEARING,CRANK PIN
€ 23.00
8-2
1216402F110B0
ref: 8-2
12164-02F12-0B0
BEARING,CRANK PIN
€ 23.50
8-3
1216402F110C0
ref: 8-3
12164-02F12-0C0
BEARING,CRANK PIN
€ 23.50
8-4
1216402F110D0
ref: 8-4
12164-02F12-0D0
BEARING,CRANK PIN
€ 23.00
9
1211106G000F0
ref: 9
PISTON
€ 172.50
10
1214002F42
ref: 10
RING SET,PISTON
€ 84.00
11
1215102F00
ref: 11
PIN,PISTON
€ 21.50
12
0938122002
ref: 12
CIRCLIP
€ 1.50
13-1
2111102F20
ref: 13-1
GEAR,PRIMARY DRIVE
€ 90.00
13-2
2111102F11
ref: 13-2
GEAR,PRIMARY DRIVE
€ 91.50
14
2111202F00
ref: 14
GEAR,PRIMARY DRIVE SCISSORS
€ 72.50
15
2111402F00
ref: 15
WASHER,PRI DRIVE
€ 5.50
16
0833131406
ref: 16
08331-3140A
CIRCLIP
€ 2.50
17
0944007001
ref: 17
SPRING
€ 2.00
18
0914022012
ref: 18
NUT
€ 7.50
19
0916422007
ref: 19
WASHER
€ 5.00
20
0942006001
ref: 20
KEY
€ 5.50
