BATTERY HOLDER

DL650 VSTROM 2008 (K8) USA (E03)

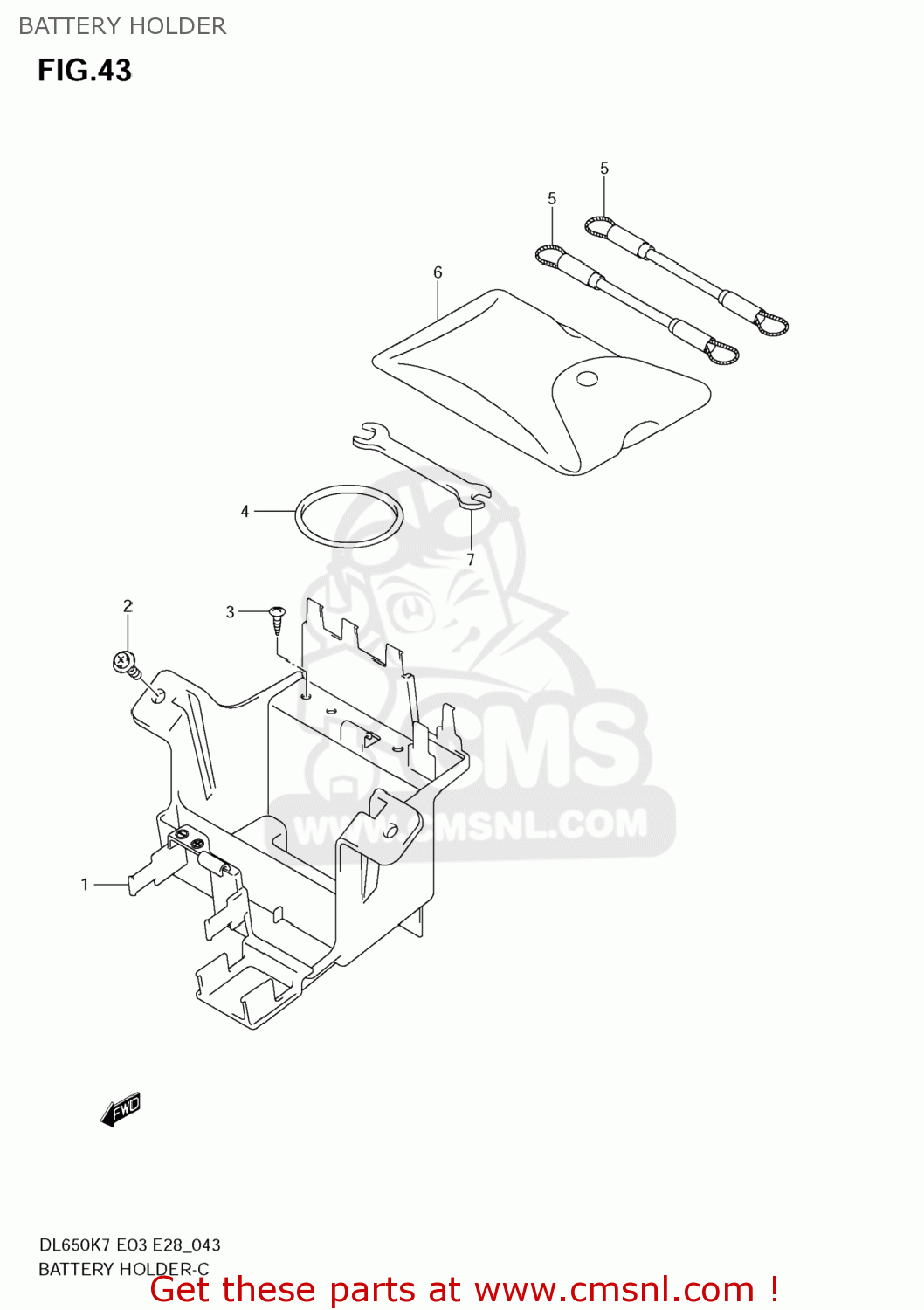

Battery holder diagram DL650 VSTROM 2008 (K8) USA (E03)

BATTERY HOLDER DL650 VSTROM 2008 (K8) USA (E03)

BATTERY HOLDER DL650 VSTROM 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4743127GA0
ref: 1

HOLDER,BATTERY

€ 36.00

2

6316143E00
ref: 2

BOLT

€ 3.00

3-1

035410516A
ref: 3-1

SCREW

€ 1.50

3-2

035410516B
ref: 3-2

SCREW

€ 2.00

4

0928061002
ref: 4

O RING(D:3.5,ID:61)

€ 5.00

5

9574006G00
ref: 5

CABLE,HELMET LOCK

€ 22.50

6

0980021035
ref: 6

TOOL ASSY

€ 28.50

7

0981300027
ref: 7

OPEN SPANNER(8X10)

€ 3.00
