WIRING HARNESS (DL650K8/K9)

DL650 VSTROM 2008 (K8) USA (E03)

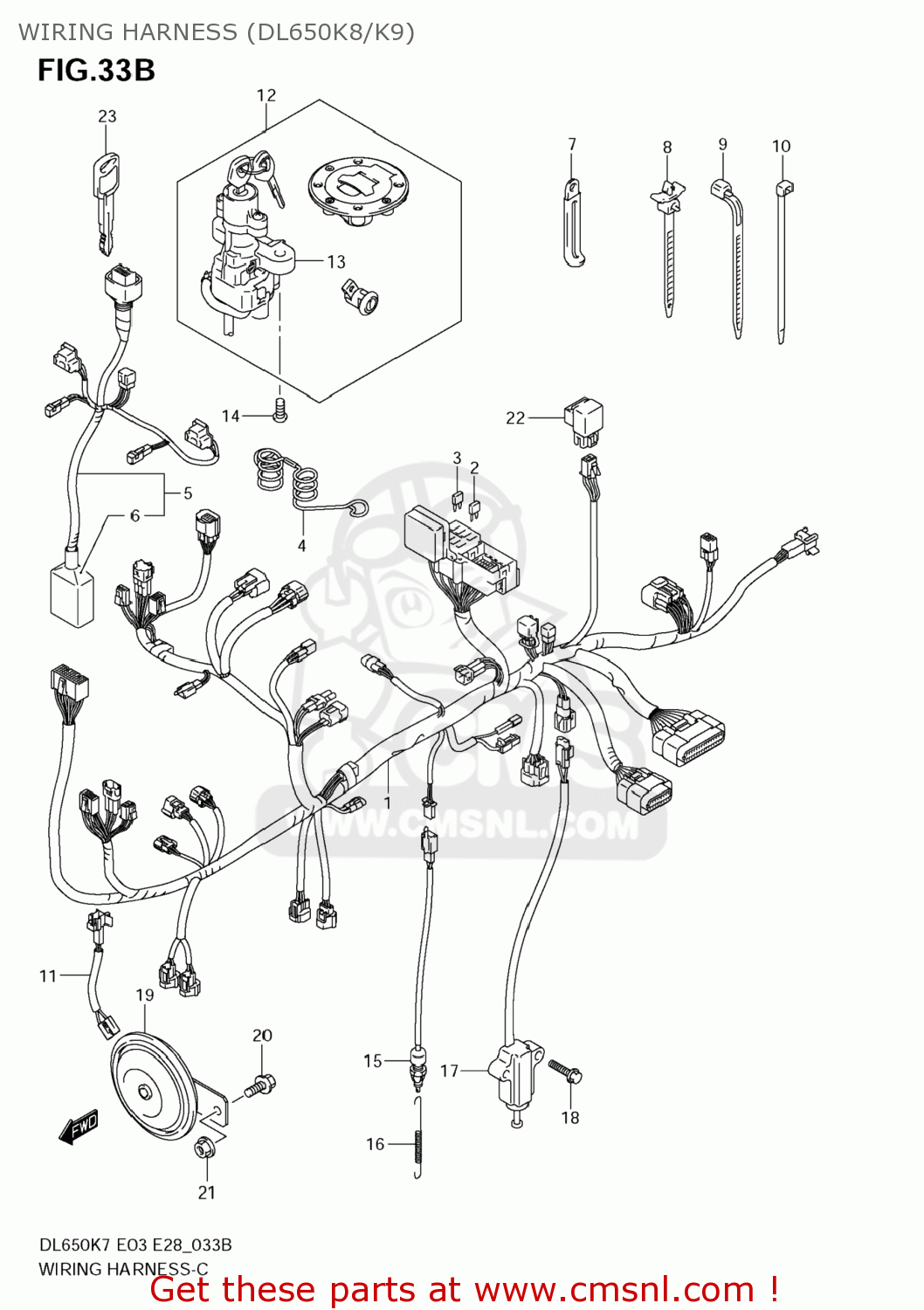

Wiring harness (dl650k8/k9) diagram DL650 VSTROM 2008 (K8) USA (E03)

WIRING HARNESS (DL650K8/K9) DL650 VSTROM 2008 (K8) USA (E03)

WIRING HARNESS (DL650K8/K9) DL650 VSTROM 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3661027GF0
ref: 1

HARNESS,WIRING NO.1

€ 568.50

2

0948110501
ref: 2

FUSE(10A)

€ 3.00

3

0948115501
ref: 3

FUSE(15A)

€ 1.00

4

3661906G01
ref: 4

GUIDE,WIRING HARNESS

€ 17.50

5

3662027G80
ref: 5

HARNESS,WIRING NO.2

€ 281.50

6

3661818G10
ref: 6

COVER,CONNECTOR

€ 8.00

7-1

0940406429
ref: 7-1

CLAMP(L:45)

€ 2.50

7-2

0940406433
ref: 7-2

CLAMP(L:80)

€ 3.00

8

0940714408
ref: 8
09407-17402

CLAMP(L:120)

€ 5.00

9-1

0940711401
ref: 9-1

CLAMP(L:95)

€ 2.50

9-2

0940714403
ref: 9-2

CLAMP(L:125)

€ 2.50

10

0940714407
ref: 10

CLAMP(L:145)

€ 4.00

11

3685206G00
ref: 11

WIRE,HORN LEAD

€ 16.00

12-1

3700027860
ref: 12-1

LOCK SET

€ 523.00

12-2

3700027870
ref: 12-2

LOCK SET

€ 0.00

13

3710027G00
ref: 13

LOCK ASSY,STEERING

€ 211.00

14

0913908016
ref: 14

BOLT(8X20)

€ 3.50

15

3774045D00
ref: 15
37740-31D00

SWITCH ASSY,STOP LAMP

€ 20.50

16

0944306012
ref: 16

SPRING

€ 3.00

17

3784006G00
ref: 17

SWITCH ASSY,SIDE STAND

€ 67.00

18

015500616B
ref: 18

BOLT

€ 2.50

19

3850027G00
ref: 19

HORN ASSY

€ 80.00

20

015500812B
ref: 20

BOLT

€ 3.50

21

083161008B
ref: 21

NUT

€ 3.00

22

3874024X50
ref: 22

RELAY ASSY

€ 37.50

23

3714633E00
ref: 23

KEY,BLANK

€ 13.00
