MAGNETO (MODEL K8/K9)

DL650 VSTROM 2008 (K8) USA (E03)

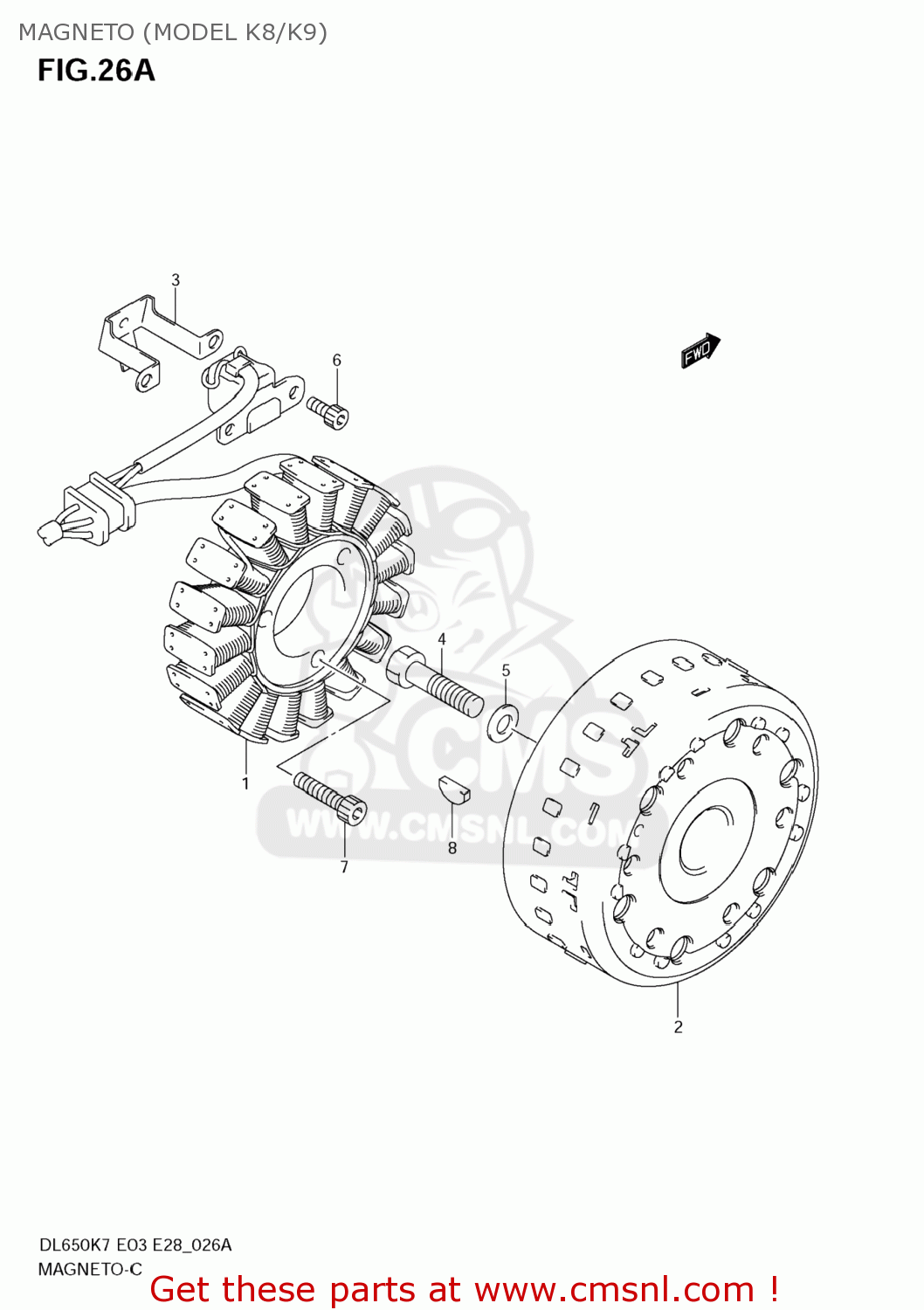

Magneto (model k8/k9) diagram DL650 VSTROM 2008 (K8) USA (E03)

MAGNETO (MODEL K8/K9) DL650 VSTROM 2008 (K8) USA (E03)

MAGNETO (MODEL K8/K9) DL650 VSTROM 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210117G10
ref: 1
32101-17G11

STATOR ASSY

€ 432.50

2

3210217G10
ref: 2

ROTOR ASSY

€ 433.00

3

3237119F00
ref: 3

CLAMP,MAGNETO LEAD

€ 6.00

4

0910312004
ref: 4

BOLT(12X40)

€ 3.00

5

0916012036
ref: 5

WASHER(12X30X3)

€ 3.00

6

071300512A
ref: 6

BOLT

€ 2.50

7

071300635A
ref: 7

BOLT

€ 1.50

8

0942004008
ref: 8

KEY

€ 3.50
