OIL COOLER

DL650 VSTROM 2008 (K8) USA (E03)

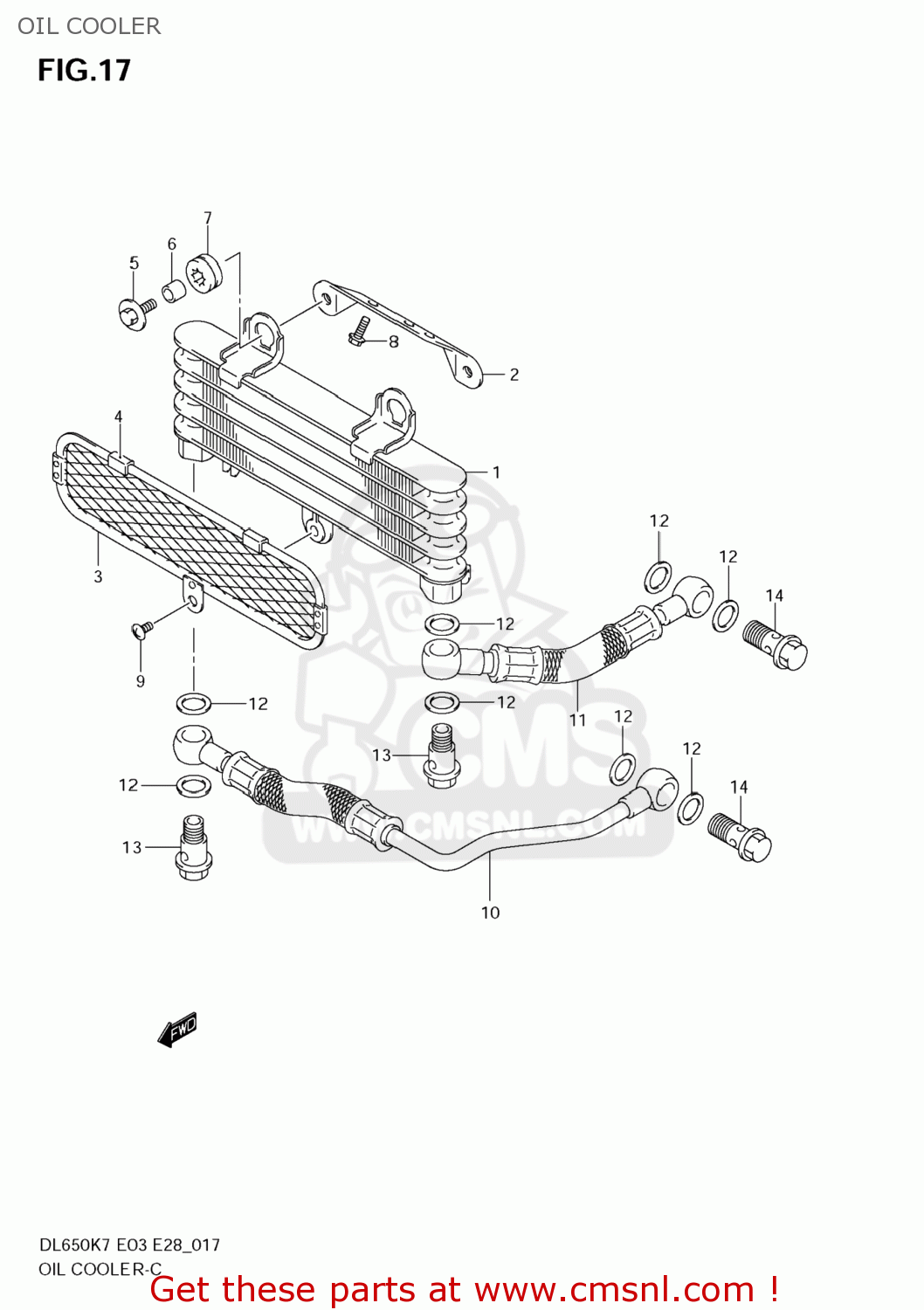

Oil cooler diagram DL650 VSTROM 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1660027G00
ref: 1

COOLER ASSY,OIL

€ 760.00

1662027G00
ref: 2

BRACKET,OIL COOLER

€ 8.50

1665027G01
ref: 3

GUARD,OIL COOLER

€ 33.00

1776509F00
ref: 4

PROTECTOR,CTR

€ 2.50

0911606167
ref: 5

BOLT(6X20)

€ 2.00

0918006310
ref: 6

SPACER(6.5X10X10)

€ 2.00

0932010055
ref: 7

CUSHION

€ 3.50

015500616A
ref: 8

BOLT

€ 2.50

021420510A
ref: 9
02142-0510B

SCREW

€ 2.50

1646017G00
ref: 10

HOSE,OIL COOLER,R

€ 132.50

1647017G00
ref: 11

HOSE,OIL COOLER,L

€ 103.50

0916814015
ref: 12

GASKET(14X20X1.5) (NAS)

€ 1.50

0936012012
ref: 13
09360-12012-A05

BOLT UNION

€ 8.00

0936014012
ref: 14

BOLT UNION

€ 10.00
