CYLINDER

DL650 VSTROM 2008 (K8) USA (E03)

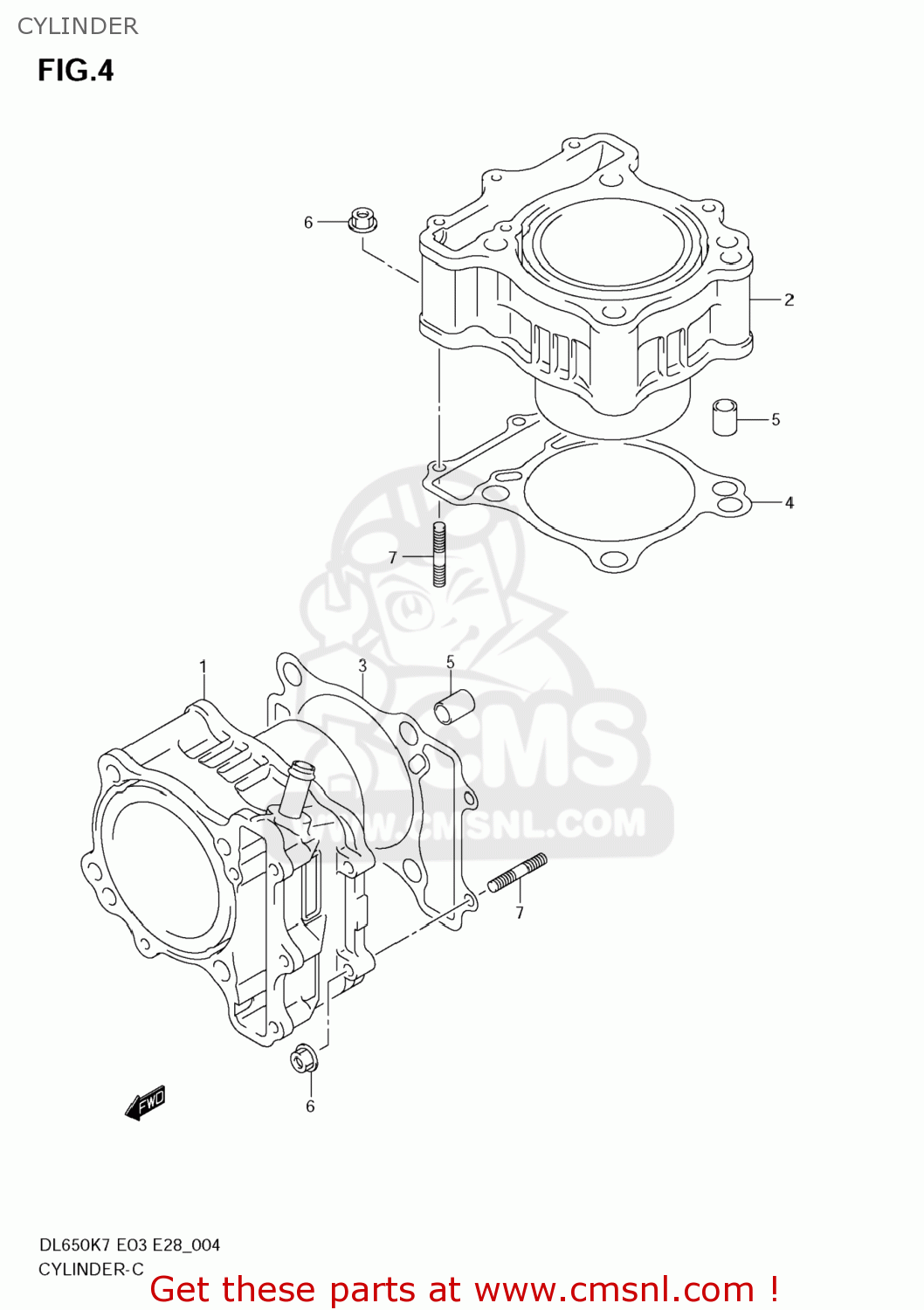

Cylinder diagram DL650 VSTROM 2008 (K8) USA (E03)

CYLINDER DL650 VSTROM 2008 (K8) USA (E03)

CYLINDER DL650 VSTROM 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121020F300F0
ref: 1

CYLINDER,FR

€ 620.00

2

1122020F200F0
ref: 2

CYLINDER,RR

€ 620.00

3

1124119F00
ref: 3

GASKET,CYLINDER FR (NAS)

€ 11.50

4

1124219F00
ref: 4

GASKET,CYLINDER RR (NAS)

€ 11.00

5

0421113189
ref: 5

PIN

€ 2.50

6

083161006B
ref: 6

NUT

€ 2.50

7

014210625B
ref: 7

BOLT,STUD

€ 2.50
