THROTTLE BODY

DL650 VSTROM 2008 (K8) USA (E03)

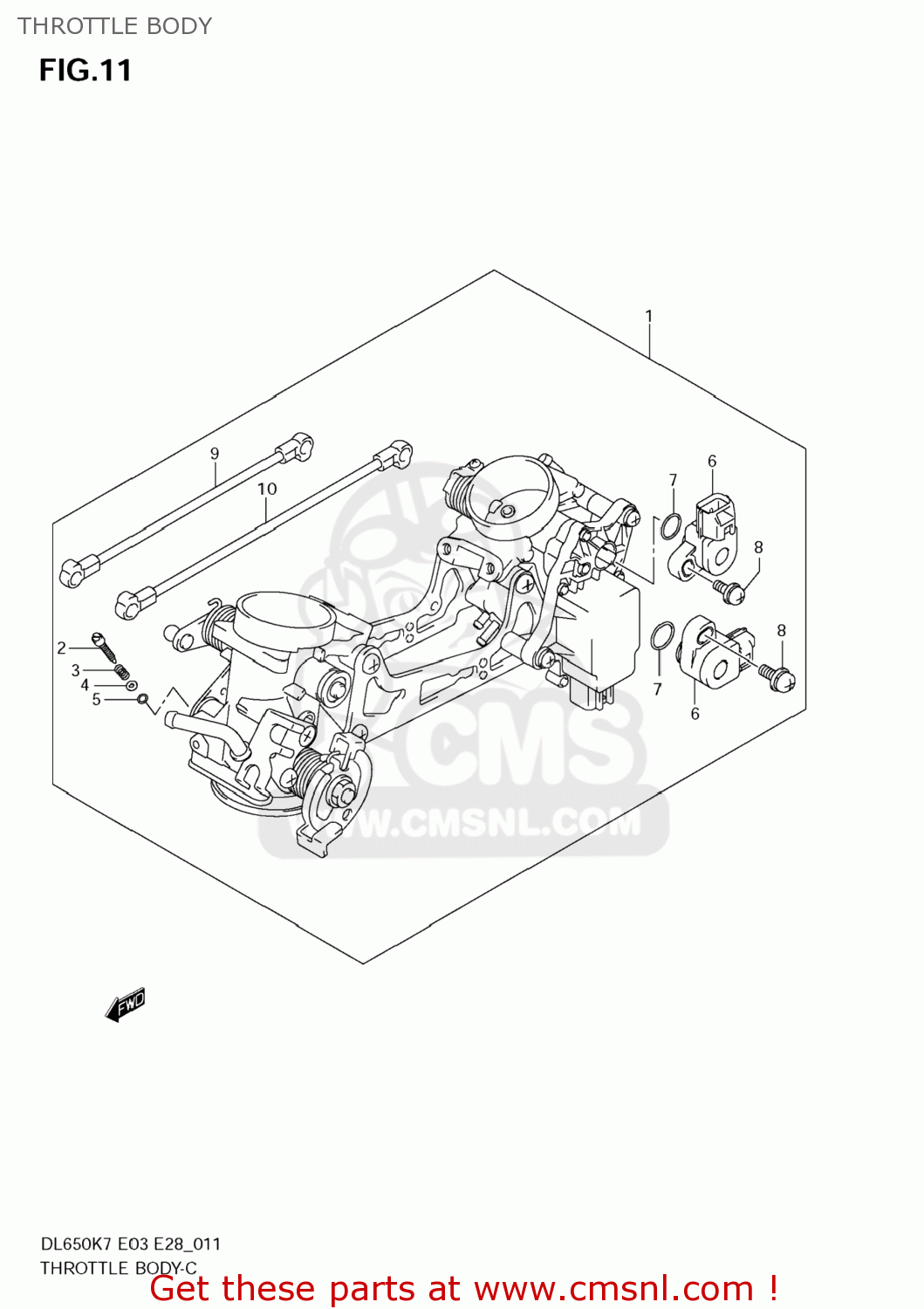

Throttle body diagram DL650 VSTROM 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1340527G20
ref: 1-1

BODY ASSY,THROTTLE

€ 1,413.00

1-2

1340527G30
ref: 1-2

BODY ASSY,THROTTLE

€ 824.50

1326933E00
ref: 2

SCREW

€ 8.50

1326848700
ref: 3

SPRING,THROTTLE SCREW

€ 3.50

1360647A00
ref: 4

WASHER

€ 2.00

1329529900
ref: 5

O RING,PILOT AIR SCREW

€ 4.00

1358027G20
ref: 6
13580-27G21

SENSOR

€ 101.50

1357529G00
ref: 7

O RING

€ 3.00

1360502F00
ref: 8

SCREW

€ 3.00

1355217G00
ref: 9

ROD ASSY

€ 24.00

1355216G00
ref: 10

ROD ASSY

€ 24.50
