CARRIER

DL650 VSTROM 2008 (K8) USA (E03)

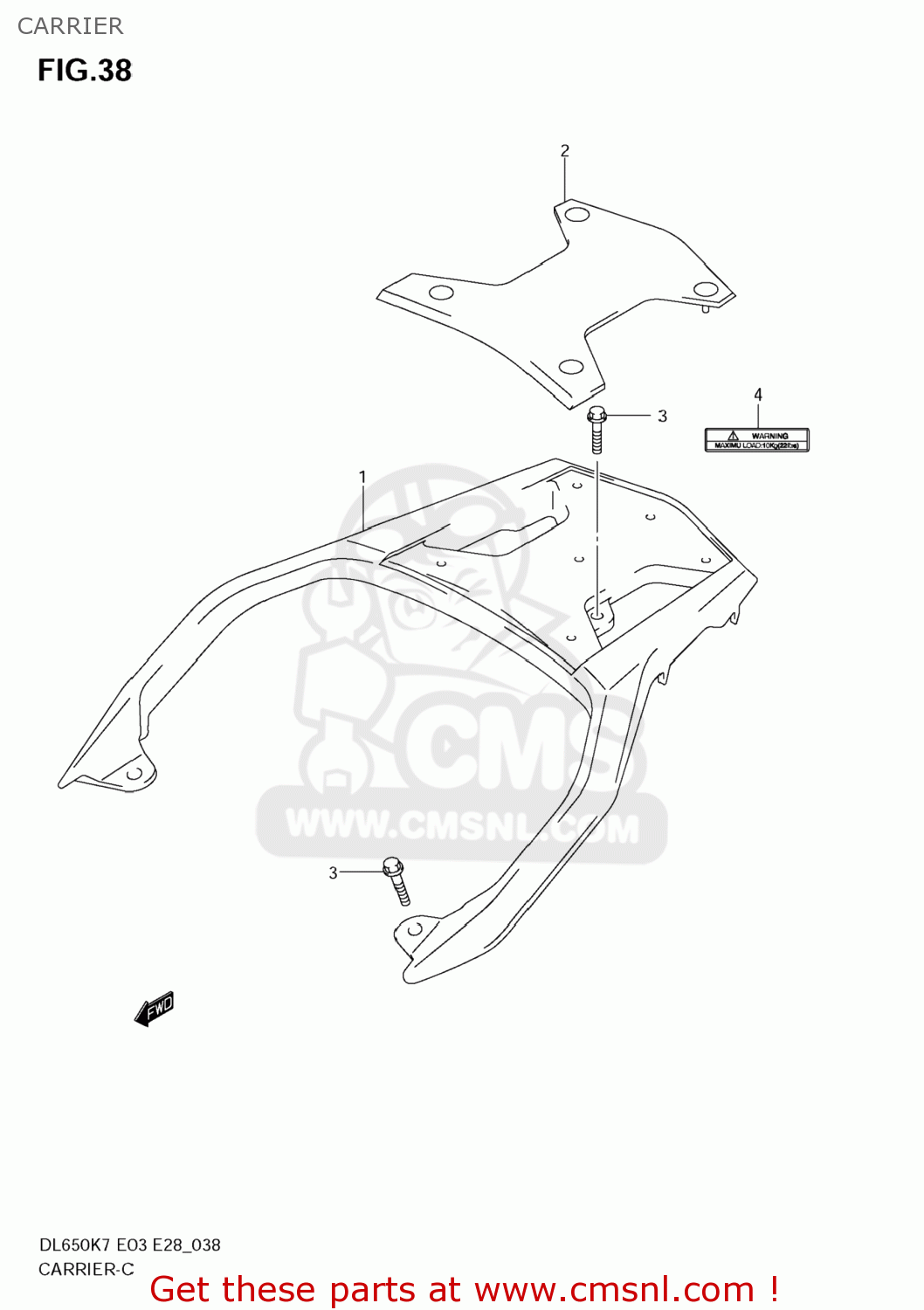

Carrier diagram DL650 VSTROM 2008 (K8) USA (E03)

CARRIER DL650 VSTROM 2008 (K8) USA (E03)

CARRIER DL650 VSTROM 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4631106G00YKV
ref: 1

CARRIER,SPORT

€ 234.00

2

4632106G00
ref: 2

MAT,SPORT CARRIER

€ 24.00

3

0910308391
ref: 3

BOLT(8X35)

€ 3.00

4-1

6839106G00
ref: 4-1

LABEL,WARNING LUGGAGE CARRIER

€ 7.50

4-2

6839106G10
ref: 4-2

LABEL,CARRIER

€ 5.00
